Danfoss H956808BK-100

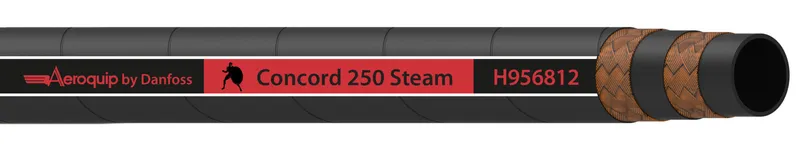

HOSE-BOS, H9568, -8, STEAM, BK, 100FT

MPN
H956808BK-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H956808BK-100?

Danfoss HOSE-BOS, H9568, -8, STEAM, BK, 100FT, manufacturer part number H956808BK-100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789278746
Abrasion resistanceStandard
ApplicationSteam service
Bend radius min (inch)7.000
Bend radius min (mm)177.800
BrandBoston by Danfoss
Burst pressure (bar)172
Burst pressure (psi)2500
ColorBlack
CompliancesASTM D380
Construction2 Wire Braid
Cover materialEPDM
Inside diameter (inch)0.50
Inside diameter (mm)12.70
Lay line styleInk transfer
Length (in)1200.00000
Length (mm)30480.00000
Outside diameter (inch)1.03
Outside diameter (mm)26.16
Package formReel
Product height in0.500
Product height mm12.700
Product width in0.500
Product width mm12.700 mm
Qualified hose fittingsEJ Series
Reinforcement materialBrass plated steel wire
SeriesH9568 Concord 250 Steam
Size-8
Tube materialEPDM
Tube wall thickness (inch)0.27
Tube wall thickness (mm)6.73
Working pressure max (bar)17
Working pressure max (psi)250
Working temperature max (C)208
Working temperature max (F)406.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H956808BK-100: frequently asked questions

When can H956808BK-100 be shipped?

H956808BK-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H956808BK-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H956808BK-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H956808BK-100, subject to availability and destination.
