Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (mm) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EHF002-40GY | 11.020 | 280.000 | 63.50 | 3.09 | 78.50 |
| EHF002-40BU | 11.020 | 280.000 | 63.50 | 3.09 | 78.50 |
| EHF002-32GY-100 | 6.300 | 160.000 | 50.80 | 2.60 | 66.04 |
| EHF002-32GY | 6.300 | 160.000 | 50.80 | 2.60 | 66.00 |
| EHF002-32BU-M61 | 6.300 | 160.000 | 50.80 | 2.60 | 66.00 |
| EHF002-32BU | 6.300 | 160.000 | 50.80 | 2.60 | 66.00 |
| EHF002-28BU-M61 | 5.510 | 140.000 | 44.50 | 2.30 | 58.50 |
| EHF002-28BU | 5.510 | 140.000 | 44.50 | 2.30 | 58.50 |
| EHF002-24GY-100 | 4.720 | 120.000 | 38.10 | 2.05 | 52.07 |
| EHF002-24GY | 4.720 | 120.000 | 38.10 | 2.05 | 52.00 |
| EHF002-24BU-M61 | 4.720 | 120.000 | 38.10 | 2.05 | 52.00 |
| EHF002-24BU | 4.720 | 120.000 | 38.10 | 2.05 | 52.00 |
| EHF002-20BU-M61 | 3.940 | 100.000 | 31.80 | 1.77 | 45.00 |
| EHF002-20BU | 3.940 | 100.000 | 31.80 | 1.77 | 45.00 |
| EHF002-16BU-M61 | 3.350 | 85.000 | 25.40 | 1.50 | 38.00 |
| EHF002-16BU | 3.350 | 85.000 | 25.40 | 1.50 | 38.00 |

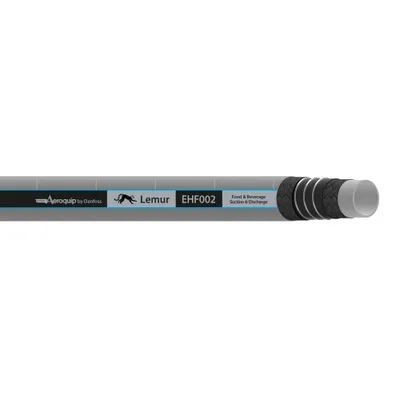

| EHF002-12GY | 2.760 | 70.000 | 19.00 | 1.22 | 31.00 |
| EHF002-12BU | 2.760 | 70.000 | 19.00 | 1.22 | 31.00 |
| EHC006-20BK | 5.980 | 152.000 | 32.00 | 1.73 | 44.00 |
| EHC006-16BK | 4.720 | 120.000 | 25.40 | 1.45 | 37.00 |
| EHB503-32RD-M100 | 5.900 | 150.000 | 50.80 | 2.55 | 65.00 |
| EHB503-16RD-M61 | 2.950 | 75.000 | 25.40 | 1.46 | 37.08 |
| EHB501-32RD-M61 | 20.000 | 508.000 | 50.80 | 2.56 | 65.02 |
| EHB501-20RD-M61 | 12.000 | 304.800 | 32.00 | 1.73 | 43.94 |
Common to all listed parts
| Abrasion resistance | Premium |
| Conductivity | Conductive |
| Lay line style | Ink transfer |
| Qualified hose fittings | Cam and groove |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
