Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (inch) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EHK005-24BK | 7.480 | 190.000 | 1.50 | 2.13 | 54.00 |
| EHK005-22ELBK | 6.890 | 175.000 | 1.38 | 1.93 | 49.00 |
| EHK005-22BK | 6.890 | 175.000 | 1.38 | 1.93 | 49.00 |
| EHK005-20BK | 6.300 | 160.000 | 1.25 | 1.81 | 46.00 |

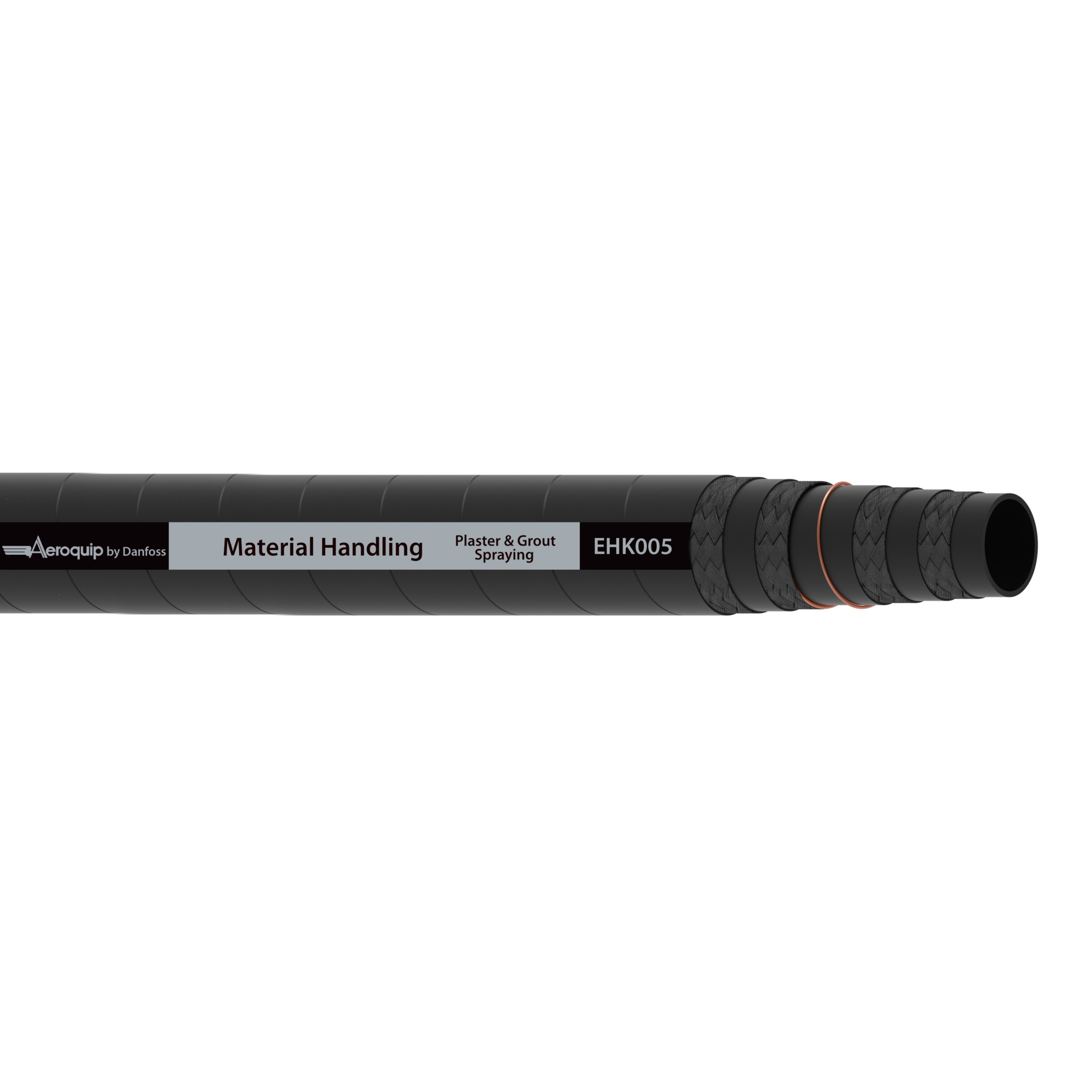

| EHK005-16AELBK | 4.330 | 110.000 | 1.00 | 1.50 | 38.00 |
| EHK005-16ABK | 4.330 | 110.000 | 1.00 | 1.50 | 38.00 |

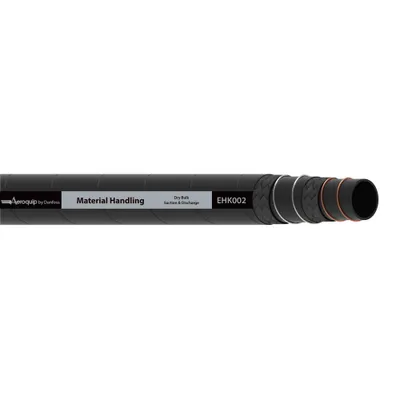

| EHK002-64-M61 | 21.650 | 550.000 | 4.00 | 4.72 | 120.00 |
| EHK002-48-M61 | 14.960 | 380.000 | 3.00 | 3.62 | 92.00 |
| EHK002-32-M61 | 9.840 | 250.000 | 2.00 | 2.60 | 66.00 |

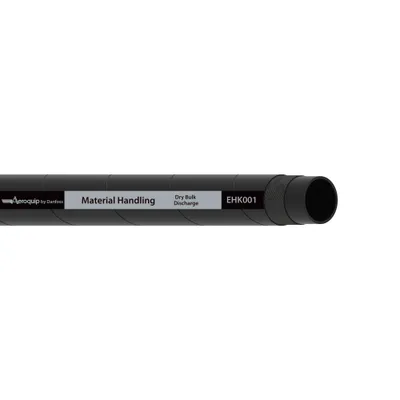

| EHK001-64X7000 | 59.840 | 1519.940 | 4.00 | 4.40 | 112.00 |

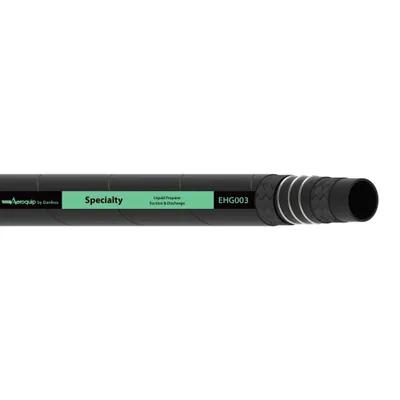

| EHG003-32-M61 | 11.020 | 280.000 | 2.00 | 2.63 | 66.80 |

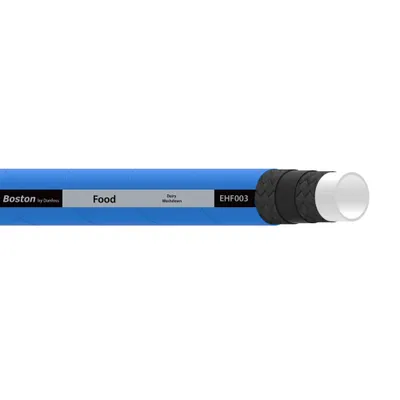

| EHF003-32BU-M61 | 15.700 | 398.780 | 2.00 | 2.66 | 67.56 |
| EHF003-24BU-M61 | 8.660 | 219.960 | 1.50 | 2.09 | 53.09 |
| EHF003-20BU-M61 | 6.690 | 169.930 | 1.25 | 1.81 | 45.97 |
| EHF003-10BU-M61 | 2.750 | 69.850 | 0.62 | 1.10 | 27.94 |
| EHF003-06BU-M61 | 1.960 | 49.780 | 0.38 | 0.79 | 20.07 |
| EHF002-64GY-100 | 17.720 | 450.000 | 4.00 | 4.67 | 118.62 |
| EHF002-64GY | 17.720 | 450.000 | 4.00 | 4.67 | 118.50 |
| EHF002-64BU | 17.720 | 450.000 | 4.00 | 4.67 | 118.50 |
| EHF002-64BK | 17.720 | 450.000 | 4.00 | 4.67 | 118.50 |
| EHF002-48GY-100 | 14.170 | 360.000 | 3.00 | 3.66 | 92.96 |
| EHF002-48BU-M61 | 14.170 | 360.000 | 3.00 | 3.66 | 93.00 |
| EHF002-48BU | 14.170 | 360.000 | 3.00 | 3.66 | 93.00 |
| EHF002-40GY-100 | 11.020 | 280.000 | 2.50 | 3.09 | 78.49 |
Common to all listed parts
| Lay line style | Ink transfer |
