Home / Hoses and fittings / Hydraulic hose and fittings / Thermoplastic hydraulic hose and fittings

Thermoplastic hydraulic hose and fittings Parts

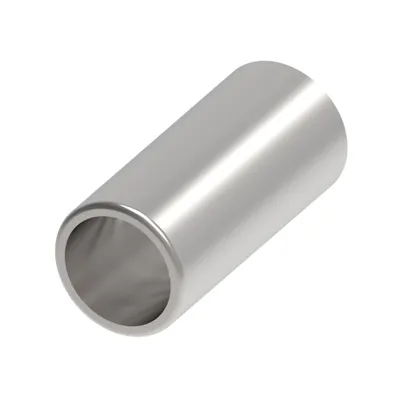

Danfoss

3981-15400

SOCKET-PERM, 4T/05, CS

Danfoss

3981-15300

SOCKET-PERM, 4T/04, CS

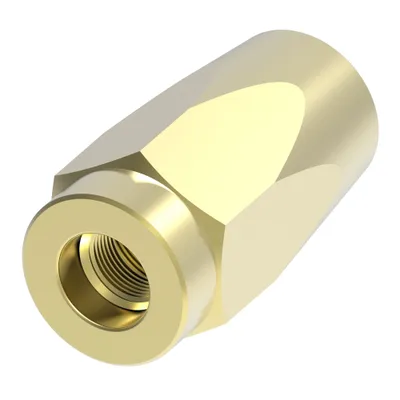

Danfoss

3981-01500

Socket Thermo( Reus) SHELL S12 1/2 HEX

Danfoss

3980-96500

Nipple(Perm) Thermo Str -4Hose x -4F ORS

Danfoss

3980-89300

Nipple (Perm) SAE37 Str -12Hose x -12F S

Danfoss

3980-72020

Ftng(reus) NPTF -6 HOSE x -4 MP BRASS

Danfoss

3980-48200

Nipple (Perm) Thermo Str -3Hose x-4F NPS

Danfoss

3980-43000

1/2 INCH MALE SWIVEL SWV-D SPUD END

Danfoss

3980-42900

Nipple(Perm) Thermo Str -4Hose x -4MP Sw

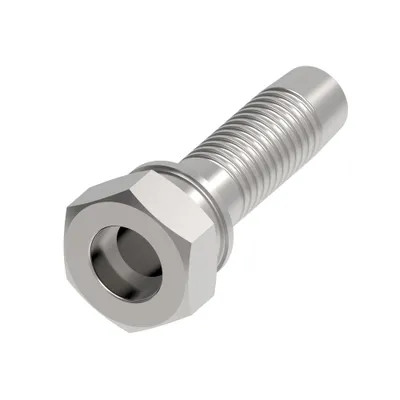

Danfoss

3980-40300

Nipple (Perm) Thermo Str -4Hose x -4C'bo

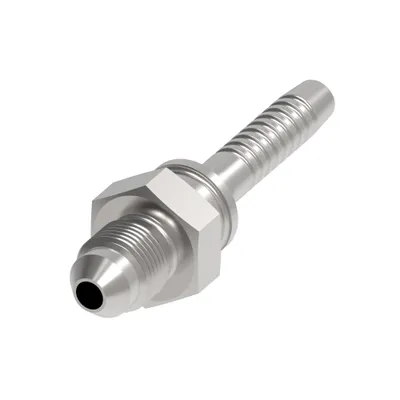

Danfoss

3980-37700

3/4 IN MALE STEM JIC

Danfoss

3980-37300

9/16 INCH FEMALE SWIVEL

Danfoss

3980-33800

Nipple (Perm) Thermo Str -4 hose x -6 C'

Danfoss

3980-31500

Nipple(Perm) Thermo Str -12Hose x-12F SA

Danfoss

3980-31400

1/2 IN FE SWVL INSERT

Danfoss

3980-31300

3/4 INCH FEMALE SWIVEL

Danfoss

3980-30900

Nipple(Perm) Thermo Str -5Hose x-6F SAE3

Danfoss

3980-30600

1/4 INSERT TO JIC FEMALE SWIVEL

Danfoss

3980-30500

Nipple (Perm) Thermo Str -4 Hose w/-6 Se

Danfoss

3980-30300

1/4 PERM ATTCH STEEL INSERT

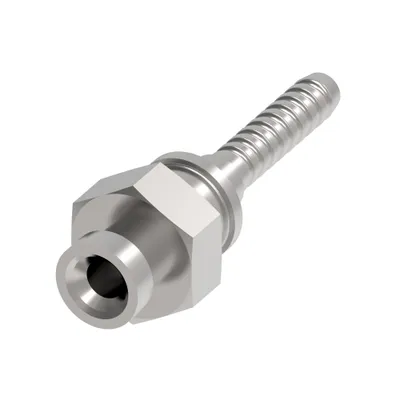

Danfoss

3980-30100

Nipple(Perm) Thermo Str 3Hose x -4F SAE3

Danfoss

3980-27400

Nipple (Perm) Thermo str -5 Hose x -6 C'

Danfoss

3980-27200

Nipple Thermo Str -10 tube cb -8 hose

Danfoss

3980-27100

Nipple (Perm) Thermo str -8 Hose x -8 C'

Compare Thermoplastic hydraulic hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Inside diameter IN	Inside diameter MM	EAN/UPC	Hex size 1 IN	Hex size 1 MM
3981-15400	0.590	14.990	—	—	—
3981-15300	0.536	13.610	—	—	—
3981-01500	0.2600	6.6040	639789354310	0.500	12.700
3980-96500	0.160	4.064	678146085627	0.630	16.002
3980-89300	0.470	11.938	678146085610	1.130	28.700
3980-72020	—	—	639789338532	0.560	14.224
3980-48200	0.110	2.794	678146085603	—	—
3980-43000	0.390	9.906	678146085597	0.880	22.352
3980-42900	0.160	4.064	678146085580	0.630	16.002
3980-40300	0.160	4.064	678146085566	0.630	16.0
3980-37700	0.280	7.112	678146085542	0.810	20.574
3980-37300	0.280	7.112	678146085535	0.750	19.050
3980-33800	0.160	4.064	678146085528	0.630	16.0
3980-31500	0.630	16.002	678146085511	1.130	28.702
3980-31400	0.390	9.906	678146085504	0.880	22.352
3980-31300	0.390	9.906	678146085498	0.880	22.352
3980-30900	0.220	5.588	678146085481	0.630	16.002
3980-30600	0.160	4.064	678146085474	0.630	16.002
3980-30500	0.160	4.064	678146085467	0.630	16.0
3980-30300	0.160	4.064	678146085450	0.630	16.002
3980-30100	0.110	2.794	678146085443	0.560	14.224
3980-27400	0.220	5.588	678146085436	0.630	16.0
3980-27200	0.390	9.906	678146085429	0.880	22.352
3980-27100	0.390	9.906	678146085412	0.880	22.4

Common to all listed parts

Angle shape	Straight
Thread sealant	No
