Thermoplastic hydraulic hose and fittings Parts
Compare Thermoplastic hydraulic hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Size | Product height in | Product height mm | Product width in | Product width mm |
|---|---|---|---|---|---|

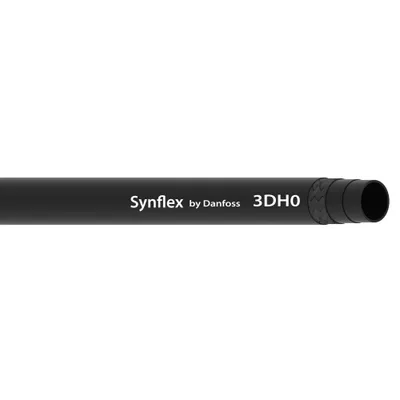

| 3DH0-08-M0075C | -8 | — | — | — | — |
| 3CH0-16-M0075C | -16 | 1.000 | 25.400 | 1.000 | 25.400 mm |
| 3CH0-12-M0075C | -12 | 0.770 | 19.500 | 0.770 | 19.500 mm |

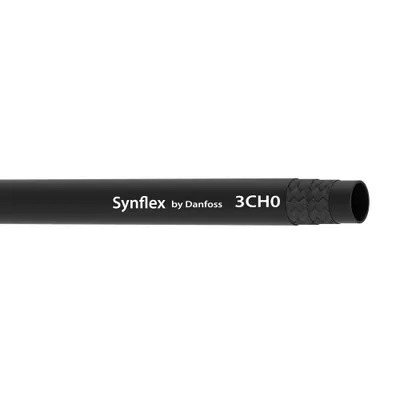

| 3CH0-06-M0075 | -6 | 0.370 | 9.500 | 0.370 | 9.500 mm |
| 3CH0-06-2-M0075 | -6 | 0.370 | 9.500 | 0.370 | 9.500 mm |
| 3CH0-05-M0075C | -5 | 0.310 | 7.900 | 0.310 | 7.900 mm |
| 3CH0-05-M0075 | -5 | 0.310 | 7.900 | 0.310 | 7.900 mm |
| 3CH0-05-2-M0075 | -5 | 0.310 | 7.900 | 0.310 | 7.900 mm |
| 3CH0-04003 | -4 | 0.260 | 6.600 | 0.260 | 6.600 mm |
| 3CH0-04-MHHC | -4 | 0.260 | 6.600 | 0.260 | 6.600 mm |
| 3CH0-04-BULK | -4 | 0.260 | 6.600 | 0.260 | 6.600 mm |
| 3CH0-04-2-M0075 | -4 | 0.260 | 6.600 | 0.260 | 6.600 mm |
| 3CH0-03-MHHC | -3 | 0.190 | 4.800 | 0.190 | 4.800 mm |
| 3CH0-03-M0075C | -3 | 0.190 | 4.800 | 0.190 | 4.800 mm |
| 3CH0-03-BULK | -3 | 0.190 | 4.800 | 0.190 | 4.800 mm |
| 3CH0-02-M0075C | -2 | 0.140 | 3.500 | 0.140 | 3.500 mm |
| 3CH0-02-M0075 | -2 | 0.140 | 3.500 | 0.140 | 3.500 mm |
| 398E-03544-C05 | — | 0.640 | 16.256 | 0.560 | 14.224 mm |
| 3983-54615 | — | — | — | — | — |
| 3981-33400 | — | — | — | — | — |
| 3981-23220 | — | 1.100 | 27.940 | 1.100 | 27.940 mm |
| 3981-16700 | — | 0.630 | 16.002 | 0.630 | 16.002 mm |
| 3981-15600 | — | 1.000 | 25.400 | 1.000 | 25.400 mm |
