Thermoplastic hydraulic hose and fittings Parts
Compare Thermoplastic hydraulic hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (mm) | Burst pressure (bar) | Inside diameter (mm) | Outside diameter (mm) | Working pressure max (bar) |
|---|---|---|---|---|---|
| 3TR8N-06-M0076C | 57.200 | 1120 | 9.50 | 19.00 | 280 |
| 3TR8N-06-M0076 | 57.200 | 1120 | 9.50 | 19.00 | 280 |
| 3TR8N-06-500RL | 51.435 | 1117 | 9.65 | 19.05 | 210 |
| 3TR8N-06-250BX | 57.200 | 1120 | 9.50 | 19.00 | 280 |
| 3TR8N-06-250BC | 57.200 | 1120 | 9.50 | 19.00 | 280 |
| 3TR8N-04-M0076C | 38.100 | 1400 | 6.40 | 15.00 | 350 |
| 3TR8N-04-M0076 | 38.100 | 1400 | 6.40 | 15.00 | 350 |
| 3TR8N-04-500RL | 38.100 | 1407 | 6.35 | 14.99 | 352 |
| 3TR8N-04-250BX | 38.100 | 1400 | 6.40 | 15.00 | 350 |
| 3TR8N-04-250BC | 38.100 | 1400 | 6.40 | 15.00 | 350 |

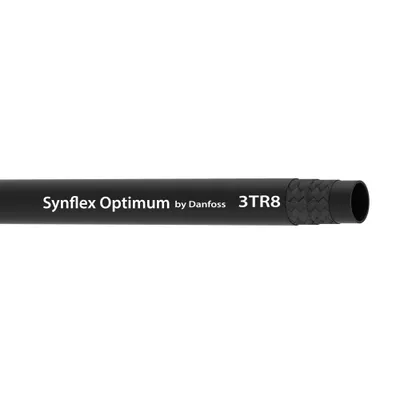

| 3TR8-16-M0061C | 196.900 | 560 | 25.40 | 36.20 | 140 |
| 3TR8-16-M0061 | 196.900 | 560 | 25.40 | 36.20 | 140 |
| 3TR8-16-500RL | 196.850 | 565 | 25.40 | 36.32 | 141 |
| 3TR8-16-200BX | 196.900 | 560 | 25.40 | 36.20 | 140 |
| 3TR8-16-200BC | 196.850 | 565 | 25.30 | 35.90 | 141 |
| 3TR8-16-050BX | 196.850 | 565 | 25.40 | 36.32 | 141 |
| 3TR8-12-M0061C | 114.300 | 628 | 19.00 | 28.80 | 157 |
| 3TR8-12-M0061 | 114.300 | 628 | 19.00 | 28.80 | 157 |
Common to all listed parts
| Cover material | Polyurethane (TPU) |
