Danfoss 3TR8N-06-500RL

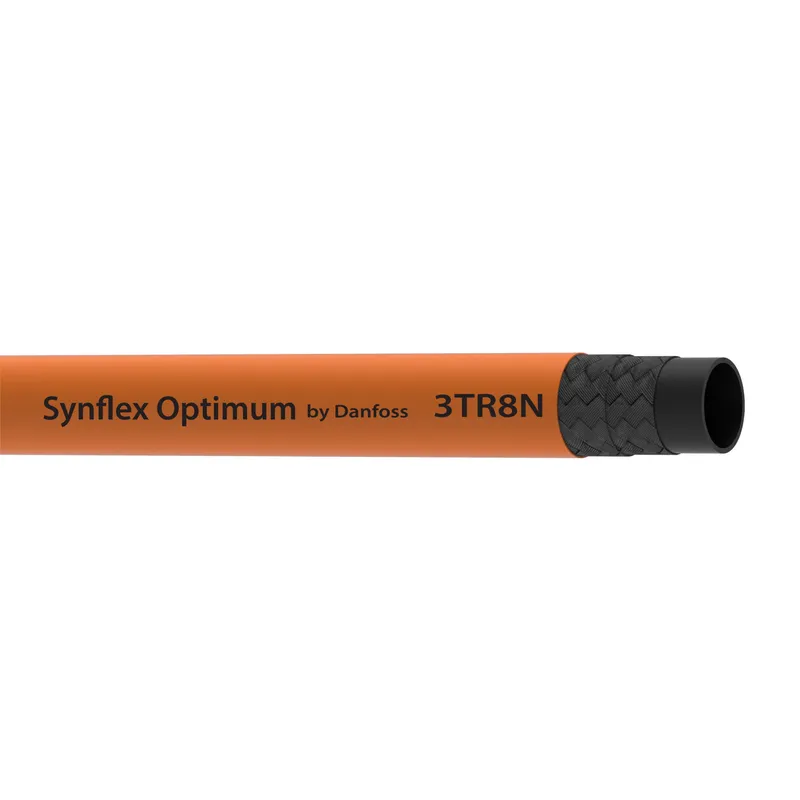

Hose, Thermo R8 ORANGE Nonconductive
- MPN
- 3TR8N-06-500RL
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 3TR8N-06-500RL?
Danfoss Hose, Thermo R8 ORANGE Nonconductive, manufacturer part number 3TR8N-06-500RL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 810903035760 |
| Abrasion resistance | Standard |
| Application | Chemical transfer, General hydraulics, Mobile applications |
| Bend radius min (inch) | 2.025 |
| Bend radius min (mm) | 51.435 |
| Brand | Synflex Optimum by Danfoss |
| Burst pressure (bar) | 1117 |
| Burst pressure (psi) | 16200 |
| Color | Orange |
| Conductivity | Non-conductive |
| Cover material | Polyurethane (TPU) |
| Inside diameter (inch) | 0.38 |
| Inside diameter (mm) | 9.65 |
| Lay line style | Ink jet |
| Outside diameter (inch) | 0.75 |
| Outside diameter (mm) | 19.05 |
| Reinforcement material | Fiber |
| Series | 3TR8N Series |
| Size | -6 |
| Tube wall thickness (inch) | 0.16 |
| Tube wall thickness (mm) | 4.06 |
| Working pressure max (bar) | 210 |
| Working pressure max (psi) | 3050 |
| Working temperature max (C) | 93 |
| Working temperature max (F) | 200.0 |
| Working temperature min (C) | -54 |
| Working temperature min (F) | -65.0 |
3TR8N-06-500RL: frequently asked questions
When can 3TR8N-06-500RL be shipped?
3TR8N-06-500RL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3TR8N-06-500RL in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3TR8N-06-500RL and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3TR8N-06-500RL, subject to availability and destination.
