Braided hose and fittings Parts

Danfoss

00110-16ANZ

SOCKET-PERM, 2P/16, CS

Danfoss

00110-16AEWZF

SOCKET-PERM, 2P/16, CS

Danfoss

00110-16AEWZ

SOCKET-PERM, 2P/16, CS

Danfoss

00110-12AZN

SOCKET-PERM, 2P/12, CS

Danfoss

00110-12AZ

SOCKET-PERM, 2P/12, CS

Danfoss

00110-12ASV

SOCKET-PERM, 2P/12, AP

Danfoss

00110-12ASR

SOCKET-PERM, 2P/12, AN

Danfoss

00110-12ANZF

SOCKET-PERM, 2P/12, CS

Danfoss

00110-12ANZ

SOCKET-PERM, 2P/12, CS

Danfoss

00110-12AEWZF

SOCKET-PERM, 2P/12, CS

Danfoss

00110-12AEWZ

SOCKET-PERM, 2P/12, CS

Danfoss

00110-10AZN

SOCKET-PERM, 2P/10, CS

Danfoss

00110-10AZ

SOCKET-PERM, 2P/10, CS

Danfoss

00110-10AWSZ

SOCKET-PERM, 2P/10, CS

Danfoss

00110-10ASR

SOCKET-PERM, 2P/10, AN

Danfoss

00110-10ANZF

SOCKET-PERM, 2P/10, CS

Danfoss

00110-10AEWZF

SOCKET-PERM, 2P/10, CS

Danfoss

00110-10AEWZ

SOCKET-PERM, 2P/10, CS

Danfoss

00110-08EZ

SOCKET-PERM, 2P/08, CS

Danfoss

00110-08ESV

SOCKET-PERM, 2P/08, AP

Danfoss

00110-08AZN

SOCKET-PERM, 2P/08, CS

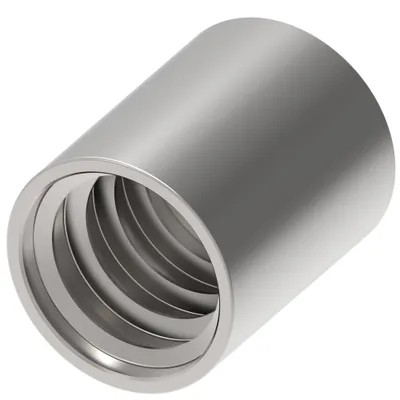

Danfoss

00110-08AZ

SOCKET-PERM, 2P/08, CS

Danfoss

00110-08ASV

SOCKET-PERM, 2P/08, AP

Danfoss

00110-08ASR

SOCKET-PERM, 2P/08, AN

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product height in	Product height mm	Product length in	Product length mm	Product width mm
00110-16ANZ	1.710	43.434	2.010	51.054	43.434 mm
00110-16AEWZF	1.712	43.485	2.000	50.800	43.434 mm
00110-16AEWZ	1.713	43.500	2.008	51.001	43.500 mm
00110-12AZN	1.400	35.560	1.650	41.910	35.560 mm
00110-12AZ	1.398	35.500	1.654	42.000	35.500 mm
00110-12ASV	1.398	35.500	1.654	42.000	35.500 mm
00110-12ASR	1.398	35.499	1.654	41.999	35.499 mm
00110-12ANZF	1.130	28.702	1.650	41.910	28.702 mm
00110-12ANZ	1.400	35.560	1.650	41.910	35.560 mm
00110-12AEWZF	1.400	35.560	1.650	41.910	35.560 mm
00110-12AEWZ	1.397	35.500	1.653	42.000	35.500 mm
00110-10AZN	1.230	31.242	1.460	37.084	31.242 mm
00110-10AZ	1.232	31.300	1.457	37.000	31.300 mm
00110-10AWSZ	1.232	31.300	1.457	37.000	31.300 mm
00110-10ASR	1.232	31.300	1.456	37.000	31.300 mm
00110-10ANZF	1.230	31.242	1.460	37.084	31.242 mm
00110-10AEWZF	1.230	31.242	1.460	37.084	31.242 mm
00110-10AEWZ	1.232	31.300	1.456	37.000	31.300 mm
00110-08EZ	1.040	26.416	1.290	32.766	26.416 mm
00110-08ESV	1.040	26.416	1.290	32.766	26.416 mm
00110-08AZN	1.100	27.940	1.340	34.036	27.940 mm
00110-08AZ	1.102	28.000	1.339	34.000	28.000 mm
00110-08ASV	1.102	28.000	1.339	34.000	28.000 mm
00110-08ASR	1.102	28.000	1.339	34.000	28.001 mm

Common to all listed parts

Angle shape	Straight
Construction Style	Crimp
Series	Winner 2-Piece
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
