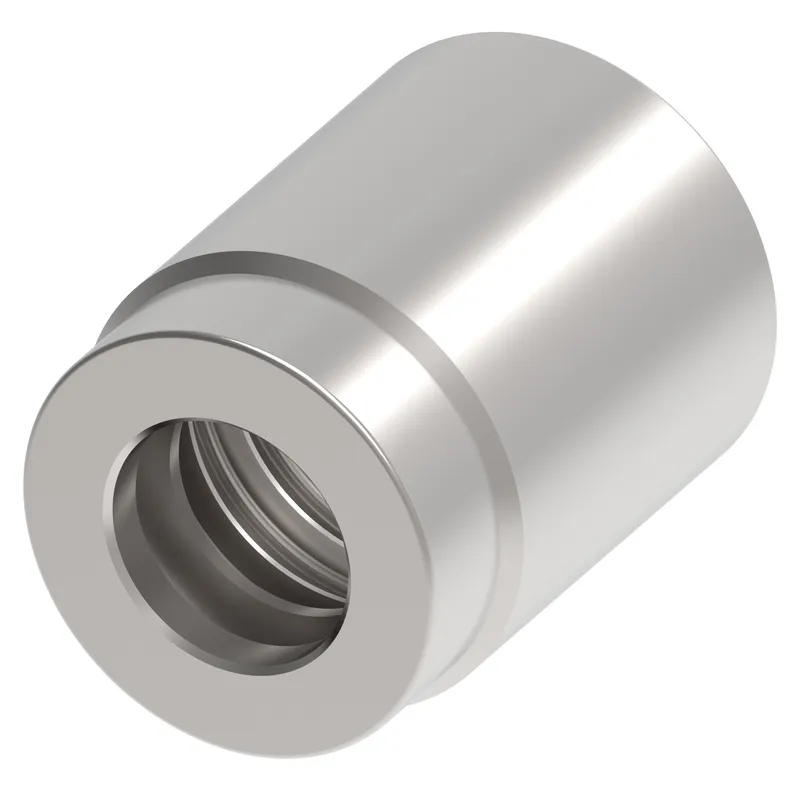

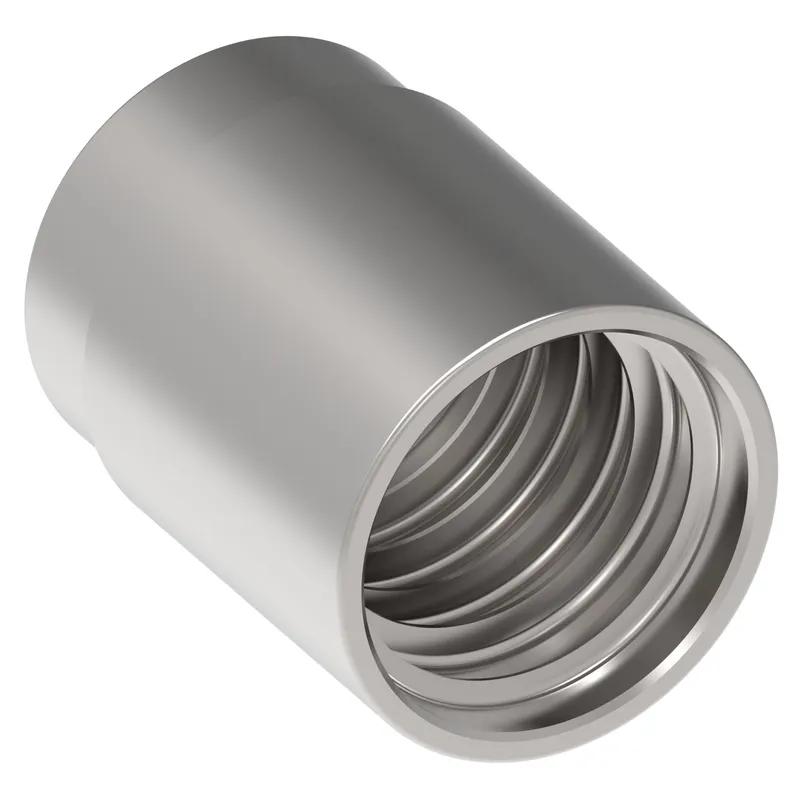

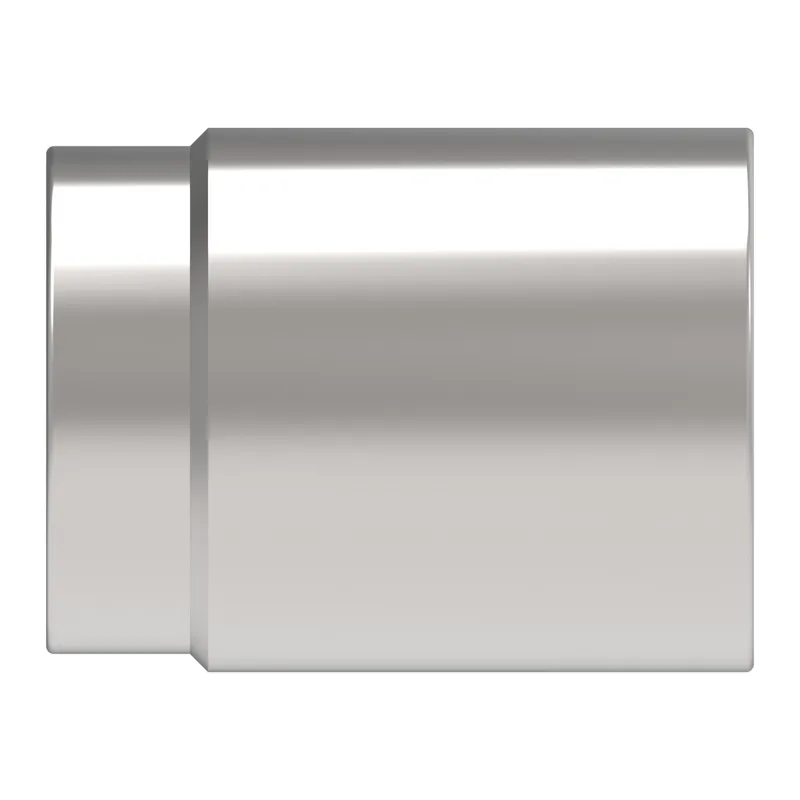

Danfoss 00110-16AEWZF
SOCKET-PERM, 2P/16, CS
- MPN
- 00110-16AEWZF
- Category
- Braided hose and fittings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 00110-16AEWZF?
Danfoss SOCKET-PERM, 2P/16, CS, manufacturer part number 00110-16AEWZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.010 |
| A dimension MM | 51.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| Finish plating | Zinc plating |
| Hose cut off factor MM | 24.000 |
| Hose size | -16 |
| Inside diameter IN | 1.2000 |
| Inside diameter MM | 30.6000 |
| Product height in | 1.712 |
| Product height mm | 43.485 |
| Product length in | 2.000 |
| Product length mm | 50.800 |
| Product material | Carbon steel |
| Product width in | 1.710 |
| Product width mm | 43.434 mm |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
00110-16AEWZF: frequently asked questions
When can 00110-16AEWZF be shipped?
00110-16AEWZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 00110-16AEWZF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 00110-16AEWZF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 00110-16AEWZF, subject to availability and destination.
