3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | operational current — at 55 °C | operational current — at 60 °C | operational current — at 65 °C | operational current — at 70 °C |
|---|---|---|---|---|---|
| 3VA2450-6KQ32-0AA0 | 4.824 kg | 477 A | 455 A | 432 A | 410 A |

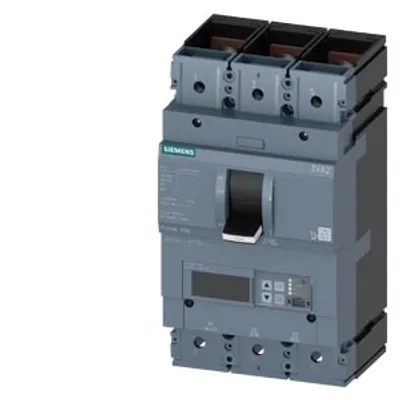

| 3VA2450-6KP32-0AA0 | 5.011 kg | — | — | — | — |
| 3VA2340-5HN32-0AA0 | 4.6 kg | — | — | — | — |

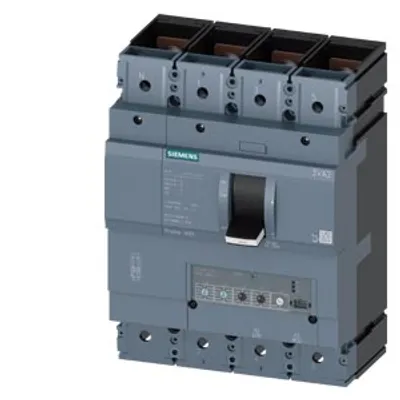

| 3VA2340-5HM42-0AA0 | 5.98 kg | 385 A | 370 A | 355 A | 340 A |

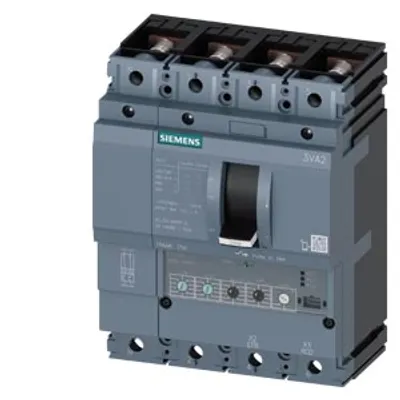

| 3VA2225-7HN42-0AA0 | 2.827 kg | 241 A | 232 A | 222 A | 213 A |
| 3VA2325-5HN32-0AA0 | 4.619 kg | — | — | — | — |
| 3VA2325-8JP32-0AA0 | 4 300 g | 250 A | 250 A | 250 A | 250 A |
| 3VA2340-0KP32-0AA0 | 5.14 kg | 375 A | 350 A | 325 A | 300 A |
| 3VA2325-0HL42-0AA0 | 6.35 kg | — | — | — | — |

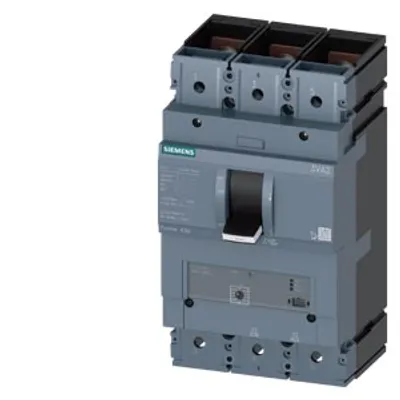

| 3VA2450-7MS32-0AA0 | 4.973 kg | 495 A | 490 A | 485 A | 480 A |

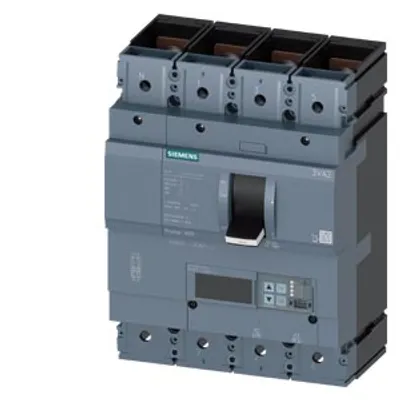

| 3VA2340-5JQ42-0AA0 | 5.98 kg | 375 A | 350 A | 325 A | 300 A |
| 3VA1063-2ED42-0AA0 | 1.202 kg | 62 A | 61 A | 60 A | 58 A |

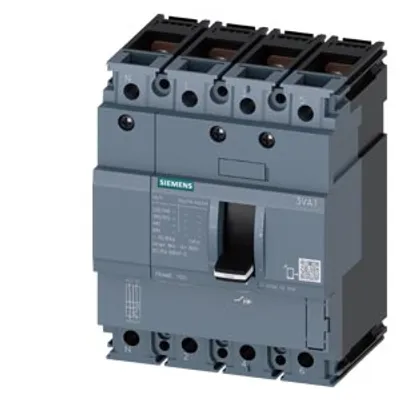

| 3VA1050-4ED42-0AA0 | 1.199 kg | 49 A | 48 A | 46 A | 45 A |
| 3VA1032-4ED36-0AA0 | 1.013 kg | 31 A | 31 A | 30 A | 30 A |
| 3VA2163-8KP46-0AA0 | 3.2 kg | 63 A | 63 A | 63 A | 63 A |

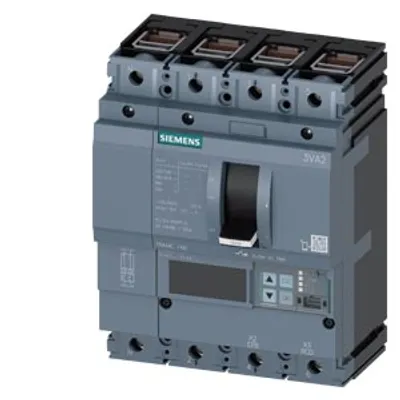

| 3VA2116-6KP46-0AA0 | 3.2 kg | 160 A | 160 A | 160 A | 160 A |

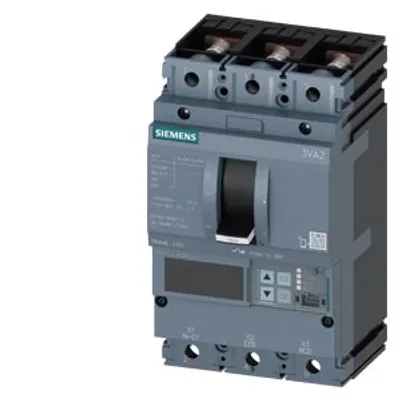

| 3VA2163-7JP32-0AA0 | 2.5 kg | 63 A | 63 A | 63 A | 63 A |

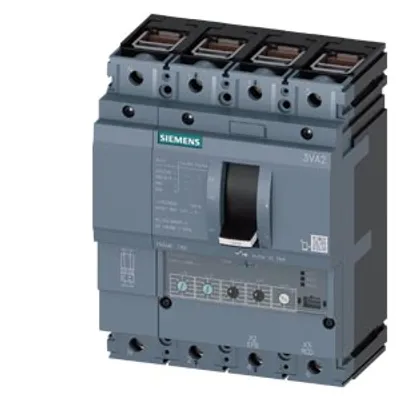

| 3VA2163-7HN46-0AA0 | 3.2 kg | 63 A | 63 A | 63 A | 63 A |
| 3VA2140-0KQ42-0AA0 | 3.3 kg | 40 A | 40 A | 40 A | 40 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| reference code / according to IEC 81346-2 | Q |
