3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | operational current — at 55 °C | operational current — at 60 °C | operational current — at 65 °C | operational current — at 70 °C |
|---|---|---|---|---|---|

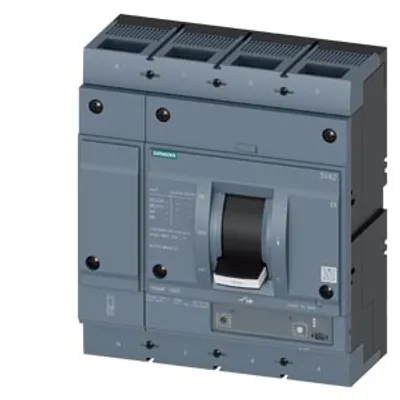

| 3VA2580-5HK42-0AA0 | 15.42 kg | 800 A | 800 A | 767 A | 703 A |

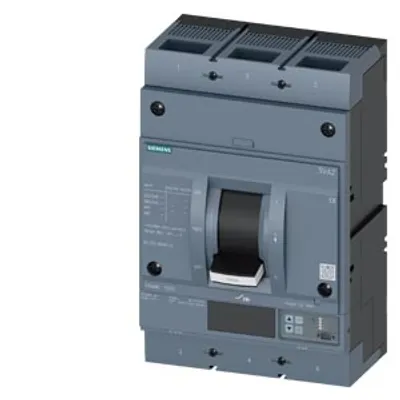

| 3VA2563-7JP32-0AA0 | 13.843 kg | 630 A | 630 A | 630 A | 630 A |
| 3VA2563-5HK42-0AA0 | 15.42 kg | 630 A | 630 A | 630 A | 630 A |
| 3VA2563-5HK32-0AA0 | 11.34 kg | 630 A | 630 A | 630 A | 630 A |
| 3VA2510-7KQ42-0AA0 | 16.78 kg | 1 000 A | 955 A | 885 A | 815 A |
| 3VA2510-6KQ42-0AA0 | 18.45 kg | 1 000 A | 955 A | 885 A | 815 A |
| 3VA2510-6KQ32-0AA0 | 14.338 kg | 1 000 A | 955 A | 885 A | 815 A |

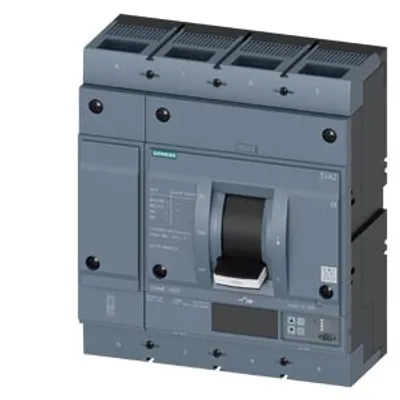

| 3VA2510-6JP42-0AA0 | 16.78 kg | 1 000 A | 955 A | 885 A | 815 A |
| 3VA2463-6KP32-0AA0 | 5.27 kg | 540 A | 510 A | 480 A | 450 A |

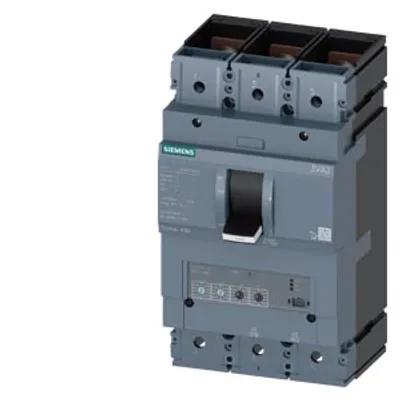

| 3VA2463-6HM32-0AA0 | 5.23 kg | 575 A | 557 A | 538 A | 520 A |
| 3VA2340-5KP42-0AA0 | 6.042 kg | 375 A | 350 A | 325 A | 300 A |
| 3VA2463-5JP32-0AA0 | 5.194 kg | 540 A | 510 A | 480 A | 450 A |
| 3VA2463-7HK42-0AA0 | 5.7 kg | 575 A | 557 A | 538 A | 520 A |
| 3VA2440-5HL32-0AA0 | 4.923 kg | 400 A | 400 A | 400 A | 400 A |
| 3VA2450-5MN32-0AA0 | 4.981 kg | 495 A | 490 A | 485 A | 480 A |
| 3VA2340-7JQ42-0AA0 | 5.995 kg | 375 A | 350 A | 325 A | 300 A |

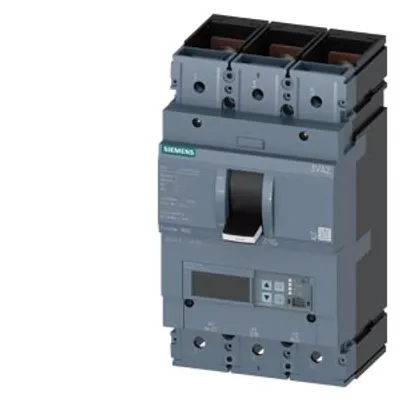

| 3VA2340-7JP32-0AA0 | 4.665 kg | 375 A | 350 A | 325 A | 300 A |

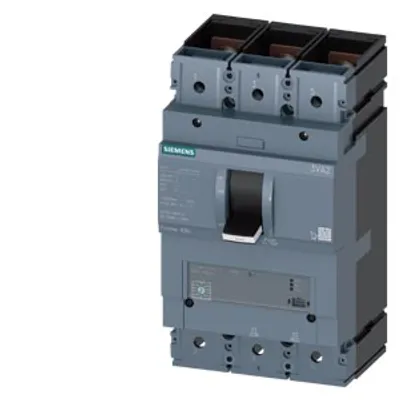

| 3VA2450-5HK32-0AA0 | 4.954 kg | 477 A | 455 A | 432 A | 410 A |

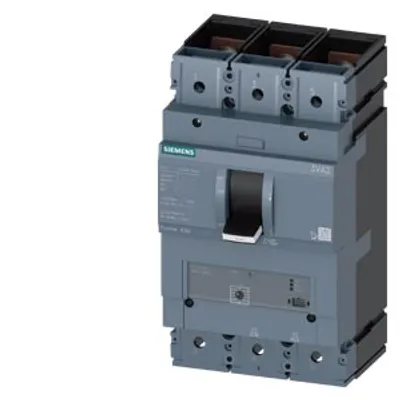

| 3VA2450-0MS32-0AA0 | 5.145 kg | 495 A | 490 A | 485 A | 480 A |
| 3VA2325-5HL32-0AA0 | 4.631 kg | 250 A | 250 A | 250 A | 250 A |
| 3VA2440-6JQ32-0AA0 | 4.969 kg | 400 A | 400 A | 400 A | 400 A |
| 3VA2225-7KP42-0AA0 | 3.1 kg | 238 A | 225 A | 213 A | 200 A |

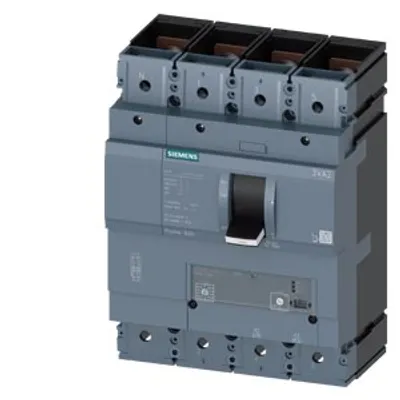

| 3VA2463-6HK42-0AA0 | 5.7 kg | 575 A | 557 A | 538 A | 520 A |

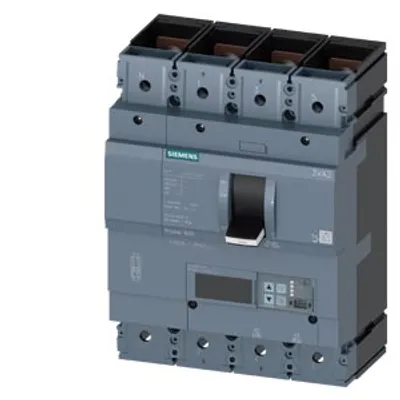

| 3VA2450-7JP42-0AA0 | 5.7 kg | 477 A | 455 A | 432 A | 410 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| type of electrical connection / for main current circuit | on both sides nut keeper kit |
