3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA2110-5KP32-0AA0 | ETU850 | 10 W | 3.33 W | 2.191 kg | 150 A |
| 3VA2110-5JQ46-0AA0 | ETU560 | 10 W | 3.33 W | 2.925 kg | 150 A |
| 3VA2063-6HN36-0AA0 | ETU350 | 5.4 W | 1.8 W | 2.268 kg | 756 A |
| 3VA2110-6KQ32-0AA0 | ETU860 | 10 W | 3.33 W | 2.5 kg | 150 A |
| 3VA2110-6KP46-0AA0 | ETU850 | 10 W | 3.33 W | 3.2 kg | — |

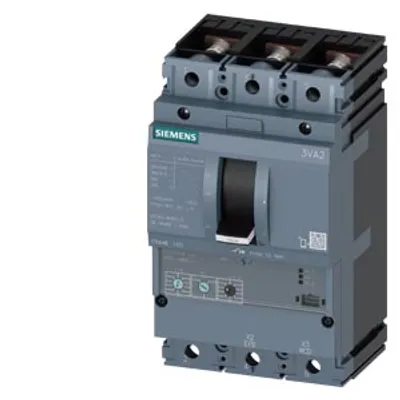

| 3VA2140-5MN32-0AA0 | ETU350M | 1.6 W | 0.53 W | 2.167 kg | 600 A |
| 3VA2125-6KQ42-0AA0 | ETU860 | 0.6 W | 0.2 W | 3.2 kg | 37 A |
| 3VA2125-6KQ36-0AA0 | ETU860 | 0.6 W | 0.2 W | 2.5 kg | 37 A |
| 3VA2025-8JQ36-0AA0 | ETU560 | 0.5 W | 0.17 W | 2.5 kg | 37 A |
| 3VA2025-8JQ32-0AA0 | ETU560 | 0.5 W | 0.17 W | 2.5 kg | 37 A |
| 3VA2025-8JP32-0AA0 | ETU550 | 0.5 W | 0.17 W | 2.5 kg | 37 A |

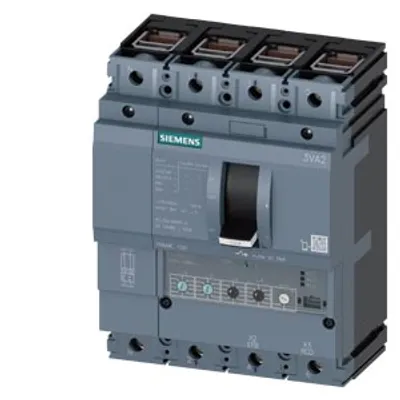

| 3VA2063-5HM46-0AA0 | ETU330 | 5.4 W | 1.8 W | 2.938 kg | 94 A |
| 3VA2110-6JQ46-0AA0 | ETU560 | 10 W | 3.33 W | 3.2 kg | 150 A |
| 3VA2125-8KP42-0AA0 | ETU850 | 0.5 W | 0.17 W | 3.2 kg | 37 A |
| 3VA2125-8KP36-0AA0 | ETU850 | 0.5 W | 0.17 W | 2.5 kg | 37 A |

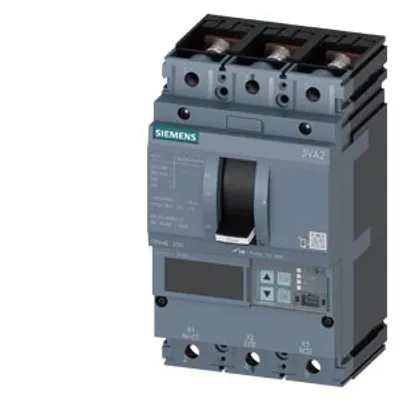

| 3VA2225-5JP32-0AA0 | ETU550 | 48 W | 16 W | 2.178 kg | 375 A |
| 3VA2125-7MQ36-0AA0 | ETU860M | 0.6 W | 0.2 W | 2.5 kg | 75 A |
| 3VA2216-6HN32-0AA0 | ETU350 | 19.7 W | 6.57 W | 2.258 kg | 1 920 A |
| 3VA2125-7KP46-0AA0 | ETU850 | 0.6 W | 0.2 W | 3.2 kg | 37 A |
| 3VA2040-7JP36-0AA0 | ETU550 | 1.2 W | 0.4 W | 2.5 kg | 60 A |
| 3VA2040-7JP32-0AA0 | ETU550 | 1.2 W | 0.4 W | 2.5 kg | 60 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| mechanical service life (operating cycles) / typical | 25 000 |
| product feature / for L-tripping / can be switched on/off | No |
| height [in] | 7.13 in |
| height | 181 mm |
| depth [in] | 3.39 in |
