3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | power loss [W] / maximum | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum | adjustable response value setting current (Ii) / for I-tripping — maximum |
|---|---|---|---|---|---|
| 3VA2325-6HN42-0AA0 | ETU350 | 37.5 W | 6 kg | 3 000 A | 3 000 A |
| 3VA2325-6HN32-0AA0 | ETU350 | 37.5 W | 4.672 kg | 3 000 A | 3 000 A |

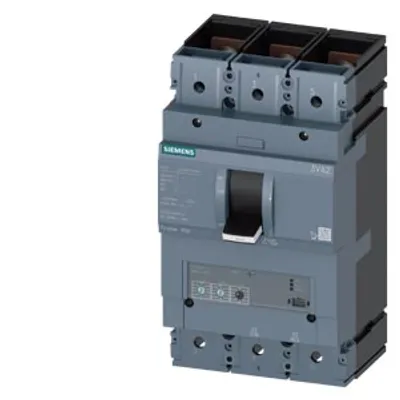

| 3VA2325-6HL32-0AA0 | ETU320 | 37.5 W | 4.703 kg | 375 A | 3 000 A |
| 3VA2325-6HK42-0AA0 | ETU340 | 37.5 W | 5.7 kg | 3 750 A | 3 750 A |
| 3VA2325-6HK32-0AA0 | ETU340 | 37.5 W | 4.5 kg | 3 750 A | 3 750 A |
| 3VA2110-7KQ32-0AA0 | ETU860 | 10 W | 2.198 kg | 150 A | 1 200 A |
| 3VA2125-8KP32-0AA0 | ETU850 | 0.5 W | 2.5 kg | 37 A | 300 A |
| 3VA2040-5HL32-0AA0 | ETU320 | 2.2 W | 2.1 kg | 60 A | 480 A |

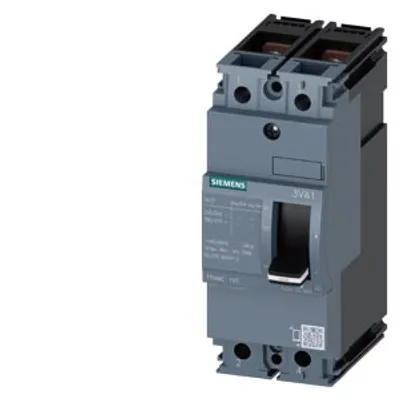

| 3VA1120-5ED22-0AA0 | TM210 | 8 W | 686 g | 320 A | 320 A |
| 3VA1125-3ED46-0AA0 | TM210 | 8.5 W | 1.282 kg | 320 A | 320 A |
| 3VA2125-7HN32-0AA0 | ETU350 | 0.6 W | 2.163 kg | 300 A | 300 A |
| 3VA2040-7HM32-0AA0 | ETU330 | 1.2 W | 2.5 kg | 60 A | 480 A |
| 3VA2040-7HL46-0AA0 | ETU320 | 1.2 W | 3.2 kg | 60 A | 480 A |
| 3VA2110-7KP46-0AA0 | ETU850 | 10 W | 3.2 kg | 150 A | 1 200 A |
| 3VA2325-7JQ42-0AA0 | ETU560 | 37.5 W | 5.7 kg | 375 A | 3 000 A |
| 3VA2325-7HN32-0AA0 | ETU350 | 37.5 W | 4.672 kg | 3 000 A | 3 000 A |
| 3VA2450-6JQ32-0AA0 | ETU560 | 99 W | 4.943 kg | 750 A | 7 000 A |
| 3VA2450-5MP32-0AA0 | ETU550M | 99 W | 4.789 kg | 1 500 A | 7 500 A |
| 3VA2125-7KP32-0AA0 | ETU850 | 0.6 W | 2.5 kg | 37 A | 300 A |
| 3VA2125-7JQ32-0AA0 | ETU560 | 0.6 W | 2.176 kg | 37 A | 300 A |
| 3VA2125-7JP46-0AA0 | ETU550 | 0.6 W | 3.2 kg | 37 A | 300 A |

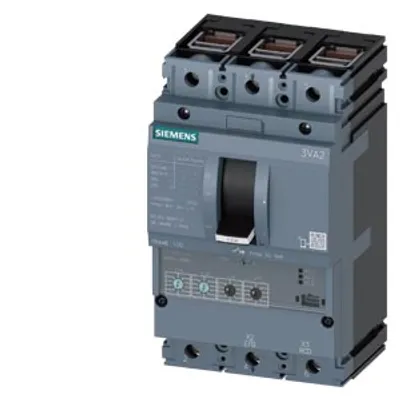

| 3VA2010-7HM36-0AA0 | ETU330 | 7.7 W | 2.5 kg | 150 A | 1 200 A |
| 3VA2216-7KQ42-0AA0 | ETU860 | 19.7 W | 3.2 kg | 240 A | 1 920 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| product feature / for L-tripping / can be switched on/off | No |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
