Beckhoff KL1488 – Bus Terminal, 8-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff

Bus Terminal, 8-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff KL1408 – Bus Terminal, 8-channel digital input, 24 V DC, 3 ms, 1-wire connection

Beckhoff

Bus Terminal, 8-channel digital input, 24 V DC, 3 ms, 1-wire connection

Beckhoff KL1418 – Bus Terminal, 8-channel digital input, 24 V DC, 0.2 ms

Beckhoff

Bus Terminal, 8-channel digital input, 24 V DC, 0.2 ms

Beckhoff KL1814 – Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms

Beckhoff KL1804 – Bus Terminal, 4-channel digital input, 24 V DC, 3 ms

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 3 ms

Beckhoff KL1819 – Bus Terminal, 16-channel digital input, 24 V DC, 0.2 ms

Beckhoff

Bus Terminal, 16-channel digital input, 24 V DC, 0.2 ms

Beckhoff KL1809 – Bus Terminal, 16-channel digital input, 24 V DC, 3 ms

Beckhoff

Bus Terminal, 16-channel digital input, 24 V DC, 3 ms

Beckhoff KL1872 – Bus Terminal, 16-channel digital input, 24 V DC, 0.2 ms, flat-ribbon cable

Beckhoff

Bus Terminal, 16-channel digital input, 24 V DC, 0.2 ms, flat-ribbon cable

Beckhoff KL1862 – Bus Terminal, 16-channel digital input, 24 V DC, 3 ms, flat-ribbon cable

Beckhoff

Bus Terminal, 16-channel digital input, 24 V DC, 3 ms, flat-ribbon cable

Beckhoff KL1412 – Bus Terminal, 2-channel digital input, 24 V DC, 0.2 ms

Beckhoff

Bus Terminal, 2-channel digital input, 24 V DC, 0.2 ms

Beckhoff KL1402 – Bus Terminal, 2-channel digital input, 24 V DC, 3 ms, 2-wire connection

Beckhoff

Bus Terminal, 2-channel digital input, 24 V DC, 3 ms, 2-wire connection

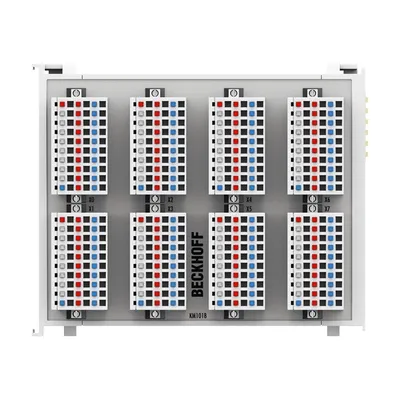

Beckhoff KM1018 – Bus Terminal module, 64-channel digital input, 24 V DC, 0.2 ms

Beckhoff

Bus Terminal module, 64-channel digital input, 24 V DC, 0.2 ms

Beckhoff KM1008 – Bus Terminal module, 64-channel digital input, 24 V DC, 3 ms

Beckhoff

Bus Terminal module, 64-channel digital input, 24 V DC, 3 ms

Beckhoff KM1014 – Bus Terminal module, 32-channel digital input, 24 V DC, 0.2 ms

Beckhoff

Bus Terminal module, 32-channel digital input, 24 V DC, 0.2 ms

Beckhoff KM1004 – Bus Terminal module, 32-channel digital input, 24 V DC, 3 ms

Beckhoff

Bus Terminal module, 32-channel digital input, 24 V DC, 3 ms

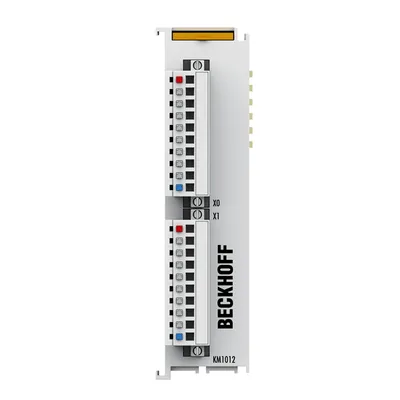

Beckhoff KM1012 – Bus Terminal module, 16-channel digital input, 24 V DC, 0.2 ms

Beckhoff

Bus Terminal module, 16-channel digital input, 24 V DC, 0.2 ms

Beckhoff KM1002 – Bus Terminal module, 16-channel digital input, 24 V DC, 3 ms

Beckhoff

Bus Terminal module, 16-channel digital input, 24 V DC, 3 ms

Beckhoff KL1314 – Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, type 2

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, type 2

Beckhoff KL1304 – Bus Terminal, 4-channel digital input, 24 V DC, 3 ms, type 2

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 3 ms, type 2

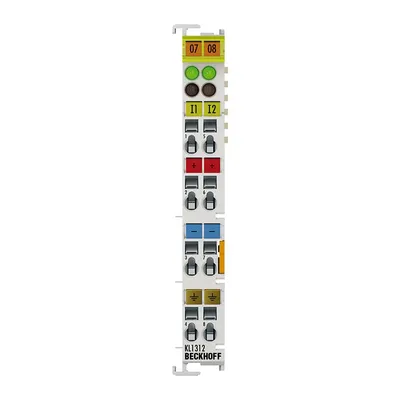

Beckhoff KL1312 – Bus Terminal, 2-channel digital input, 24 V DC, 0.2 ms, type 2

Beckhoff

Bus Terminal, 2-channel digital input, 24 V DC, 0.2 ms, type 2

Beckhoff KL1302 – Bus Terminal, 2-channel digital input, 24 V DC, 3 ms, type 2

Beckhoff

Bus Terminal, 2-channel digital input, 24 V DC, 3 ms, type 2

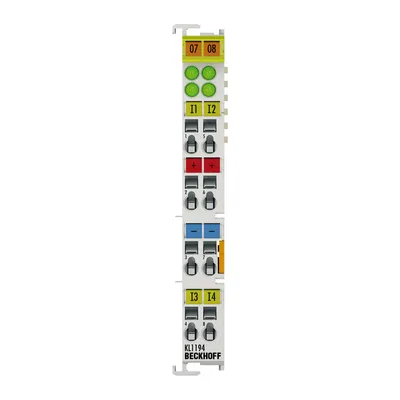

Beckhoff KL1194 – Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, ground switching

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, ground switching

Beckhoff KL1184 – Bus Terminal, 4-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff KL1164 – Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, positive/ground switching

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, positive/ground switching

Compare KL1xxx | Digital input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Connection technology	Specification	Number of inputs	“0” signal voltage	Bit width in the process image
KL1488	1-wire	ground switching	8	18…30 V	8 inputs
KL1408	1-wire	EN 61131-2, type 1/3	8	-3…+5 V (EN 61131-2, type 1/3)	8 inputs
KL1418	1-wire	EN 61131-2, type 1/3	8	-3…+5 V (EN 61131-2, type 1/3)	8 inputs
KL1814	3-wire	EN 61131-2, type 1/3	4	-3…+5 V (EN 61131-2, type 1/3)	4 inputs
KL1804	3-wire	EN 61131-2, type 1/3	4	-3…+5 V (EN 61131-2, type 1/3)	4 inputs
KL1819	1-wire	EN 61131-2, type 1/3	16	-3…+5 V (EN 61131-2, type 1/3)	16 inputs
KL1809	1-wire	EN 61131-2, type 1/3	16	-3…+5 V (EN 61131-2, type 1/3)	16 inputs
KL1872	flat-ribbon cable	EN 61131-2, type 1/3	16	-3…+5 V (EN 61131-2, type 1/3)	16 inputs
KL1862	flat-ribbon cable	EN 61131-2, type 1/3	16	-3…+5 V (EN 61131-2, type 1/3)	16 inputs
KL1412	4-wire	EN 61131-2, type 1/3	2	-3…+5 V (EN 61131-2, type 1/3)	2 inputs
KL1402	4-wire	EN 61131-2, type 1/3	2	-3…+5 V (EN 61131-2, type 1/3)	2 inputs
KM1018	plug	EN 61131-2, type 1	64 (8 x 8)	-3…+5 V	64 inputs
KM1008	plug	EN 61131-2, type 1	64 (8 x 8)	-3…+5 V	64 inputs
KM1014	plug	EN 61131-2, type 1	32 (4 x 8)	-3…+5 V	32 inputs
KM1004	plug	EN 61131-2, type 1	32 (4 x 8)	-3…+5 V	32 inputs
KM1012	plug	EN 61131-2, type 1	16 (2 x 8)	-3…+5 V	16 inputs
KM1002	plug	EN 61131-2, type 1	16 (2 x 8)	-3…+5 V	16 inputs
KL1314	2-/3-wire	EN 61131-2, type 2	4	-3…+5 V (EN 61131-2, type 2)	4 inputs
KL1304	2-/3-wire	EN 61131-2, type 2	4	-3…+5 V (EN 61131-2, type 2)	4 inputs
KL1312	4-wire	EN 61131-2, type 2	2	-3…+5 V (EN 61131-2, type 2)	2 inputs
KL1302	4-wire	EN 61131-2, type 2	2	-3…+5 V (EN 61131-2, type 2)	2 inputs
KL1194	2-/3-wire	ground switching	4	18…30 V	4 inputs
KL1184	2-/3-wire	ground switching	4	18…30 V	4 inputs
KL1164	2-/3-wire	positive/ground switching	4	7.6…17.4 V	4 inputs

Common to all listed parts

Nominal voltage	24 V DC (-15%/+20%)
Electrical isolation	500 V (K-bus/field potential)
Configuration	no address or configuration setting
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
