EL/ELM7xxx | Compact drive technology Parts

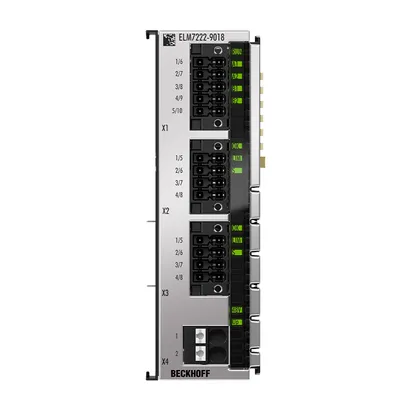

Beckhoff ELM7222-9018 – EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 8 A, OCT, STO, Safe Motion, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 8 A, OCT, STO, Safe Motion, TwinSAFE Logic

Beckhoff ELM7231-9016 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 16 A, OCT, STO, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 16 A, OCT, STO, TwinSAFE Logic

Beckhoff ELM7231-9018 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 16 A, OCT, STO, Safe Motion, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 16 A, OCT, STO, Safe Motion, TwinSAFE Logic

Beckhoff ELM7211-0010 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

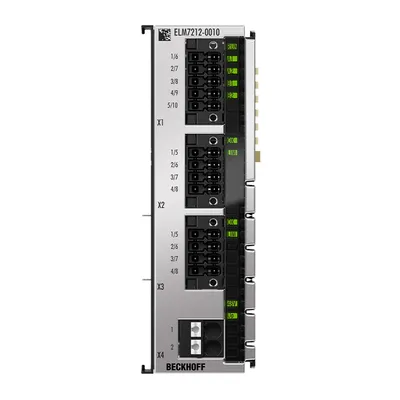

Beckhoff ELM7212-0010 – EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

Beckhoff

EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

Beckhoff ELM7221-0010 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 8 A, OCT

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 8 A, OCT

Beckhoff ELM7222-0010 – EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 8 A, OCT

Beckhoff

EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 8 A, OCT

Beckhoff ELM7231-0010 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 16 A, OCT

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 16 A, OCT

Beckhoff EL7062 – EtherCAT Terminal, 2-channel motion interface, stepper motor, 48 V DC, 3 A, with incremental encoder, 5 V DC

Beckhoff

EtherCAT Terminal, 2-channel motion interface, stepper motor, 48 V DC, 3 A, with incremental encoder, 5 V DC

Compare EL/ELM7xxx | Compact drive technology

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of inputs	Output current (rms)	Peak current (rms)	Power loss	Current consumption E-bus
ELM7222-9018	4 x digital input, 2 x feedback	2 x 8 A	max. 2 x 16 A for 1 s	typ. 10 W	120 mA
ELM7231-9016	2 x digital input, 1 x feedback	16 A	max. 30 A for 1 s	typ. 10 W	120 mA
ELM7231-9018	2 x digital input, 1 x feedback	16 A	max. 30 A for 1 s	typ. 10 W	120 mA
ELM7211-0010	2 x digital input, 1 x feedback	4.5 A	max. 9.0 A for 1 s	typ. 5 W	120 mA
ELM7212-0010	4 x digital input, 2 x feedback	2 x 4.5 A	max. 2 x 9.0 A for 1 s	typ. 7,5 W	120 mA
ELM7221-0010	2 x digital input, 1 x feedback	8 A	max. 16 A for 1 s	typ. 5 W	120 mA
ELM7222-0010	4 x digital input, 2 x feedback	2 x 8 A	max. 2 x 16 A for 1 s	typ. 10 W	120 mA
ELM7231-0010	2 x digital input, 1 x feedback	16 A	max. 30 A for 1 s	typ. 10 W	120 mA
EL7062	2 latch inputs, 2 x encoder	—	—	—	typ. 175 mA

Common to all listed parts

Technology	compact drive technology
Supply voltage electronics	24 V DC (via power contacts)
Supply voltage power	8…48 V DC (external)
Current controller frequency	32 kHz
Distributed clocks	yes
Electrical isolation	500 V (E-bus/field potential)
Operating temperature	0…55°C
Storage temperature	-25…+85°C
