EL4xxx | Analog output Parts




EtherCAT Terminal, 1-channel analog output, current, 0/4…20 mA, 16 bit, single-ended, HART, Ex i

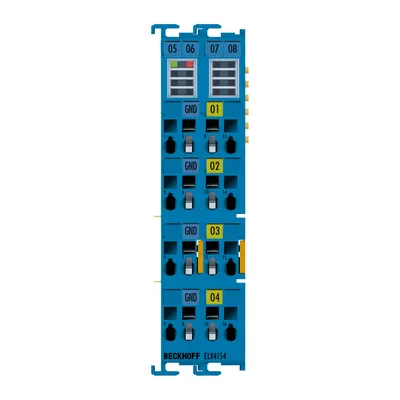

EtherCAT Terminal, 4-channel analog output, current, 0/4…20 mA, 16 bit, single-ended, Ex i

EtherCAT Terminal, 4-channel analog output, voltage, ±10 V, 16 bit, externally calibrated

EtherCAT Terminal, 2-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, 2 ksps

EtherCAT Terminal, 8-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, 2 ksps

EtherCAT Terminal, 4-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, 2 ksps

EtherCAT Terminal, 4-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, 10 ksps

EtherCAT Terminal, 2-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, differential, 10 ksps, electrically isolated
Compare EL4xxx | Analog output
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of outputs | Current consumption E-bus | Weight | Operating temperature | Approvals/markings |
|---|---|---|---|---|---|
| EL4112-0010 | 2 | typ. 110 mA | approx. 65 g | -25…+55°C | CE, CCC, UL, ATEX, IECEx |
| EL4712 | 2 | typ. 100 mA | approx. 65 g | -25…+55°C | CE, CCC, UL, ATEX, IECEx |
| EL4732 | 2 | typ. 180 mA | approx. 50 g | -25…+60°C | CE, CCC, UL, ATEX, IECEx, cFMus |
| ELX4181 | 1 (single-ended) | typ. 95 mA | approx. 60 g | -25…+60°C | CE, UL, ATEX, IECEx, cFMus, CCC |
| ELX4154 | 4 (single-ended) | typ. 60 mA | approx. 100 g | -25…+60°C | CE, UL, ATEX, IECEx, cFMus, CCC |
| EL4134-0030 | 4 | typ. 190 mA | approx. 65 g | -25…+60°C | CE, CCC, UL, ATEX, IECEx |
| EL4072 | 2 | typ. 100 mA | approx. 65 g | -25…+55°C | CE |
| EL4078 | 8 | typ. 135 mA | approx. 65 g | -25…+55°C | CE |
| EL4074 | 4 | typ. 110 mA | approx. 65 g | -25…+55°C | CE |
| EL4174 | 4 | typ. 90 mA | approx. 65 g | 0…55°C | CE |
| EL4172 | 2 | typ. 90 mA | approx. 65 g | 0…55°C | CE |
Common to all listed parts
| Resolution | 16 bit (incl. sign) |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Stripping length | 8…9 mm |
