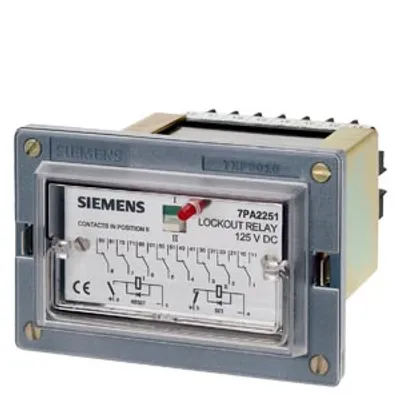

7PA22 - Bistable Quick-Operating Relay Parts
Compare 7PA22 - Bistable Quick-Operating Relay
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | supply voltage / at DC / rated value | width | height | depth | design of the snap-on socket base |
|---|---|---|---|---|---|
| 7PA2281-0 | 48 V | 90 mm | 50 mm | 112 mm | without |
| 7PA2261-1 | 30 V | 120 mm | 80 mm | 146.5 mm | flush-mounting socket |
| 7PA2261-0 | 30 V | 90 mm | 50 mm | 112 mm | without |
| 7PA2231-0 | 110 V | 120 mm | 80 mm | 146.5 mm | without |
| 7PA2221-1 | 60 V | 120 mm | 80 mm | 146.5 mm | flush-mounting socket |
| 7PA2221-0 | 60 V | 90 mm | 50 mm | 112 mm | without |
| 7PA2211-1 | 24 V | 120 mm | 80 mm | 146.5 mm | flush-mounting socket |
| 7PA2251-1 | 125 V | 120 mm | 80 mm | 146.5 mm | flush-mounting socket |
Common to all listed parts
| type of voltage | DC |
| continuous current | 10 A |
| switching behavior | bistable |
| design of the switching function / positively driven | Yes |
| response time | 10 ms |
| product component / LED | No |
| manual RESET | Yes |
| number of NC contacts | 0 |
