Manifold directional control valves Parts

Showing 1,249–1,272 of 3,143 parts
Danfoss 02-109980 – DG4V 3 22A M U HL7 60, DG4V322AMUHL760
Danfoss
02-109980

DG4V 3 22A M U HL7 60, DG4V322AMUHL760

Danfoss 02-109979 – DG4V 3 2AL M U HL7 60, DG4V32ALMUHL760
Danfoss
02-109979

DG4V 3 2AL M U HL7 60, DG4V32ALMUHL760

Danfoss 02-109978 – DG4V 3 6C M U HL7 60, DG4V36CMUHL760
Danfoss
02-109978

DG4V 3 6C M U HL7 60, DG4V36CMUHL760

Danfoss 02-109977 – DG4V 3 7C M U HL7 60, DG4V37CMUHL760
Danfoss
02-109977

DG4V 3 7C M U HL7 60, DG4V37CMUHL760

Danfoss 02-109926 – DG4V 3 2A M U H7 60 EN38, DG4V32AMUH760EN38
Danfoss
02-109926

DG4V 3 2A M U H7 60 EN38, DG4V32AMUH760EN38

Danfoss 02-109560 – DG4V 3 0C H M U C6 60, DG4V30CHMUC660
Danfoss
02-109560

DG4V 3 0C H M U C6 60, DG4V30CHMUC660

Danfoss 02-109559 – DG4V 3 6B H M U C6 60, DG4V36BHMUC660
Danfoss
02-109559

DG4V 3 6B H M U C6 60, DG4V36BHMUC660

Danfoss 02-109533 – DG4V 3 56C MU G7 60, DG4V356CMUG760
Danfoss
02-109533

DG4V 3 56C MU G7 60, DG4V356CMUG760

Danfoss 02-109513 – DG4V 3 6C H M U C6 60, DG4V36CHMUC660
Danfoss
02-109513

DG4V 3 6C H M U C6 60, DG4V36CHMUC660

Danfoss 02-109504 – DG4V 3 2BL VM U H7 60, DG4V32BLVMUH760
Danfoss
02-109504

DG4V 3 2BL VM U H7 60, DG4V32BLVMUH760

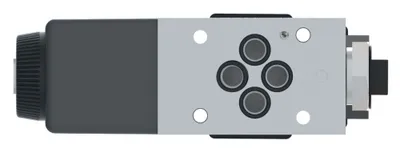

Danfoss 02-109495 – DG4V-3-22A-M-FPA5WL-B6-6 0, DG4V322AMFPA5WLB660
Danfoss
02-109495

DG4V-3-22A-M-FPA5WL-B6-6 0, DG4V322AMFPA5WLB660

Danfoss 02-109494 – DG4V36CMFPA5WLB660, DG4V36CMFPA5WLB660
Danfoss
02-109494

DG4V36CMFPA5WLB660, DG4V36CMFPA5WLB660

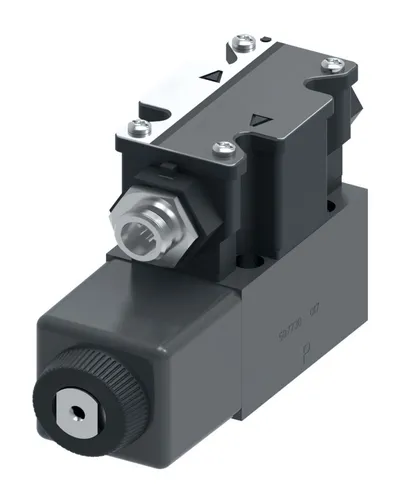

Danfoss 02-109493 – DG4V 3 2A M FPA5WL B6 60, DG4V32AMFPA5WLB660
Danfoss
02-109493

DG4V 3 2A M FPA5WL B6 60, DG4V32AMFPA5WLB660

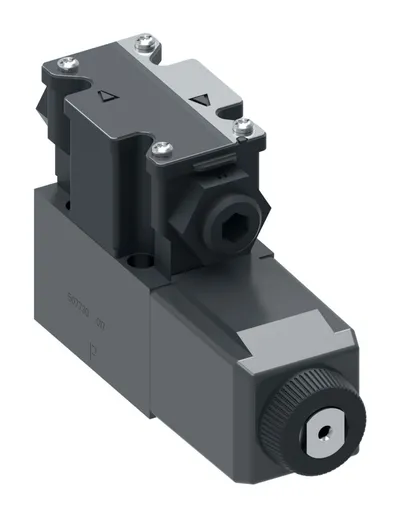

Danfoss 02-109487 – DG4V 3 2AL M FTWL H7 60, DG4V32ALMFTWLH760
Danfoss
02-109487

DG4V 3 2AL M FTWL H7 60, DG4V32ALMFTWLH760

Danfoss 02-109387 – DG4V 3 35AL VM U H7 60, DG4V335ALVMUH760
Danfoss
02-109387

DG4V 3 35AL VM U H7 60, DG4V335ALVMUH760

Danfoss 02-109322 – DG4V 3 0C M U EJ7 60, DG4V30CMUEJ760
Danfoss
02-109322

DG4V 3 0C M U EJ7 60, DG4V30CMUEJ760

Danfoss 02-109320 – DG4V 3 6BL M U G7 60, DG4V36BLMUG760
Danfoss
02-109320

DG4V 3 6BL M U G7 60, DG4V36BLMUG760

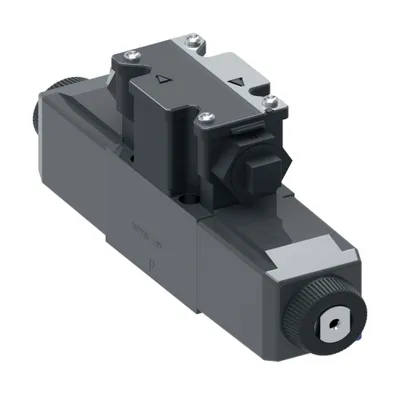

Danfoss 02-109255 – DG4V 3 2C M FPA5WL B6 60, DG4V32CMFPA5WLB660
Danfoss
02-109255

DG4V 3 2C M FPA5WL B6 60, DG4V32CMFPA5WLB660

Danfoss 02-109154 – DG4V 3 7C MU D6 60, DG4V37CMUD660
Danfoss
02-109154

DG4V 3 7C MU D6 60, DG4V37CMUD660

Danfoss 02-109068 – DG4V-3-35A-VM-U-B6-60, DG4V335AVMUB660
Danfoss
02-109068

DG4V-3-35A-VM-U-B6-60, DG4V335AVMUB660

Danfoss 02-108942 – DG4V 3 0C H M U A6 60, DG4V30CHMUA660
Danfoss
02-108942

DG4V 3 0C H M U A6 60, DG4V30CHMUA660

Danfoss 02-108880 – DG4V 3 52C VM U H7 60, DG4V352CVMUH760
Danfoss
02-108880

DG4V 3 52C VM U H7 60, DG4V352CVMUH760

Danfoss 02-108839 – DG4V 3 2C H M U D6 60, DG4V32CHMUD660
Danfoss
02-108839

DG4V 3 2C H M U D6 60, DG4V32CHMUD660

Danfoss 02-108812 – DG4V 3 31C MU A6 60, DG4V331CMUA660
Danfoss
02-108812

DG4V 3 31C MU A6 60, DG4V331CMUA660

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNCoil RatingElectrical connectionModel Code 1Spool TypeSpring Arrangement
02-10998024 VDCISO 4400 (DIN 43650) connectorDG4V322AMUHL760Spool 22Spring offset end to end
02-10997924 VDCISO 4400 (DIN 43650) connectorDG4V32ALMUHL760Spool 2Spring offset end to end LH
02-10997824 VDCISO 4400 (DIN 43650) connectorDG4V36CMUHL760Spool 6Spring centred
02-10997724 VDCISO 4400 (DIN 43650) connectorDG4V37CMUHL760Spool 7Spring centred
02-10992624 VDCISO 4400 (DIN 43650) connectorDG4V32AMUH760EN38Spool 2Spring offset end to end
02-109560220 VAC 50HzISO 4400 (DIN 43650) connectorDG4V30CHMUC660Spool 0Spring centred
02-109559220 VAC 50HzISO 4400 (DIN 43650) connectorDG4V36BHMUC660Spool 6Spring offset end to centre
02-10953312 VDCISO 4400 (DIN 43650) connectorDG4V356CMUG760Spool 56Spring centred
02-109513220 VAC 50HzISO 4400 (Din 43650) connectorDG4V36CHMUC660Spool 6Spring centred
02-10950424 VDCISO 4400 (DIN 43650) connectorDG4V32BLVMUH760Spool 2Spring offset end to centre LH
02-109495110 VAC 50Hz/120 VAC 60Hz5-Pin connectorDG4V322AMFPA5WLB660Spool 22Spring offset end to end
02-109494110 VAC 50Hz/120 VAC 60Hz5-Pin connectorDG4V36CMFPA5WLB660Spool 6Spring centred
02-109493110 VAC 50Hz/120 VAC 60Hz5-Pin connectorDG4V32AMFPA5WLB660Spool 2Spring offset end to end
02-10948724 VDCFly.lead term. block 1/2" NPTDG4V32ALMFTWLH760Spool 2Spring offset end to end LH
02-10938724 VDCISO 4400 (DIN 43650) connectorDG4V335ALVMUH760Spool 35Spring offset end to end LH
02-109322196 VDCISO 4400 (DIN 43650) connectorDG4V30CMUEJ760Spool 0Spring centred
02-10932012 VDCISO 4400 (DIN 43650) connectorDG4V36BLMUG760Spool 6Spring offset end to centre LH
02-109255110 VAC 50Hz/120 VAC 60Hz5-Pin connectorDG4V32CMFPA5WLB660Spool 2Spring centred
02-109154220 VAC 50 Hz/240 VAC 60 HzISO 4400 (DIN 43650) connectorDG4V37CMUD660Spool 7Spring centred
02-109068110 VAC 50Hz/120 VAC 60HzISO 4400 (DIN 43650) connectorDG4V335AVMUB660Spool 35Spring offset end to end
02-108942110 VAC 50HzISO 4400 (DIN 43650) connectorDG4V30CHMUA660Spool 0Spring centred
02-10888024 VDCISO 4400 (DIN 43650) connectorDG4V352CVMUH760Spool 52Spring centred
02-108839220 VAC 50 Hz/240 VAC 60 HzISO 4400 (DIN 43650) connectorDG4V32CHMUD660Spool 2Spring centred
02-108812110 VAC 50HzISO 4400 (DIN 43650) connectorDG4V331CMUA660Spool 31Spring centred

Common to all listed parts

Actuation typeSolenoid operated
Design Series60 Series
Flow rate upto GPM21.0
Flow rate upto LPM80.0
Fluid cleanliness19/17/14 micron
InterfaceISO4401-03
PerformanceHigh performance
Seal typeViton
