Home / Hydraulic valves / Directional control valves / Manifold directional control valves

Manifold directional control valves Parts

Showing 1,225–1,248 of 3,143 parts

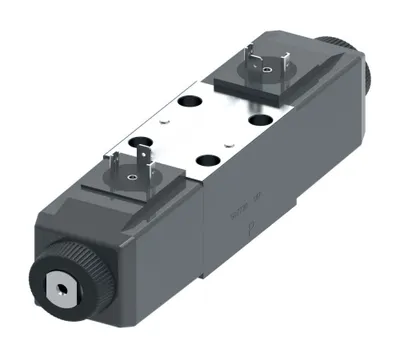

Danfoss 02-110556 – DG4V 3 2N H M U P7 60, DG4V32NHMUP760
Danfoss
02-110556

DG4V 3 2N H M U P7 60, DG4V32NHMUP760

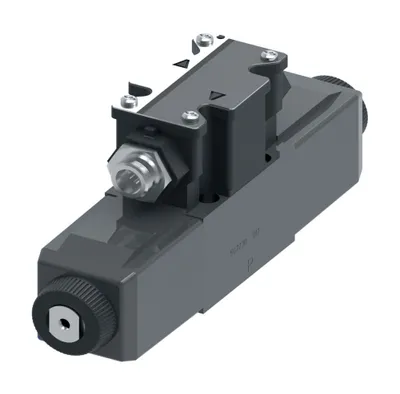

Danfoss 02-110547 – DG4V 3 2C M FPA5W H7 60, DG4V32CMFPA5WH760
Danfoss
02-110547

DG4V 3 2C M FPA5W H7 60, DG4V32CMFPA5WH760

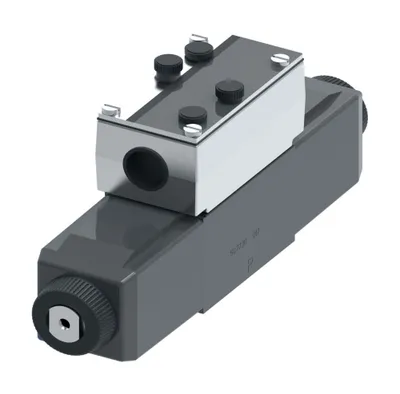

Danfoss 02-110541 – DG4V 3 2N M FPB WL B6 60, DG4V32NMFPBWLB660
Danfoss
02-110541

DG4V 3 2N M FPB WL B6 60, DG4V32NMFPBWLB660

Danfoss 02-110489 – KDG4V 5 2C70N Z M U H7 30, KDG4V52C70NZMUH730
Danfoss
02-110489

KDG4V 5 2C70N Z M U H7 30, KDG4V52C70NZMUH730

Danfoss 02-110487 – DG4V 3 0B M U EK6 60, DG4V30BMUEK660
Danfoss
02-110487

DG4V 3 0B M U EK6 60, DG4V30BMUEK660

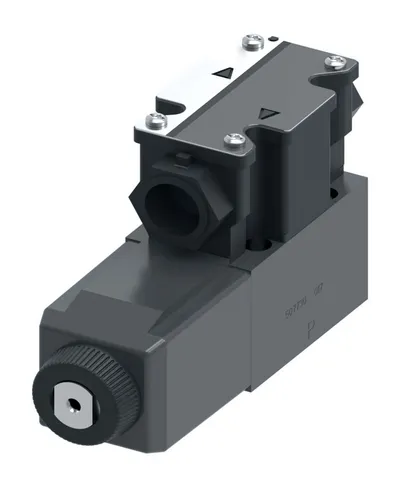

Danfoss 02-110416 – DG4V 3 2A M FTWL B6 60, DG4V32AMFTWLB660
Danfoss
02-110416

DG4V 3 2A M FTWL B6 60, DG4V32AMFTWLB660

Danfoss 02-110415 – DG4V 3 2N M FTWL B6 60, DG4V32NMFTWLB660
Danfoss
02-110415

DG4V 3 2N M FTWL B6 60, DG4V32NMFTWLB660

Danfoss 02-110359 – DG4V 3 6C M FTWL B6 60, DG4V36CMFTWLB660
Danfoss
02-110359

DG4V 3 6C M FTWL B6 60, DG4V36CMFTWLB660

Danfoss 02-110353 – DG4V 3 2C M FTWL H7 60, DG4V32CMFTWLH760
Danfoss
02-110353

DG4V 3 2C M FTWL H7 60, DG4V32CMFTWLH760

Danfoss 02-110345 – DG4V 3 2C H M U B6 60, DG4V32CHMUB660
Danfoss
02-110345

DG4V 3 2C H M U B6 60, DG4V32CHMUB660

Danfoss 02-110344 – VALVE DG4V-3-2AL-H-M-U-B6-60, DG4V32ALHMUB660
Danfoss
02-110344

VALVE DG4V-3-2AL-H-M-U-B6-60, DG4V32ALHMUB660

Danfoss 02-110334 – DG4V 3 22A M U P7 60, DG4V322AMUP760
Danfoss
02-110334

DG4V 3 22A M U P7 60, DG4V322AMUP760

Danfoss 02-110279 – DG4V 3 52B M U H7 60, DG4V352BMUH760
Danfoss
02-110279

DG4V 3 52B M U H7 60, DG4V352BMUH760

Danfoss 02-110253 – DG4V-3-2C-H-M-U-A6-60, DG4V32CHMUA660
Danfoss
02-110253

DG4V-3-2C-H-M-U-A6-60, DG4V32CHMUA660

Danfoss 02-110246 – DG4V32NMUDJ760, DG4V32NMUDJ760
Danfoss
02-110246

DG4V32NMUDJ760, DG4V32NMUDJ760

Danfoss 02-110106 – DG4V 3 7B M U A6 60, DG4V37BMUA660
Danfoss
02-110106

DG4V 3 7B M U A6 60, DG4V37BMUA660

Danfoss 02-110092 – DG4V 3 2C Z M U P7 60, DG4V32CZMUP760
Danfoss
02-110092

DG4V 3 2C Z M U P7 60, DG4V32CZMUP760

Danfoss 02-110056 – DG4V 3 56C MU A6 60, DG4V356CMUA660
Danfoss
02-110056

DG4V 3 56C MU A6 60, DG4V356CMUA660

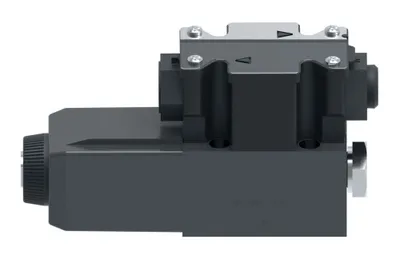

Danfoss 02-110042 – DG4V 3 24A M FTWL B6 60, DG4V324AMFTWLB660
Danfoss
02-110042

DG4V 3 24A M FTWL B6 60, DG4V324AMFTWLB660

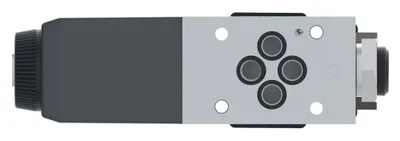

Danfoss 02-110023 – VALVE DG4V-3-2B-M-FW-B6-60, DG4V32BMFWB660
Danfoss
02-110023

VALVE DG4V-3-2B-M-FW-B6-60, DG4V32BMFWB660

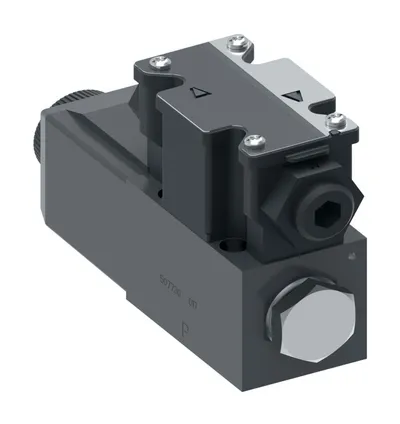

Danfoss 02-110022 – DG4V 3 2A M S5 FTWL H2 6 0, DG4V32AMS5FTWLH260
Danfoss
02-110022

DG4V 3 2A M S5 FTWL H2 6 0, DG4V32AMS5FTWLH260

Danfoss 02-110006 – DG4V 3 2A M S5 FW B2 60, DG4V32AMS5FWB260
Danfoss
02-110006

DG4V 3 2A M S5 FW B2 60, DG4V32AMS5FWB260

Danfoss 02-110005 – DG4V-3-2A-M-S5-FTWL-B2-6 0, DG4V32AMS5FTWLB260
Danfoss
02-110005

DG4V-3-2A-M-S5-FTWL-B2-6 0, DG4V32AMS5FTWLB260

Danfoss 02-109993 – DG4V 3 2AL H VM U H7 60, DG4V32ALHVMUH760
Danfoss
02-109993

DG4V 3 2AL H VM U H7 60, DG4V32ALHVMUH760

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNCoil RatingElectrical connectionModel Code 1Spool TypeSpring Arrangement
02-110556110 VDCISO 4400 (DIN 43650) connectorDG4V32NHMUP760Spool 2No spring detented
02-11054724 VDC5-Pin connectorDG4V32CMFPA5WH760Spool 2Spring centred
02-110541110 VAC 50Hz/120 VAC 60HzInstaplug male & female recep.DG4V32NMFPBWLB660Spool 2No spring detented
02-110489—ISO 4400 (Din 43650) connectorKDG4V52C70NZMUH730All Ports Blocked—
02-110487115 VAC 60HzISO 4400 (DIN 43650) connectorDG4V30BMUEK660Spool 0Spring offset end to centre
02-110416110 VAC 50Hz/120 VAC 60HzFly.lead term. block 1/2" NPTDG4V32AMFTWLB660Spool 2Spring offset end to end
02-110415110 VAC 50Hz/120 VAC 60HzFly.lead term. block 1/2" NPTDG4V32NMFTWLB660Spool 2No spring detented
02-110359110 VAC 50Hz/120 VAC 60HzFly.lead term. block 1/2" NPTDG4V36CMFTWLB660Spool 6Spring centred
02-11035324 VDCFly.lead term. block 1/2" NPTDG4V32CMFTWLH760Spool 2Spring centred
02-110345110 VAC 50Hz/120 VAC 60HzISO 4400 (DIN 43650) connectorDG4V32CHMUB660Spool 2Spring centred
02-110344110 VAC 50Hz/120 VAC 60HzISO 4400 (DIN 43650) connectorDG4V32ALHMUB660Spool 2Spring offset end to end LH
02-110334110 VDCISO 4400 (DIN 43650) connectorDG4V322AMUP760Spool 22Spring offset end to end
02-11027924 VDCISO 4400 (DIN 43650) connectorDG4V352BMUH760Spool 52Spring offset end to centre
02-110253110 VAC 50HzISO 4400 (DIN 43650) connectorDG4V32CHMUA660Spool 2Spring centred
02-11024698 VDCISO 4400 (DIN 43650) connectorDG4V32NMUDJ760Spool 2No spring detented
02-110106110 VAC 50HzISO 4400 (DIN 43650) connectorDG4V37BMUA660Spool 7Spring offset end to centre
02-110092110 VDCISO 4400 (DIN 43650) connectorDG4V32CZMUP760Spool 2Spring centred
02-110056110 VAC 50HzISO 4400 (DIN 43650) connectorDG4V356CMUA660Spool 56Spring centred
02-110042110 VAC 50Hz/120 VAC 60HzFly.lead term. block 1/2" NPTDG4V324AMFTWLB660Spool 24Spring offset end to end
02-110023110 VAC 50Hz/120 VAC 60HzFlying lead 1/2" NPT housingDG4V32BMFWB660Spool 2Spring offset end to centre
02-11002224 VDCFly.lead term. block 1/2" NPTDG4V32AMS5FTWLH260Spool 2Spring offset end to end
02-110006110 VAC 50Hz/120 VAC 60HzFlying lead 1/2" NPT housingDG4V32AMS5FWB260Spool 2Spring offset end to end
02-110005110 VAC 50Hz/120 VAC 60HzFly.lead term. block 1/2" NPTDG4V32AMS5FTWLB260Spool 2Spring offset end to end
02-10999324 VDCISO 4400 (DIN 43650) connectorDG4V32ALHVMUH760Spool 2Spring offset end to end LH

Common to all listed parts

Seal typeViton
Special featuresNone
StageSingle stage
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
