Manifold directional control valves Parts
Compare Manifold directional control valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A Port flow LPM | B Port flow LPM | B Port flow USGPM | Model Code 1 | Spool Type |
|---|---|---|---|---|---|
| 02-333631 | 80.00 | 80.00 | 21.00 | KDG5V533C80NHMUH110 | Bleed A and B to T |
| 02-333561 | 170.00 | 170.00 | 45.00 | KDG5V733C170NEXHVMUH110 | Bleed A and B to T |
| 02-333552 | 180.00 | 180.00 | 48.00 | KDG5V72C180NTHMUHA110 | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| 02-333521 | 20.00 | 20.00 | 5.30 | KDG4V333C20NVMUH760 | P blocked, A & B to tank |

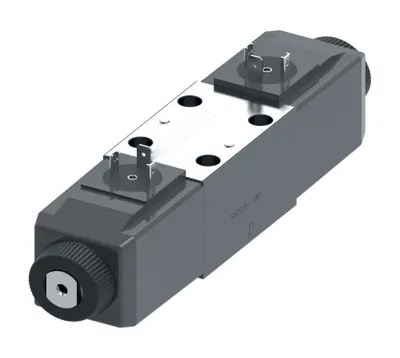

| 02-333437 | 3.00 | 3.00 | 0.80 | KDG4V333C03FMUH760 | P blocked, A & B to tank |
| 02-333409 | — | — | — | DG4V38BHVMUG761 | Spool 8 |
| 02-333306 | 90.00 | 90.00 | 24.00 | KDG5V52C90NMUHA110 | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| 02-333302 | 180.00 | 100.00 | 26.40 | KDG5V72C180N100XTMUH110 | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| 02-333238 | — | — | — | DG4V32CMFTWLD7H760 | Spool 2 |
| 02-333190 | 3.00 | 3.00 | 0.80 | KDG4V32C03FHMUHA760 | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| 02-333163 | — | — | — | DG4V30AMUHL760 | Spool 0 |
| 02-333103 | — | — | — | DG4V30BHMUB660 | Spool 0 |

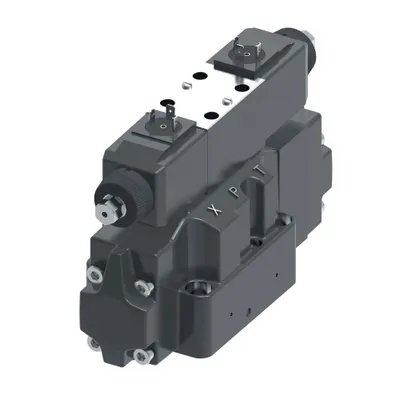

| 02-333087 | 170.00 | 170.00 | 45.00 | KDG5V733C170NHMUHA110 | Bleed A and B to T |
| 02-333024 | 13.00 | 13.00 | 3.40 | KDG4V333C13NHMUG760 | P blocked, A & B to tank |
| 02-332985 | 7.00 | 7.00 | 1.80 | KDG4V32C07NHVMUH760 | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| 02-332766 | 3.00 | 3.00 | 0.80 | KDG4V333C03FVMUH760 | P blocked, A & B to tank |
| 02-332758 | 170.00 | 170.00 | 45.00 | KDG5V733C170NTMUH110 | Bleed A and B to T |

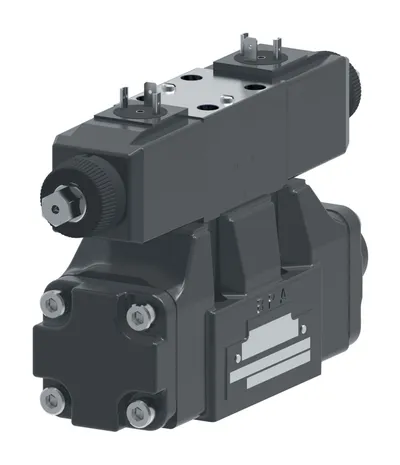

| 02-332675 | 80.00 | 80.00 | 21.00 | KDG5V533C80NEMUH110 | Bleed A and B to T |

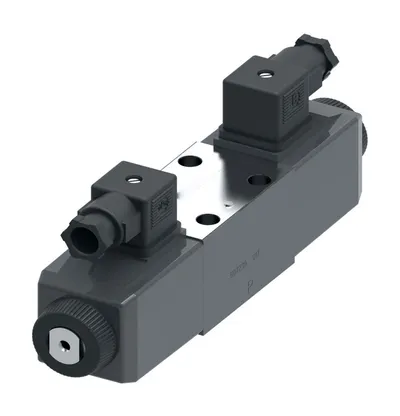

| 02-332665 | — | — | — | DG4V32CHMU1D660EN38 | Spool 2 |

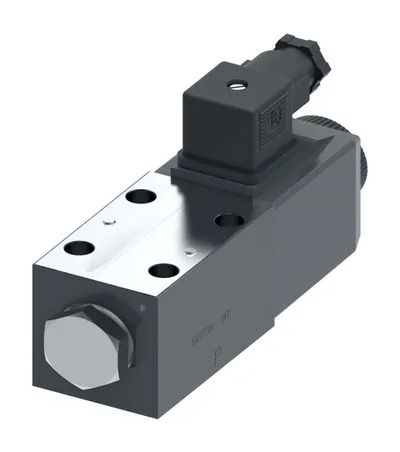

| 02-332581 | — | — | — | DG4V32ALMU1H760 | Spool 2 |

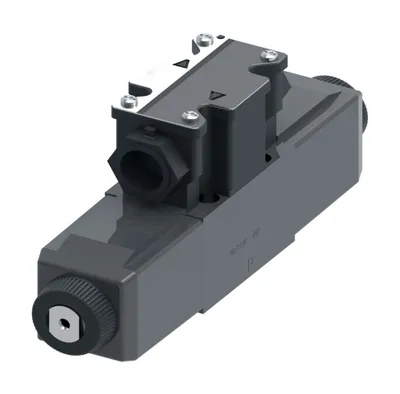

| 02-332558 | — | — | — | DG4V352CMFTWLB660 | Spool 52 |
| 02-332546 | — | — | — | DG4V36CMFTWLD7H760 | Spool 6 |

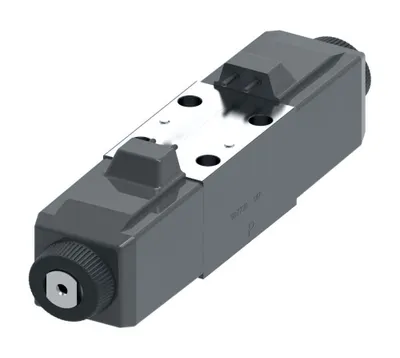

| 02-332497 | — | — | — | DG4V36CHMPH760EN96 | Spool 6 |

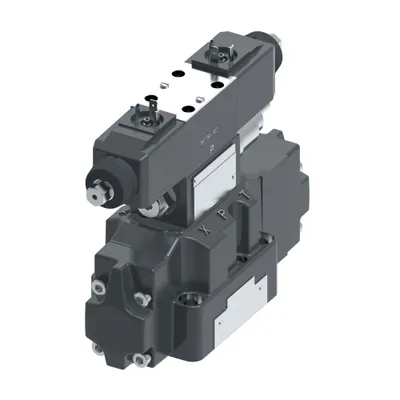

| 02-332469 | 170.00 | 170.00 | 45.00 | KDG5V733C170NXTMUH110 | Bleed A and B to T |
