Manifold directional control valves Parts

Danfoss

02-414076-UL

DG4V 3 7B VM U H7 60"UL", DG4V37BVMUH760"UL"

Danfoss

02-414048

KDG4V3-2C20N-M-KUP5-H7-60-EN121, KDG4V32C20NMKUP5H760EN121

Danfoss

02-414017

DG4V 3 31B M KUP4 G7 60EN53, DG4V331BMKUP4G760EN53

Danfoss

02-413987

DG4V-3-8BL-VM-KUP5D2-G7-61, DG4V38BLVMKUP5D2G761

Danfoss

02-413986

DG4V 3 2C M KUP5D2 G7 60, DG4V32CMKUP5D2G760

Danfoss

02-413985

DG4V 3 6C M KUP5D2 G7 60, DG4V36CMKUP5D2G760

Danfoss

02-413687

KDG5V-8-33C330N-X-T-H-M-U-H1-20, KDG5V833C330NXTHMUH120

Danfoss

02-413366

KDG5V-8-33C330N-X-VM-U-H1-20, KDG5V833C330NXVMUH120

Danfoss

02-413332

DG4V 3 2A M U B6 60 P10, DG4V32AMUB660P10

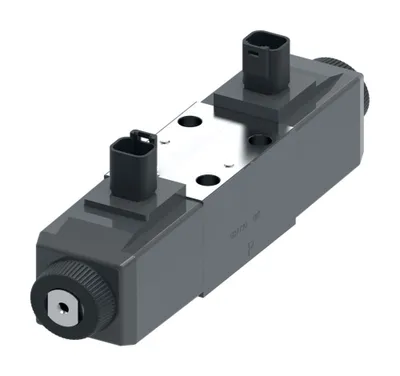

Danfoss

02-413208

KDG4V-3-33C27N-M-KUP5-G7-60, KDG4V333C27NMKUP5G760

Danfoss

02-413166

KDG5V-8-33C330N200-X-T-VM-U-H1-20, KDG5V833C330N200XTVMUH120

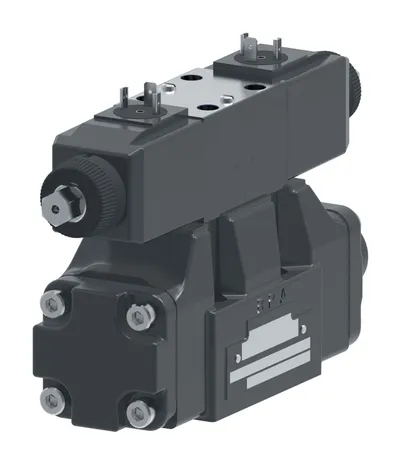

Danfoss

02-413139

VALVE KDG5V-5-33C60N40-VM-U-H1-10, KDG5V533C60N40VMUH110

Danfoss

02-412969

KDG5V-8-33C330N-X-T-M-U-H1-20, KDG5V833C330NXTMUH120

Danfoss

02-412805

DG4V-3-2A3-M-U-HH7-60, DG4V32A3MUHH760

Danfoss

02-412763

DG4V-5-6BL-VM-U-EK6-20, DG4V56BLVMUEK620

Danfoss

02-412759

KDG5V-8-33C330N200-M-U-H1-20, KDG5V833C330N200MUH120

Danfoss

02-412702

DG4V 3M 2C M KUP5D G7 60, DG4V3M2CMKUP5DG760

Danfoss

02-412684

DG4V-3-20C-M-KUP5D2-H7-60, DG4V320CMKUP5D2H760

Danfoss

02-412660

DG4V 3 6C M KUP5D2 H7 60, DG4V36CMKUP5D2H760

Danfoss

02-412612

DG4V 3 2AL M U H7 60 P13, DG4V32ALMUH760P13

Danfoss

02-412611

KDG5V-8-33C330N-X-T-VM-U-H1-20, KDG5V833C330NXTVMUH120

Danfoss

02-412544

DG4V-3-2A-W-M-U-H7-60-EN38, DG4V32AWMUH760EN38

Danfoss

02-412536

DG4V-3-0C3-M-KUP4D1-HH7-60-EN137, DG4V30C3MKUP4D1HH760EN137

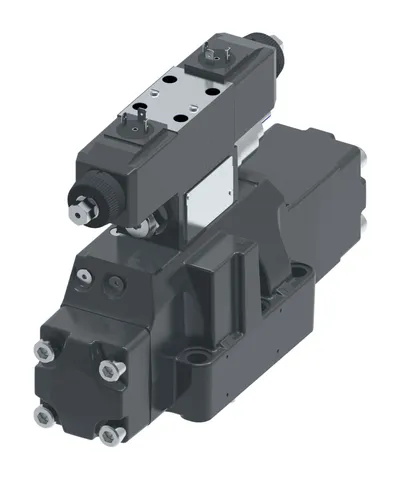

Danfoss

02-412529

KDG5V-8-33C330N200-EX-H-M-U-H1-20, KDG5V833C330N200EXHMUH120

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product height in	Product length in	Product length mm	Spool Type	Model Code 1
02-414076-UL	3.420	6.140	155.956	Spool 7	—
02-414048	3.400	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32	KDG4V32C20NMKUP5H760EN121
02-414017	3.420	6.140	155.956	Spool 31	DG4V331BMKUP4G760EN53
02-413987	3.570	6.140	155.956	Spool 8	DG4V38BLVMKUP5D2G761
02-413986	3.570	8.660	219.964	Spool 2	DG4V32CMKUP5D2G760
02-413985	3.570	8.660	219.964	Spool 6	DG4V36CMKUP5D2G760
02-413687	10.100	9.600	243.840	Bleed A and B to T	KDG5V833C330NXTHMUH120
02-413366	10.100	9.600	243.840	Bleed A and B to T	KDG5V833C330NXVMUH120
02-413332	3.420	5.750	146.050	Spool 2	DG4V32AMUB660P10
02-413208	3.400	9.370	237.998	P blocked, A & B to tank	KDG4V333C27NMKUP5G760
02-413166	10.100	9.600	243.840	Bleed A and B to T	KDG5V833C330N200XTVMUH120
02-413139	6.900	9.400	238.760	Bleed A and B to T	KDG5V533C60N40VMUH110
02-412969	10.100	9.600	243.840	Bleed A and B to T	KDG5V833C330NXTMUH120
02-412805	3.420	6.140	155.956	Spool 2	DG4V32A3MUHH760
02-412763	4.530	7.170	182.118	Spool 6	DG4V56BLVMUEK620
02-412759	8.470	9.400	238.760	Bleed A and B to T	KDG5V833C330N200MUH120
02-412702	2.690	8.740	221.996	Spool 2	DG4V3M2CMKUP5DG760
02-412684	3.570	8.660	219.964	Spool 20	DG4V320CMKUP5D2H760
02-412660	3.570	8.660	219.964	Spool 6	DG4V36CMKUP5D2H760
02-412612	3.420	6.140	155.956	Spool 2	DG4V32ALMUH760P13
02-412611	10.100	9.600	243.840	Bleed A and B to T	KDG5V833C330NXTVMUH120
02-412544	3.420	6.140	155.956	Spool 2	DG4V32AWMUH760EN38
02-412536	3.420	8.660	219.964	Spool 0	DG4V30C3MKUP4D1HH760EN137
02-412529	10.100	9.600	243.840	Bleed A and B to T	KDG5V833C330N200EXHMUH120

Common to all listed parts

Working temp min C	-20
Working temp min F	-4
