Danfoss 02-414017

DG4V 3 31B M KUP4 G7 60EN53, DG4V331BMKUP4G760EN53

MPN: 02-414017
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

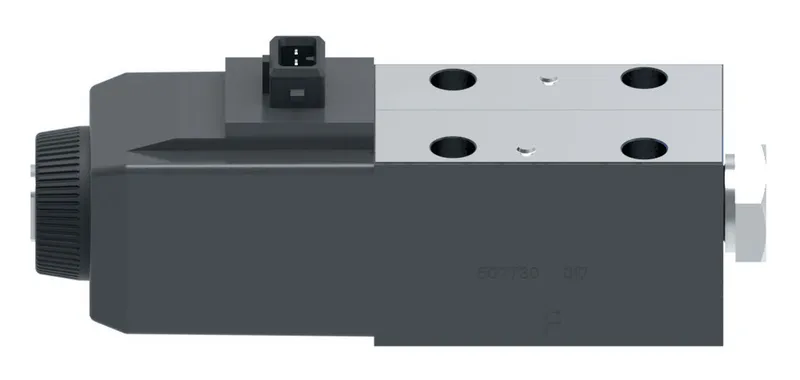

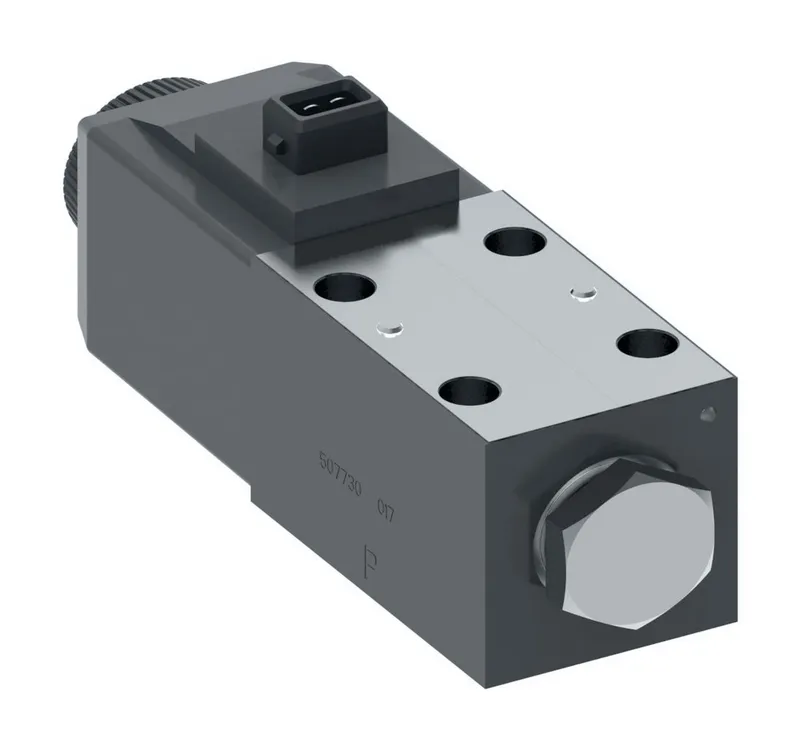

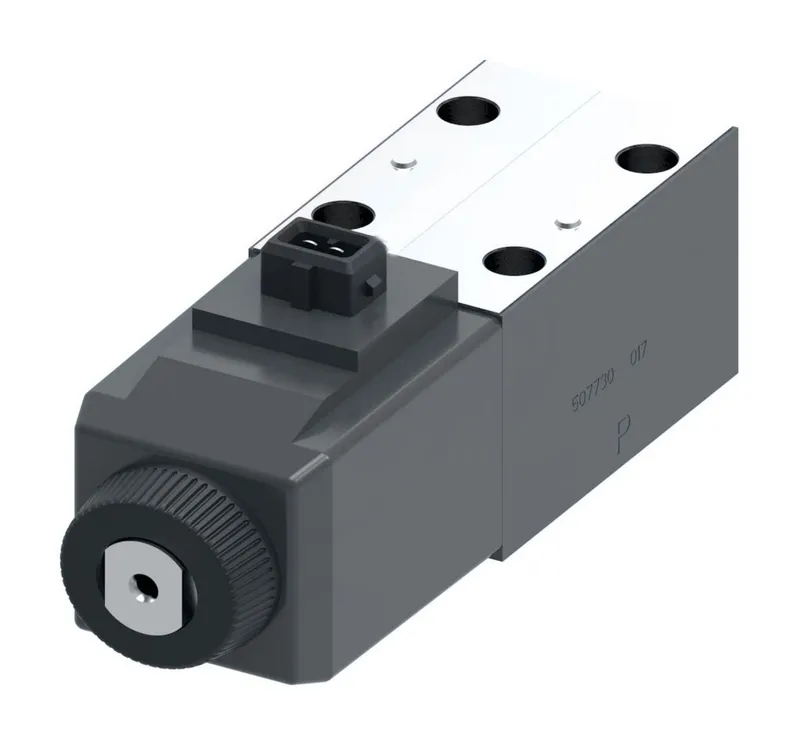

What is the Danfoss 02-414017?

Danfoss DG4V 3 31B M KUP4 G7 60EN53, DG4V331BMKUP4G760EN53, manufacturer part number 02-414017. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	12 VDC
Design Series	60 Series
Electrical Connection	Junior Timer (AMP) connector
Energ Time	45-28 ms
Flow rate upto GPM	21.0
Flow rate upto LPM	80.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V331BMKUP4G760EN53
Performance	High performance
Power Consumption	30 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.420
Product length in	6.140
Product length mm	155.956
Product width in	1.840
Product width mm	46.736
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	Special for Bucher
Spool Position Monitor	No
Spool Type	Spool 31
Spring Arrangement	Spring offset end to centre
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
