Wall mounting Parts

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 2.2 A, SafeMOTION

B&R

ACOPOS P3 servo drive , 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 4.5 A, SafeMOTION

B&R

ACOPOS P3 servo drive , 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 8.8 A, SafeMOTION

B&R

ACOPOS P3 servo drive , 1x 110-230 VAC, 3x 200-230 VAC

B&R

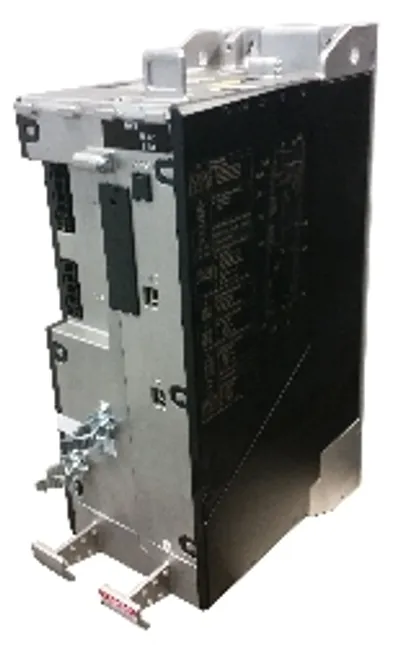

ACOPOS P3 servo drive, 3x200-480 VAC, 2x 17 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 22 A, SafeMOTION

Compare Wall mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installed load	Inrush current	Accuracy of the safe current – SIL 2 / PL d / Cat. 2	Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	Peak current per motor connection
8EI2X2HWDS0.XXXX-1	Max. 5 kVA	Max. 45 A	0.555 A	0.22 A eff per 1000 m	6 / 6 A eff
8EI2X2MWDS0.XXXX-1	Max. 2.5 kVA	Max. 22 A	0.555 A	0.22 A eff per 1000 m	6 / 6 A eff
8EI4X5HWDS0.XXXX-1	Max. 10 kVA	Max. 45 A	0.688 A	0.45 A eff per 1000 m	12.25 / 12.25 A eff
8EI4X5MWDS0.XXXX-1	Max. 5 kVA	Max. 22 A	0.688 A	0.45 A eff per 1000 m	12.25 / 12.25 A eff
8EI8X8HWDS0.XXXX-1	Max. 10 kVA	Max. 45 A	0.936 A	0.88 A eff per 1000 m	24 / 24 A eff
8EI8X8MWDS0.XXXX-1	Max. 5 kVA	Max. 22 A	0.936 A	0.88 A eff per 1000 m	24 / 24 A eff
8EI017HWDS0.XXXX-1	Max. 26.4 kVA	100 A	1.404 A	1.7 A eff per 1000 m	42.5 / 42.5 A eff
8EI022HWDS0.XXXX-1	Max. 30.5 kVA	100 A	1.623 A	2.2 A eff per 1000 m	55 / 55 A eff

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Slots for plug-in modules	1
Frequency	50 / 60 Hz ±4%
Input voltage	24 VDC ±25%
