Wall mounting Parts
Compare Wall mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Installed load | Inrush current | DC bus capacitance | Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | Peak current per motor connection |
|---|---|---|---|---|---|
| 8EI4X5HWT10.0C00-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI8X8HWT10.0B00-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI8X8HWT10.0700-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI4X5HWT10.0700-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI2X2HWT10.0A00-1 | Max. 7.5 kVA | Max. 45 A | 470 µF | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI8X8HWT10.0300-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI4X5HWT10.0200-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI8X8MWT10.0A00-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI8X8MWT10.0300-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI8X8MWT10.0700-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI2X2MWT10.0A00-1 | Max. 3.75 kVA | Max. 22 A | 1880 µF | 0.22 A eff per 1000 m | 6/6/6 A eff |
| 8EI8X8HWT10.0A00-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI8X8HWT11.0700-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI8X8MWT11.0700-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI2X2HWT10.0200-1 | Max. 7.5 kVA | Max. 45 A | 470 µF | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI8X8HWT10.0000-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI4X5MWT10.C700-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI2X2MWT10.0200-1 | Max. 3.75 kVA | Max. 22 A | 1880 µF | 0.22 A eff per 1000 m | 6/6/6 A eff |
| 8EI2X2HWT10.0600-1 | Max. 7.5 kVA | Max. 45 A | 470 µF | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI2X2MWT10.0500-1 | Max. 3.75 kVA | Max. 22 A | 1880 µF | 0.22 A eff per 1000 m | 6/6/6 A eff |
| 8EI4X5HWT10.0000-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI8X8MWT10.C600-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |

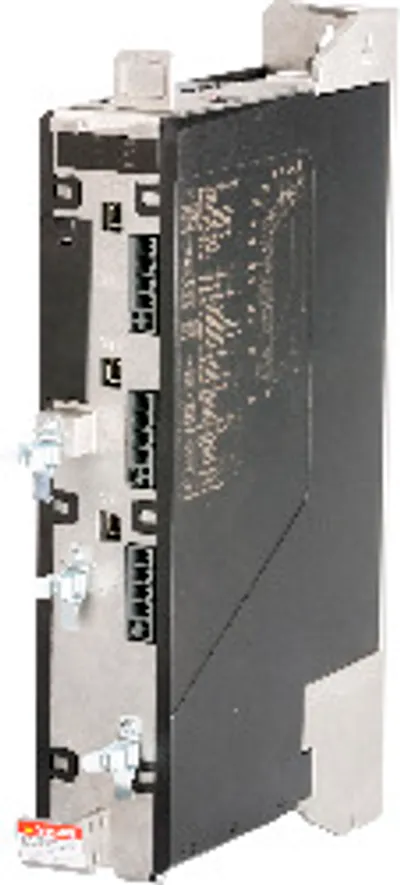

| 8EI4X5HWT10.0D00-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI8X8MWT10.C400-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
Common to all listed parts
| Slots for plug-in modules | 1 |
| Network configurations | TN-S, TN-C-S with grounded neutral |
| Frequency | 50 / 60 Hz ±4% |
| Switch-on interval | Typ. 60 s |
| Input voltage | 24 VDC ±25% |
| Protective measures – Overload protection | Yes |
| Protective measures – Short-circuit and ground fault protection | Yes |
| Variant – U, V, W, PE | Connector |
