Wall mounting Parts
Compare Wall mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Terminal connection cross section – With wire end sleeve | Installed load | Inrush current | Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | Peak current per motor connection |
|---|---|---|---|---|---|
| 8EI8X8MWT10.0100-1 | 0.25 to 4 mm² | Max. 5 kVA | Max. 22 A | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI8X8MWT10.0500-1 | 0.25 to 4 mm² | Max. 5 kVA | Max. 22 A | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI2X2HWT10.0100-1 | 1.5 to 6 mm² | Max. 7.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI2X2HWT10.0500-1 | 1.5 to 6 mm² | Max. 7.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI2X2MWT10.0100-1 | 1.5 to 6 mm² | Max. 3.75 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6/6/6 A eff |
| 8EI4X5HWT10.0100-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI4X5HWT10.0500-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI4X5MWT10.0100-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 22 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI4X5MWT10.0500-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 22 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI2X2HWT10.0700-1 | 1.5 to 6 mm² | Max. 7.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI4X5MWT10.0600-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 22 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |

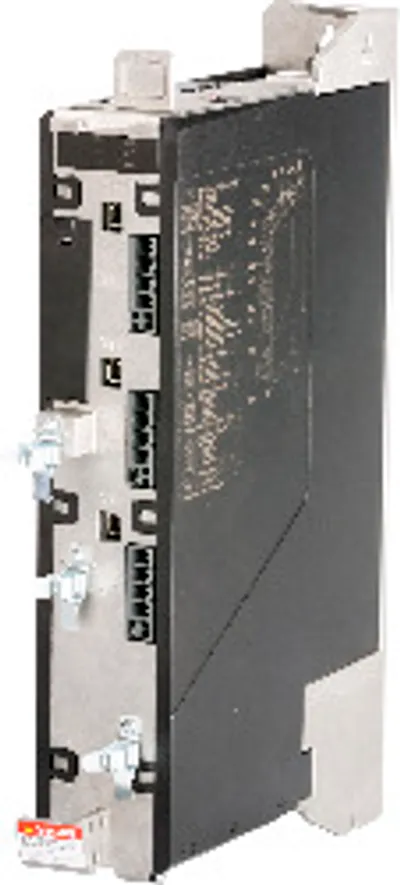

| 8EI4X5MWT10.0700-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 22 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI2X2MWT10.0600-1 | 1.5 to 6 mm² | Max. 3.75 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6/6/6 A eff |
| 8EI2X2HWT10.0400-1 | 1.5 to 6 mm² | Max. 7.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI8X8HWT10.0600-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI2X2HWT10.0000-1 | 1.5 to 6 mm² | Max. 7.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI8X8HWT10.0400-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI4X5HWT10.0600-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI8X8HWT10.0200-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI4X5MWT10.0200-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 22 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
| 8EI8X8MWT10.0600-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 22 A | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI2X2MWT10.0700-1 | 1.5 to 6 mm² | Max. 3.75 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6/6/6 A eff |
| 8EI2X2HWT10.0300-1 | 1.5 to 6 mm² | Max. 7.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI4X5HWT10.0A00-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25/12.25/12.25 A eff |
Common to all listed parts
| Support – Dynamic node allocation (DNA) | Yes |
| Slots for plug-in modules | 1 |
| Terminal connection cross section – UL/C-UL-US | 24 to 8 AWG |
| Terminal connection cross section – CSA | 24 to 8 AWG |
| Network configurations | TN-S, TN-C-S with grounded neutral |
| Frequency | 50 / 60 Hz ±4% |
| Switch-on interval | Typ. 60 s |
| Input voltage | 24 VDC ±25% |
