Cold plate or feed-through mounting Parts

B&R

ACOPOSmulti power supply module, 22 A, AS, cold plate or pass-through mounting

B&R

ACOPOSmulti power supply module, 44 A, AS, cold plate or pass-through mounting

B&R

ACOPOSmulti power supply module, 88 A, AS

B&R

ACOPOSmulti power supply module, 88 A, AS, cold plate or pass-through mounting

B&R

ACOPOSmulti power supply module, 165 A, AS, cold plate or pass-through mounting

B&R

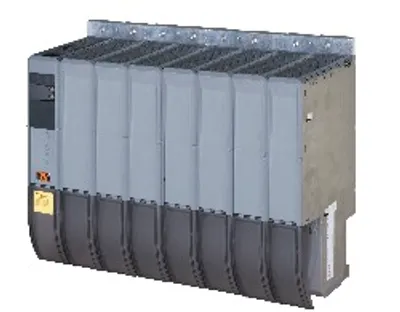

ACOPOSmulti power supply module, 165 A, AS

B&R

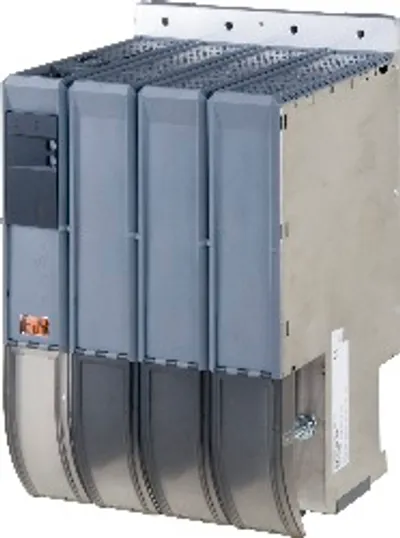

ACOPOSmulti power supply module, 88 A, AS

B&R

ACOPOSmulti3 power supply module, 44 A, AS

B&R

ACOPOSmulti3 power supply module, 88 A, AS

B&R

ACOPOSmulti3 power supply module, 165 A, AS

B&R

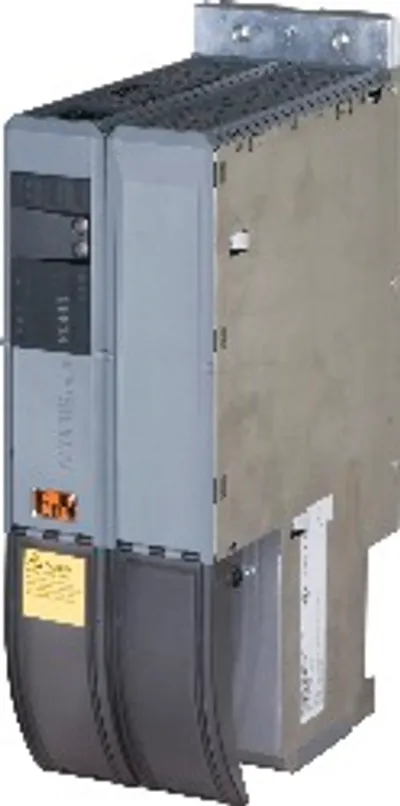

ACOPOSmulti3 power supply module, 22 A, AS

Compare Cold plate or feed-through mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Reduction of continuous power depending on mains input voltage – Mains input voltage <3x 400 VAC	Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level	Peak power (supply and regeneration)	Energy efficiency (IE classification) – Nominal losses in standby mode	Weight
8BVP0220HC00.000-1	37.5 W/V * (400 V - Mains input voltage)	1.5 kW per 1000 m	37.5 kW	10.8 W	Approx. 4.2 kg
8BVP0440HC00.000-1	75 W/V * (400 V - Mains input voltage)	3 kW per 1000 m	60 kW	10.8 W	Approx. 4.5 kg
8BVP0880HC00.000-1	150 W/V * (400 V - Mains input voltage)	6 kW per 1000 m	120 kW	—	Approx. 7.9 kg
8BVP0880HC00.004-1	150 W/V * (400 V - Mains input voltage)	6 kW per 1000 m	120 kW	10.8 W	Approx. 7.9 kg
8BVP1650HC00.000-1	300 W/V * (400 V - Mains input voltage)	12 kW per 1000 m	240 kW	13.5 W	Approx. 18.4 kg
8BVP1650HC00.004-1	300 W/V * (400 V - Mains input voltage)	12 kW per 1000 m	240 kW	14.5 W	18 kg
8BVP0880HC00.008-1	150 W/V * (400 V - Mains input voltage)	6 kW per 1000 m	120 kW	10.8 W	Approx. 8.4 kg
8BVP0440HC00.000-3	75 W/V * (400 V - Mains input voltage)	3 kW per 1000 m	60 kW	11.5 W	Approx. 4.5 kg
8BVP0880HC00.008-3	150 W/V * (400 V - Mains input voltage)	6 kW per 1000 m	120 kW	11.8 W	Approx. 8.4 kg
8BVP1650HC00.004-3	300 W/V * (400 V - Mains input voltage)	12 kW per 1000 m	240 kW	15.5 W	18 kg
8BVP0220HC00.000-3	37.5 W/V * (400 V - Mains input voltage)	1.5 kW per 1000 m	37.5 kW	11.5 W	Approx. 4.2 kg

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E225616; Power conversion equipment
Cooling and mounting type	Cold plate or pass-through mounting
Slots for plug-in modules	2
Mains input voltage	3x 220 to 3x 480 VAC ±10%
Frequency	50 / 60 Hz ±4%
Nominal switching frequency	5 kHz
