SIRIUS 3RH2 contactor relays, 4- and 8-pole Parts

Siemens

3RH2262-1BB40

Contactor relay, 6 NO + 2 NC, 24 V DC, screw terminal

Siemens

3RH2262-1AP60

Contactor relay, 6 NO + 2 NC, 220 V AC, 50 Hz / 240 V

Siemens

3RH2262-1AP00

Contactor relay, 6 NO + 2 NC, 230 V AC, 50/60 Hz

Siemens

3RH2122-2BW40

Contactor relay, 2 NO + 2 NC, 48 V DC

Siemens

3RH2122-2BN40

Contactor relay, 2 NO + 2 NC, 250 V DC

Siemens

3RH2122-2BM40

Contactor relay, 2 NO + 2 NC, 220 V DC

Siemens

3RH2122-2BG40

Contactor relay, 2 NO + 2 NC, 125 V DC

Siemens

3RH2122-2BF40

Contactor relay, 2 NO + 2 NC, 110 V DC

Siemens

3RH2122-2BE40

Contactor relay, 2 NO + 2 NC, 60 V DC

Siemens

3RH2122-1KJ80

Coupling contactor relay, 2 NO + 2 NC, 72 V DC, 0.7-1.25*Us

Siemens

3RH2122-1KF40

Coupling contactor relay, 2 NO + 2 NC, 110 V DC

Siemens

3RH2122-1KB40

Coupling contactor relay, 2 NO + 2 NC, 24 V DC, 0.7-1.25*Us

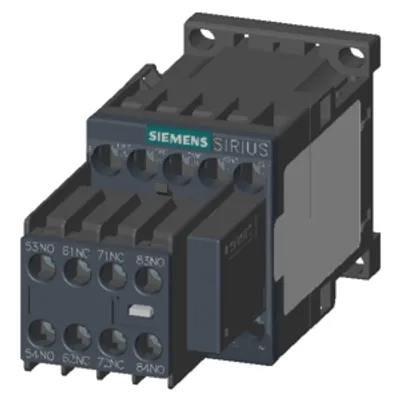

Siemens

3RH2344-1DE40-0KA0

Contactor relay, 4 NO + 4 NC, 60 V DC

Siemens

3RH2344-1DB40-0KA0

Contactor relay, 4 NO + 4 NC, 24 V DC

Siemens

3RH2344-1CU00-0KA0

Contactor relay, 4 NO + 4 NC, 240 V AC, 50/60 Hz

Siemens

3RH2440-1BG40

Contactor relay, latched, 4 NO, 125 V DC, screw terminal

Siemens

3RH2440-1BF40

Contactor relay, latched, 4 NO, 110 V DC, screw terminal

Siemens

3RH2440-1BB40

Contactor relay, latched, 4 NO, 24 V DC, screw terminal

Siemens

3RH2440-1AU00

Contactor relay, latched, 4 NO, 240 V AC, 50/60 Hz

Siemens

3RH2440-1AP60

Contactor relay, latched, 4 NO, 220 V AC, 50 Hz / 240 V

Siemens

3RH2440-1AP00

Contactor relay, latched, 4 NO, 230 V AC, 50/60 Hz

Siemens

3RH2422-1BM40

Contactor relay, latched, 2 NO + 2 NC, 220 V DC

Siemens

3RH2422-1BJ80

Contactor relay, latched, 2 NO + 2 NC, 72 V DC

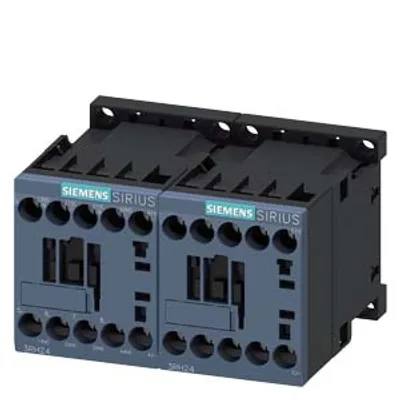

Siemens

3RH2422-1BG40

Contactor relay, latched, 2 NO + 2 NC, 125 V DC

Compare SIRIUS 3RH2 contactor relays, 4- and 8-pole

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Net Weight	control supply voltage at DC rated value	identification number and letter for switching elements	global warming potential [CO2 eq] / during manufacturing	global warming potential [CO2 eq] / after end of life
3RH2262-1BB40	305.799 g	24 V	62 E	1.57 kg	-0.2 kg
3RH2262-1AP60	0.266 kg	—	62 E	1.43 kg	-0.0159 kg
3RH2262-1AP00	0.267 kg	—	62 E	1.43 kg	-0.0159 kg
3RH2122-2BW40	0.289 kg	48 V	22 E	1.3 kg	-0.227 kg
3RH2122-2BN40	0.285 kg	250 V	22 E	1.3 kg	-0.227 kg
3RH2122-2BM40	0.299 kg	220 V	22 E	1.3 kg	-0.227 kg
3RH2122-2BG40	0.305 kg	125 V	22 E	1.3 kg	-0.227 kg
3RH2122-2BF40	0.272 kg	110 V	22 E	1.3 kg	-0.227 kg
3RH2122-2BE40	0.297 kg	60 V	22 E	1.3 kg	-0.227 kg
3RH2122-1KJ80	0.277 kg	72 V	22 E	1.3 kg	-0.227 kg
3RH2122-1KF40	0.283 kg	110 V	22 E	1.3 kg	-0.227 kg
3RH2122-1KB40	0.281 kg	24 V	22 E	1.3 kg	-0.227 kg
3RH2344-1DE40-0KA0	0.329 kg	60 V	44 E	1.57 kg	-0.2 kg
3RH2344-1DB40-0KA0	0.325 kg	24 V	44 E	1.57 kg	-0.2 kg
3RH2344-1CU00-0KA0	0.269 kg	—	44 E	1.43 kg	-0.0159 kg
3RH2440-1BG40	0.536 kg	125 V	40 E	2.44 kg	-0.49 kg
3RH2440-1BF40	0.538 kg	110 V	40 E	2.44 kg	-0.49 kg
3RH2440-1BB40	0.531 kg	24 V	40 E	2.44 kg	-0.49 kg
3RH2440-1AU00	0.427 kg	—	40 E	1.93 kg	-0.242 kg
3RH2440-1AP60	0.428 kg	—	40 E	1.93 kg	-0.242 kg
3RH2440-1AP00	0.423 kg	—	40 E	1.93 kg	-0.242 kg
3RH2422-1BM40	0.537 kg	220 V	22 E	2.44 kg	-0.49 kg
3RH2422-1BJ80	0.512 kg	72 V	22 E	2.44 kg	-0.49 kg
3RH2422-1BG40	0.527 kg	125 V	22 E	2.44 kg	-0.49 kg

Common to all listed parts

product type designation	3RH2
size of contactor	S00
insulation voltage with degree of pollution 3 at AC rated value	690 V
degree of pollution	3
surge voltage resistance rated value	6 kV
reference code according to IEC 81346-2	K
installation altitude at height above sea level maximum	2 000 m
ambient temperature — during operation	-25 ... +60 °C
