SIRIUS 3RH2 contactor relays, 4- and 8-pole Parts

Siemens

3RH2122-1AC60

Contactor relay, 2 NO + 2 NC, 32 V AC, 50 Hz / 38 V, 60 Hz

Siemens

3RH2122-2AP00

Contactor relay, 2 NO + 2 NC, 230 V AC, 50/60 Hz

Siemens

3RH2122-2AN20

Contactor relay, 2 NO + 2 NC, 220 V AC, 50/60 Hz

Siemens

3RH2122-2AK60

Contactor relay, 2 NO + 2 NC, 110 V AC, 50 Hz / 120 V

Siemens

3RH2122-2AH00

Contactor relay, 2 NO + 2 NC, 48 V AC, 50/60 Hz

Siemens

3RH2122-2AF00

Contactor relay, 2 NO + 2 NC, 110 V AC, 50/60 Hz

Siemens

3RH2122-1AG60

Contactor relay, 2 NO + 2 NC, 100 V AC, 50 Hz / 100-110 V

Siemens

3RH2140-2HB40

Coupling contactor relay, 4 NO, 24 V DC, 0.7-1.25*Us

Siemens

3RH2140-2GG20

Contactor relay, 4 NO, 110 V AC, 50/60 Hz

Siemens

3RH2140-2FB40

Contactor relay, 4 NO, 24 V DC, with integrated diode

Siemens

3RH2122-1JB40

Coupling contactor relay, 2 NO + 2 NC, 24 V DC, 0.7-1.25*Us

Siemens

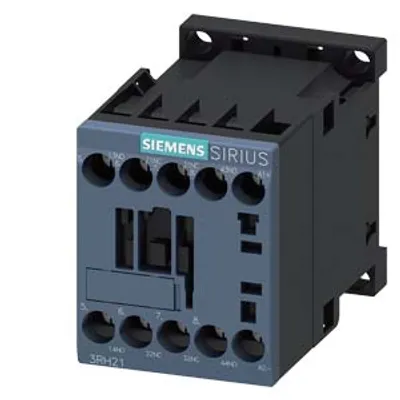

3RH2122-1HB40

Coupling contactor relay, 2 NO + 2 NC, 24 V DC, 0.7-1.25*Us

Siemens

3RH2122-1FB40

Contactor relay, 2 NO + 2 NC, 24 V DC

Siemens

3RH2122-1BW40

Contactor relay, 2 NO + 2 NC, 48 V DC, screw terminal

Siemens

3RH2122-1BP40

Contactor relay, 2 NO + 2 NC, 230 V DC, screw terminal

Siemens

3RH2122-1BD40

Contactor relay, 2 NO + 2 NC, 42 V DC, screw terminal

Siemens

3RH2140-1AB00

Contactor relay, 4 NO, 24 V AC, 50/60 Hz, screw terminal

Siemens

3RH2131-2KF40

Coupling contactor relay, 3 NO + 1 NC, 110 V DC

Siemens

3RH2131-1AU00

Contactor relay, 3 NO + 1 NC, 240 V AC, 50/60 Hz

Siemens

3RH2131-1AQ00

Contactor relay, 3 NO + 1 NC, 380 V AC, 50/60 Hz

Siemens

3RH2131-2BF40

Contactor relay, 3 NO + 1 NC, 110 V DC

Siemens

3RH2131-2BE40

Contactor relay, 3 NO + 1 NC, 60 V DC

Siemens

3RH2140-2AK60

Contactor relay, 4 NO, 110 V AC, 50 Hz / 120 V, 60 Hz

Siemens

3RH2140-2AH00

Contactor relay, 4 NO, 48 V AC, 50/60 Hz

Compare SIRIUS 3RH2 contactor relays, 4- and 8-pole

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	power loss [W] for rated value of the current without load current share typical	Net Weight	number of NC contacts for auxiliary contacts	number of NC contacts for auxiliary contacts — instantaneous contact	number of NO contacts for auxiliary contacts
3RH2122-1AC60	1.43 W	0.221 kg	2	2	2
3RH2122-2AP00	1.43 W	239.8 g	2	2	2
3RH2122-2AN20	1.1 W	0.242 kg	2	2	2
3RH2122-2AK60	1.43 W	0.241 kg	2	2	2
3RH2122-2AH00	1.43 W	0.24 kg	2	2	2
3RH2122-2AF00	1.43 W	240.8 g	2	2	2
3RH2122-1AG60	1.43 W	0.218 kg	2	2	2
3RH2140-2HB40	2.8 W	0.306 kg	0	0	4
3RH2140-2GG20	5.13 W	0.299 kg	0	0	4
3RH2140-2FB40	4 W	0.298 kg	0	0	4
3RH2122-1JB40	2.8 W	285.32 g	2	2	2
3RH2122-1HB40	2.8 W	0.287 kg	2	2	2
3RH2122-1FB40	4 W	275.8 g	2	2	2
3RH2122-1BW40	4 W	279.5 g	2	2	2
3RH2122-1BP40	4 W	0.28 kg	2	2	2
3RH2122-1BD40	4 W	0.28 kg	2	2	2
3RH2140-1AB00	1.43 W	217.8 g	0	0	4
3RH2131-2KF40	2.8 W	0.301 kg	1	1	3
3RH2131-1AU00	1.43 W	0.234 kg	1	1	3
3RH2131-1AQ00	1.43 W	0.22 kg	1	1	3
3RH2131-2BF40	4 W	0.275 kg	1	1	3
3RH2131-2BE40	4 W	303 g	1	1	3
3RH2140-2AK60	1.43 W	246.5 g	0	0	4
3RH2140-2AH00	1.43 W	0.242 kg	0	0	4

Common to all listed parts

product type designation	3RH2
size of contactor	S00
insulation voltage with degree of pollution 3 at AC rated value	690 V
degree of pollution	3
surge voltage resistance rated value	6 kV
mechanical service life (operating cycles) — of contactor typical	30 000 000
reference code according to IEC 81346-2	K
Substance Prohibitance (day/month/year)	10/01/2009
