ABB Thermal Overload Relays Parts

Showing 25–48 of 177 parts

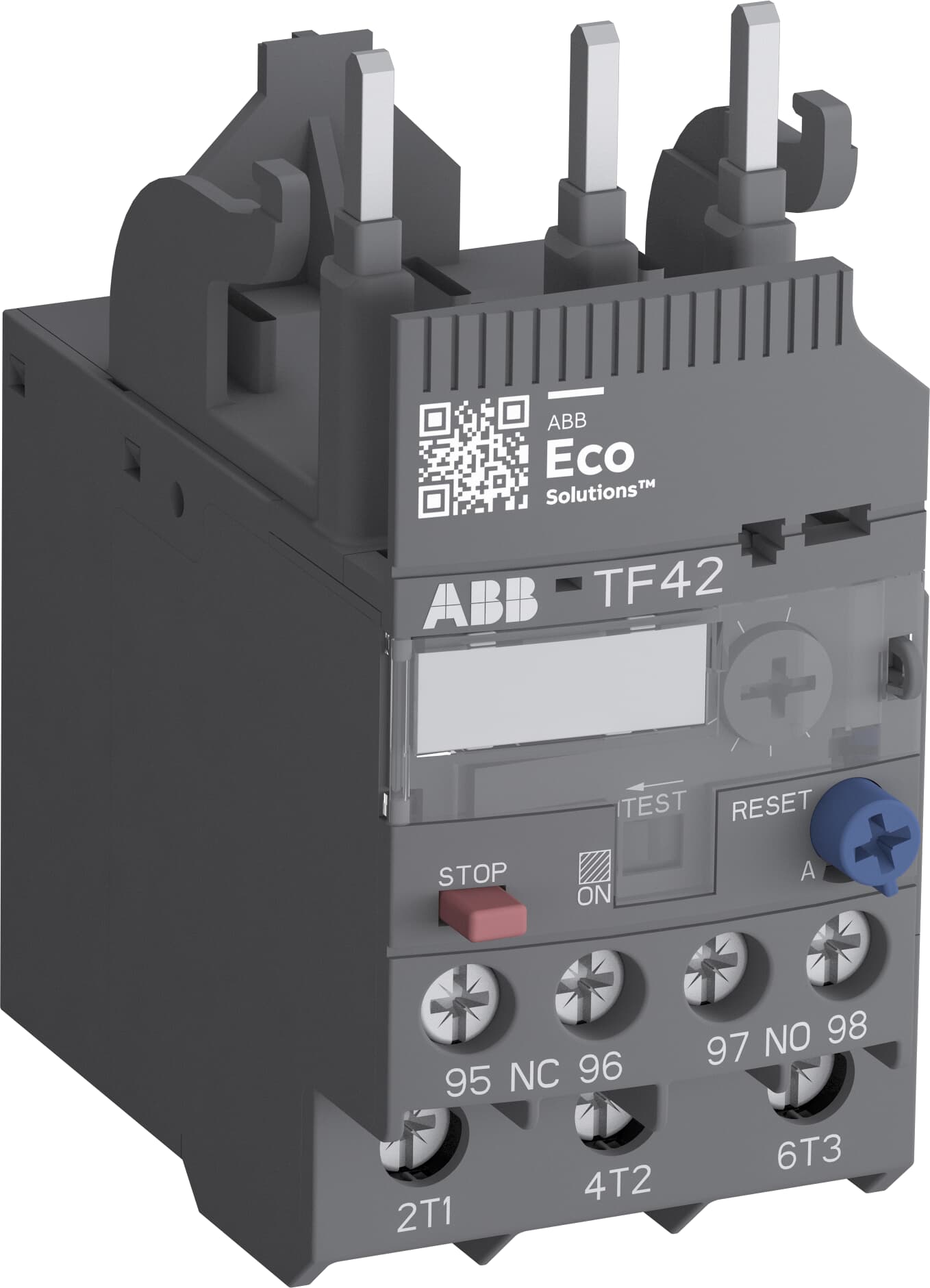

ABB 1SAZ721201R1035 – TF42-4.2 Thermal Overload Relay 3.1 ... 4.2 A
ABB
1SAZ721201R1035

TF42-4.2 Thermal Overload Relay 3.1 ... 4.2 A

ABB 1SAZ821201R1002 – TF65-33B Thermal Overload Relay 25 ... 33 A
ABB
1SAZ821201R1002

TF65-33B Thermal Overload Relay 25 ... 33 A

ABB 1SAZ811201R1001 – TF65-28 Thermal Overload Relay 22 ... 28 A
ABB
1SAZ811201R1001

TF65-28 Thermal Overload Relay 22 ... 28 A

ABB 1SAZ721201R1040 – TF42-7.6 Thermal Overload Relay 5.7 ... 7.6 A
ABB
1SAZ721201R1040

TF42-7.6 Thermal Overload Relay 5.7 ... 7.6 A

ABB 1SAZ821201R1001 – TF65-28B Thermal Overload Relay 22 ... 28 A
ABB
1SAZ821201R1001

TF65-28B Thermal Overload Relay 22 ... 28 A

ABB 1SAZ741201R1038 – TF42-5.7B Thermal Overload Relay 4.2 ... 5.7 A
ABB
1SAZ741201R1038

TF42-5.7B Thermal Overload Relay 4.2 ... 5.7 A

ABB 1SAZ721201R1038 – TF42-5.7 Thermal Overload Relay 4.2 ... 5.7 A
ABB
1SAZ721201R1038

TF42-5.7 Thermal Overload Relay 4.2 ... 5.7 A

ABB 1SAZ741201R1040 – TF42-7.6B Thermal Overload Relay 5.7 ... 7.6 A
ABB
1SAZ741201R1040

TF42-7.6B Thermal Overload Relay 5.7 ... 7.6 A

ABB 1SAZ721201R1053 – TF42-35 Thermal Overload Relay 29 ... 35 A
ABB
1SAZ721201R1053

TF42-35 Thermal Overload Relay 29 ... 35 A

ABB 1SAZ721201R1055 – TF42-38 Thermal Overload Relay 35 ... 38 A
ABB
1SAZ721201R1055

TF42-38 Thermal Overload Relay 35 ... 38 A

ABB 1SAZ721201R1033 – TF42-3.1 Thermal Overload Relay 2.3 ... 3.1 A
ABB
1SAZ721201R1033

TF42-3.1 Thermal Overload Relay 2.3 ... 3.1 A

ABB 1SAZ741201R1035 – TF42-4.2B Thermal Overload Relay 3.1 ... 4.2 A
ABB
1SAZ741201R1035

TF42-4.2B Thermal Overload Relay 3.1 ... 4.2 A

ABB 1SAZ741201R1055 – TF42-38B Thermal Overload Relay 35 ... 38 A
ABB
1SAZ741201R1055

TF42-38B Thermal Overload Relay 35 ... 38 A

ABB 1SAZ741201R1053 – TF42-35B Thermal Overload Relay 29 ... 35 A
ABB
1SAZ741201R1053

TF42-35B Thermal Overload Relay 29 ... 35 A

ABB 1SAZ721201R1052 – TF42-29 Thermal Overload Relay 24 ... 29 A
ABB
1SAZ721201R1052

TF42-29 Thermal Overload Relay 24 ... 29 A

ABB 1SAZ741201R1033 – TF42-3.1B Thermal Overload Relay 2.3 ... 3.1 A
ABB
1SAZ741201R1033

TF42-3.1B Thermal Overload Relay 2.3 ... 3.1 A

ABB 1SAZ721201R1047 – TF42-16 Thermal Overload Relay 13 ... 16 A
ABB
1SAZ721201R1047

TF42-16 Thermal Overload Relay 13 ... 16 A

ABB 1SAZ741201R1052 – TF42-29B Thermal Overload Relay 24 ... 29 A
ABB
1SAZ741201R1052

TF42-29B Thermal Overload Relay 24 ... 29 A

ABB 1SAZ721201R1049 – TF42-20 Thermal Overload Relay 16 ... 20 A
ABB
1SAZ721201R1049

TF42-20 Thermal Overload Relay 16 ... 20 A

ABB 1SAZ721201R1051 – TF42-24 Thermal Overload Relay 20 ... 24 A
ABB
1SAZ721201R1051

TF42-24 Thermal Overload Relay 20 ... 24 A

ABB 1SAZ741201R1051 – TF42-24B Thermal Overload Relay 20 ... 24 A
ABB
1SAZ741201R1051

TF42-24B Thermal Overload Relay 20 ... 24 A

ABB 1SAZ741201R1049 – TF42-20B Thermal Overload Relay 16 ... 20 A
ABB
1SAZ741201R1049

TF42-20B Thermal Overload Relay 16 ... 20 A

ABB 1SAZ721201R1031 – TF42-2.3 Thermal Overload Relay 1.7 ... 2.3 A
ABB
1SAZ721201R1031

TF42-2.3 Thermal Overload Relay 1.7 ... 2.3 A

Compare ABB Thermal Overload Relays

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (ABB product ID)TypeProduct Net WeightSetting RangeRated Operational Current (I<sub>e</sub>)
1SAZ721201R10351SAZ721201R1035TF42-4.20.13 kg3.1 ... 4.2 A4.2 A
1SAZ821201R10021SAZ821201R1002TF65-33B0.372 kg25 ... 33 A33 A
1SAZ811201R10011SAZ811201R1001TF65-280.372 kg22 ... 28 A28 A
1SAZ721201R10401SAZ721201R1040TF42-7.60.13 kg5.7 ... 7.6 A7.6 A
1SAZ821201R10011SAZ821201R1001TF65-28B0.372 kg22 ... 28 A28 A
1SAZ741201R10381SAZ741201R1038TF42-5.7B0.13 kg4.2 ... 5.7 A5.7 A
1SAZ721201R10381SAZ721201R1038TF42-5.70.13 kg4.2 ... 5.7 A5.7 A

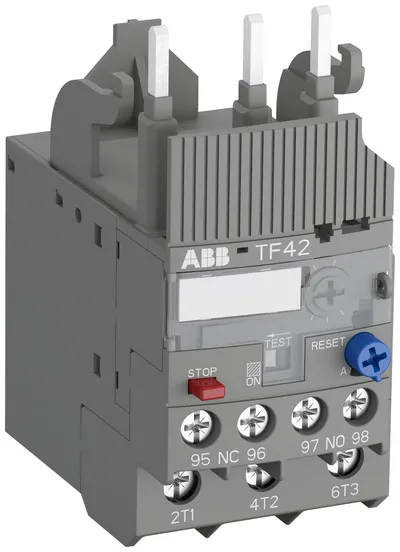

1SAZ721201R10411SAZ721201R1041TF42-8.00.13 kg—8 A
1SAZ741201R10401SAZ741201R1040TF42-7.6B0.13 kg5.7 ... 7.6 A7.6 A
1SAZ721201R10531SAZ721201R1053TF42-350.145 kg29 ... 35 A35 A
1SAZ721201R10551SAZ721201R1055TF42-380.145 kg35 ... 38 A38 A
1SAZ721201R10331SAZ721201R1033TF42-3.10.13 kg2.3 ... 3.1 A3.1 A
1SAZ741201R10351SAZ741201R1035TF42-4.2B0.13 kg3.1 ... 4.2 A4.2 A
1SAZ741201R10551SAZ741201R1055TF42-38B0.145 kg35 ... 38 A38 A
1SAZ741201R10531SAZ741201R1053TF42-35B0.145 kg29 ... 35 A35 A
1SAZ721201R10521SAZ721201R1052TF42-290.145 kg24 ... 29 A29 A
1SAZ741201R10331SAZ741201R1033TF42-3.1B0.13 kg2.3 ... 3.1 A3.1 A
1SAZ721201R10471SAZ721201R1047TF42-160.13 kg13 ... 16 A16 A
1SAZ741201R10521SAZ741201R1052TF42-29B0.145 kg24 ... 29 A29 A
1SAZ721201R10491SAZ721201R1049TF42-200.135 kg16 ... 20 A20 A
1SAZ721201R10511SAZ721201R1051TF42-240.145 kg20 ... 24 A24 A
1SAZ741201R10511SAZ741201R1051TF42-24B0.145 kg20 ... 24 A24 A
1SAZ741201R10491SAZ741201R1049TF42-20B0.135 kg16 ... 20 A20 A
1SAZ721201R10311SAZ721201R1031TF42-2.30.13 kg1.7 ... 2.3 A2.3 A

Common to all listed parts

LifecycleActive (current ABB product)
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Rated Insulation Voltage (U<sub>i</sub>)690 V
Number of Poles3P
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Number of Protected Poles3
