Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | Drive-end Connector Type | AWG size | Cable length | Nominal cross section conductor (AWG) |
|---|---|---|---|---|---|

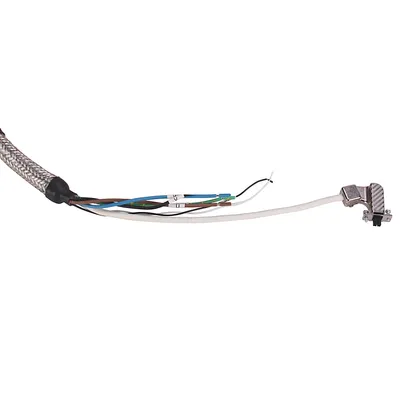

| 2090-CSBM1DE-18AF11 | Continuous-flex | Drive-end, connector kit | 18 AWG | 11 m | 1.62 |
| 2090-CSBM1DE-18AF04 | Continuous-flex | Drive-end, connector kit | 18 AWG | 4 m | 1.62 |
| 2090-CSBM1DG-14AA06 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 6 m | 4.1 |
| 2090-CSBM1DE-18AF07 | Continuous-flex | Drive-end, connector kit | 18 AWG | 7 m | 1.62 |
| 2090-CSBM1DE-14AF22 | Continuous-flex | Drive-end, connector kit | 14 AWG | 22 m | 4.1 |
| 2090-CSBM1DE-14AF06 | Continuous-flexible | — | 14 AWG | 6 m | 4.1 |
| 2090-CSBM1DE-14AF21 | Continuous-flexible | — | 14 AWG | 21 m | 4.1 |

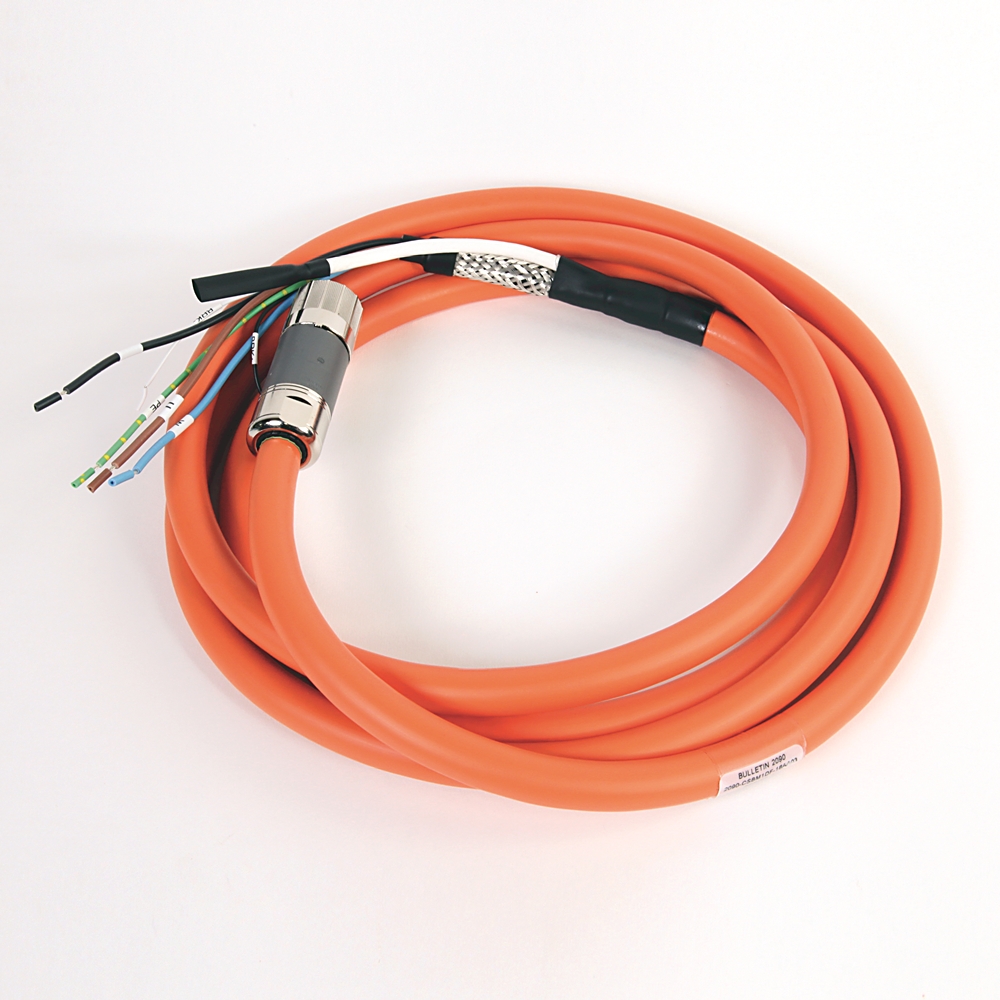

| 2090-CSBM1DF-18AF50 | Continuous-flex | Drive-end, flying-lead | 18 AWG | 50 m | 1.62 |
| 2090-CSBM1DE-14AA27 | Standard, Non-flex | Flying Lead at 5700 Drive End | 14 AWG | 27 m | 4.1 |
| 2090-CSBM1DG-14AA02 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 2 m | 4.1 |
| 2090-CSBM1DF-18AF45 | Continuous-flexible | Flying Lead at 5500 Drive End | 18 AWG | 45 m | 1.62 |
| 2090-CSBM1DE-14AA14 | Standard, Non-flex | — | 14 AWG | 14 m | 4.1 |
| 2090-CSBM1DF-18AF23 | Continuous-flex | Drive-end, flying-lead | 18 AWG | 23 m | 1.62 |
| 2090-CSBM1DF-18AF28 | Continuous-flex | Drive-end, flying-lead | 18 AWG | 28 m | 1.62 |
| 2090-CSBM1DE-14AA23 | Standard, non-flexible | Drive-end, connector kit | 14 AWG | 23 m | 4.1 |
| 2090-CSBM1DG-14AA50 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 50 m | 4.1 |
| 2090-CSBM1DG-14AA45 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 45 m | 4.1 |
| 2090-CSBM1DG-14AF04 | Continuous-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 4 m | 4.1 |
| 2090-CSBM1DG-14AA22 | Standard, Non-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 22 m | 4.1 |
| 2090-CSBM1DF-14AF30 | Continuous-flex | Drive-end, flying-lead | 14 AWG | 30 m | 4.1 |
| 2090-CSBM1DG-14AA11 | Standard, Non-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 11 m | 4.1 |
| 2090-CSBM1DF-14AF11 | Continuous-flexible | — | 14 AWG | 11 m | 4.1 |
| 2090-CSBM1DF-14AA50 | Standard, Non-flex | — | 14 AWG | 50 m | 4.1 |
| 2090-CSBM1DF-14AF22 | Continuous-flex | Drive-end, flying-lead | 14 AWG | 22 m | 4.1 |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Accessory component | Cable |
| Cable type | Single motor power with brake wires |
| Color cable code | RAL2003 |
| Colour outer sheath | Orange |
| Conductor material | Copper |
| Conductor surface | Tinned |
