I/O service products (discontinued) Parts
Available on requestIP2301-B800 Fieldbus Box, 4-channel digital input + 4-channel digital output, RS485, 24 V DC, 3 ms, 0.5 A, M8MPN: IP2301-B800 · Beckhoff
Price on request
Request a quote
Available on requestIP2301-B810 Fieldbus Box, 4-channel digital input + 4-channel digital output, RS232, 24 V DC, 3 ms, 0.5 A, M8MPN: IP2301-B810 · Beckhoff
Price on request
Request a quote
Available on requestIP1502-B200 Fieldbus Box, 2-channel digital input, Lightbus, counter, 24 V DC, 100 kHz, M12MPN: IP1502-B200 · Beckhoff
Price on request
Request a quote

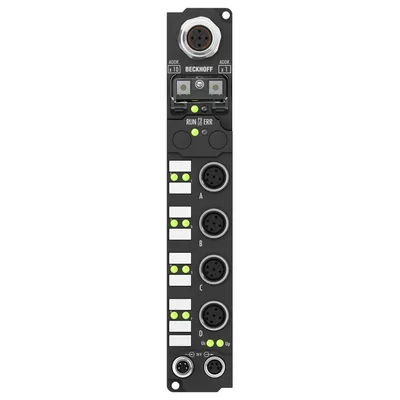

Available on requestIP1502-B400 Fieldbus Box, 2-channel digital input, Interbus, counter, 24 V DC, 100 kHz, M12MPN: IP1502-B400 · Beckhoff
Price on request
Request a quote
Available on requestIP1502-B730 Fieldbus Box, 2-channel digital input, Modbus, counter, 24 V DC, 100 kHz, M12MPN: IP1502-B730 · Beckhoff
Price on request
Request a quote
Available on requestIP1502-B800 Fieldbus Box, 2-channel digital input, RS485, counter, 24 V DC, 100 kHz, M12MPN: IP1502-B800 · Beckhoff
Price on request
Request a quote
Available on requestIP1502-B810 Fieldbus Box, 2-channel digital input, RS232, counter, 24 V DC, 100 kHz, M12MPN: IP1502-B810 · Beckhoff
Price on request
Request a quote

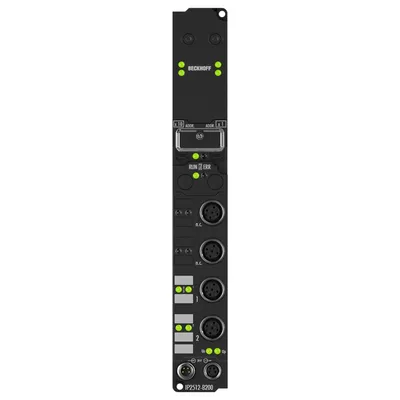

Available on requestIP2512-B200 Fieldbus Box, 2-channel PWM output, Lightbus, 24 V DC, 2.5 A, M12MPN: IP2512-B200 · Beckhoff
Price on request
Request a quote

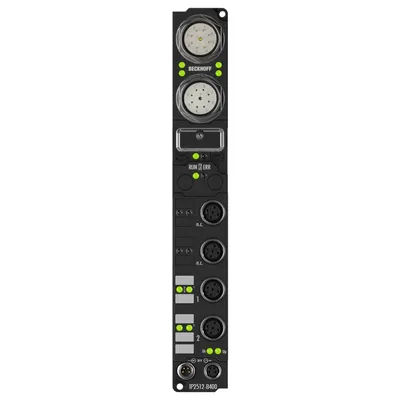

Available on requestIP2512-B400 Fieldbus Box, 2-channel PWM output, Interbus, 24 V DC, 2.5 A, M12MPN: IP2512-B400 · Beckhoff
Price on request
Request a quote

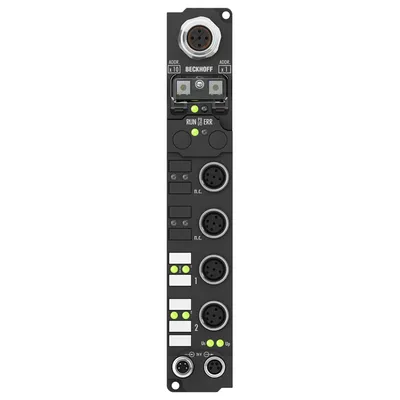

Available on requestIP2512-B730 Fieldbus Box, 2-channel PWM output, Modbus, 24 V DC, 2.5 A, M12MPN: IP2512-B730 · Beckhoff
Price on request
Request a quote
Available on requestIP2512-B800 Fieldbus Box, 2-channel PWM output, RS485, 24 V DC, 2.5 A, M12MPN: IP2512-B800 · Beckhoff
Price on request
Request a quote
Available on requestIP2512-B810 Fieldbus Box, 2-channel PWM output, RS232, 24 V DC, 2.5 A, M12MPN: IP2512-B810 · Beckhoff
Price on request
Request a quote
Available on requestIP2302-B200 Fieldbus Box, 4-channel digital input + 4-channel digital output, Lightbus, 24 V DC, 3 ms, 0.5 A, M12MPN: IP2302-B200 · Beckhoff
Price on request
Request a quote

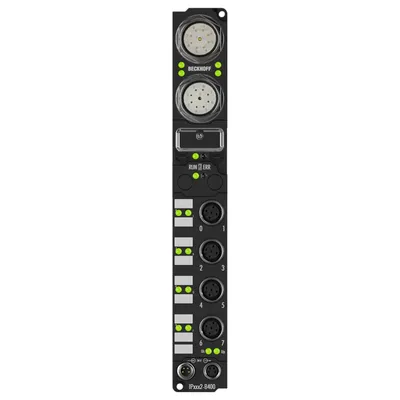

Available on requestIP2302-B400 Fieldbus Box, 4-channel digital input + 4-channel digital output, Interbus, 24 V DC, 3 ms, 0.5 A, M12MPN: IP2302-B400 · Beckhoff
Price on request
Request a quote
Available on requestIP2302-B730 Fieldbus Box, 4-channel digital input + 4-channel digital output, Modbus, 24 V DC, 3 ms, 0.5 A, M12MPN: IP2302-B730 · Beckhoff
Price on request
Request a quote

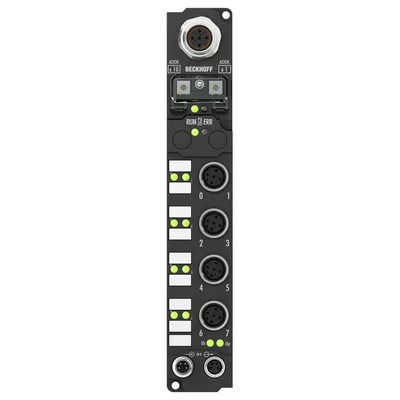

Available on requestIP2302-B800 Fieldbus Box, 4-channel digital input + 4-channel digital output, RS485, 24 V DC, 3 ms, 0.5 A, M12MPN: IP2302-B800 · Beckhoff
Price on request
Request a quote
Available on requestIP2302-B810 Fieldbus Box, 4-channel digital input + 4-channel digital output, RS232, 24 V DC, 3 ms, 0.5 A, M12MPN: IP2302-B810 · Beckhoff
Price on request
Request a quote
Available on requestIP2310-B810 Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, Ø8 – RS232MPN: IP2310-B810 · Beckhoff
Price on request
Request a quote
Available on requestIP2310-B800 Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, Ø8 – RS485/RS422MPN: IP2310-B800 · Beckhoff
Price on request
Request a quote
Available on requestIP2310-B730 Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, Ø8 – Modbus RTUMPN: IP2310-B730 · Beckhoff
Price on request
Request a quote
Available on requestIP2310-B528 Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, Ø8 – DeviceNet ®MPN: IP2310-B528 · Beckhoff
Price on request
Request a quote
Available on requestIP2310-B520 Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, Ø8 – DeviceNet ®MPN: IP2310-B520 · Beckhoff
Price on request
Request a quote
Available on requestIP2310-B518 Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, Ø8 – CANopenMPN: IP2310-B518 · Beckhoff
Price on request
Request a quote

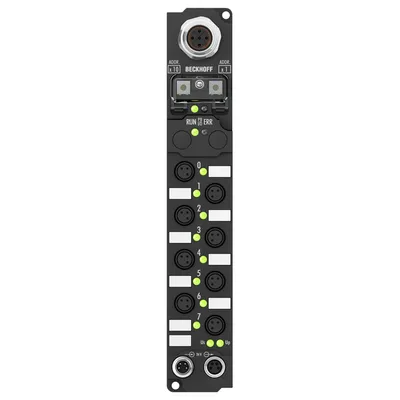

Available on requestIP2310-B510 Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, Ø8 – CANopenMPN: IP2310-B510 · Beckhoff
Price on request
Request a quoteCompare I/O service products (discontinued)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Input filter | “0” signal voltage | Load type | Auxiliary power current | Weight |
|---|---|---|---|---|---|
| IP2301-B800 | 3.0 ms | -3…+5 V | ohmic, inductive, lamp load | typ. 20 mA per channel | approx. 210 g |
| IP2301-B810 | 3.0 ms | -3…+5 V | ohmic, inductive, lamp load | typ. 20 mA per channel | approx. 210 g |
| IP1502-B200 | – | -3…+5 V (EN 61131-2, type 2) | — | according to I/O type | approx. 250 g |
| IP1502-B400 | – | -3…+5 V (EN 61131-2, type 2) | — | according to I/O type | approx. 350 g |
| IP1502-B730 | – | -3…+5 V (EN 61131-2, type 2) | — | according to I/O type | approx. 210 g |
| IP1502-B800 | – | -3…+5 V (EN 61131-2, type 2) | — | according to I/O type | approx. 210 g |
| IP1502-B810 | – | -3…+5 V (EN 61131-2, type 2) | — | according to I/O type | approx. 210 g |
| IP2512-B200 | — | — | ohmic, inductive | according to I/O type | approx. 250 g |
| IP2512-B400 | — | — | ohmic, inductive | according to I/O type | approx. 350 g |
| IP2512-B730 | — | — | ohmic, inductive | according to I/O type | approx. 210 g |
| IP2512-B800 | — | — | ohmic, inductive | according to I/O type | approx. 210 g |
| IP2512-B810 | — | — | ohmic, inductive | according to I/O type | approx. 210 g |
| IP2302-B200 | 3.0 ms | -3…+5 V | ohmic, inductive, lamp load | typ. 20 mA per channel | approx. 250 g |
| IP2302-B400 | 3.0 ms | -3…+5 V | ohmic, inductive, lamp load | typ. 20 mA per channel | approx. 350 g |
| IP2302-B730 | 3.0 ms | -3…+5 V | ohmic, inductive, lamp load | typ. 20 mA per channel | approx. 210 g |
| IP2302-B800 | 3.0 ms | -3…+5 V | ohmic, inductive, lamp load | typ. 20 mA per channel | approx. 210 g |
| IP2302-B810 | 3.0 ms | -3…+5 V | ohmic, inductive, lamp load | typ. 20 mA per channel | approx. 210 g |
Common to all listed parts
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Current consumption from U S (without sensor current) | see documentation |
| Extension modules | – |
| Digital peripheral signals | according to I/O type |
| Analog peripheral signals | according to I/O type |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
