Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Customs Tariff Number | Product Net Weight | Gross Weight | Product Name |
|---|---|---|---|---|---|

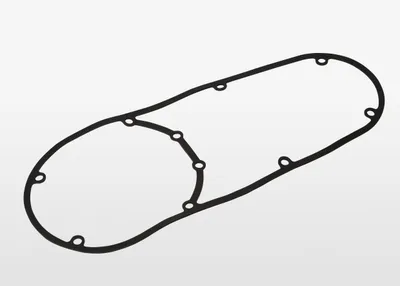

| 3HAC048887-001 | Gasket | 40169300 | 0.1 kg kg | 0.1 kg kg | Gasket |

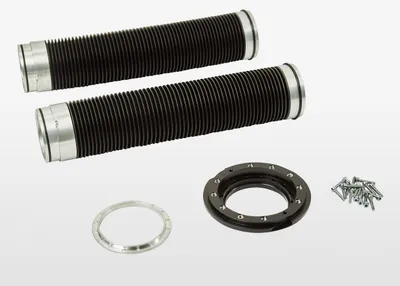

| 3HNA028957-001 | UPGRADE KIT, HW SEALED | 85389099 | 0.86 kg kg | 0.86 kg kg | UPGRADE KIT, HW SEALED |

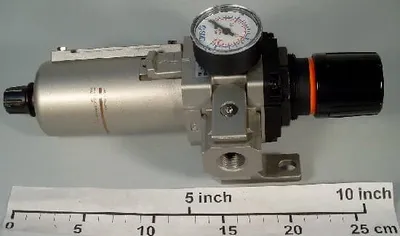

| 3HAC023567-001 | Air Unit, Regulator & Filter | 84249080 | 2 kg kg | 2 kg kg | Air Unit, Regulator & Filter |

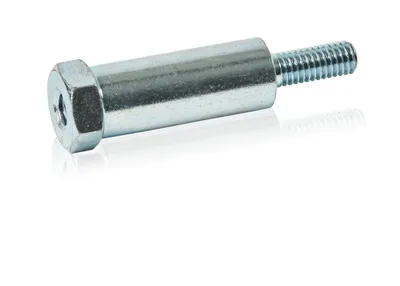

| 3HAC043038-001 | Distance screw with flange | 84799070 | 0.029 kg kg | 0.029 kg kg | Distance screw with flange |
| E3HAC059655-002 | Wrist | 84799070 | 85 kg kg | 85 kg kg | Wrist |
| 3HAC030165-001 | CP/CS/CBUS Cable Upper Arm | 85444290 | 0.74 kg kg | 0.74 kg kg | CP/CS/CBUS Cable Upper Arm |

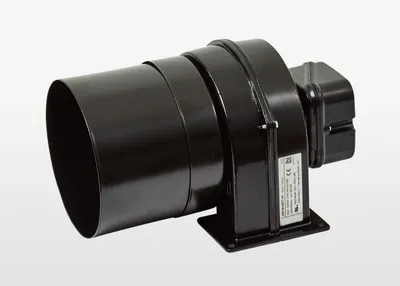

| 3HAC4106-1 | Radial fan | 84145925 | 2.3 kg kg | 2.3 kg kg | Radial fan |

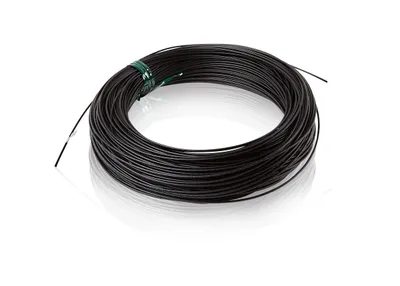

| 3HNA002908-001 | FIBER CABLE | 85447000 | 0.4 kg kg | 0.4 kg kg | FIBER CABLE |

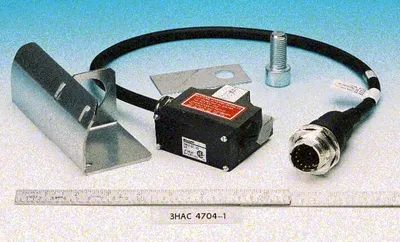

| 3HAC4704-1 | Pos SW 1 function | 85365080 | 0.6 kg kg | 0.6 kg kg | Pos SW 1 function |

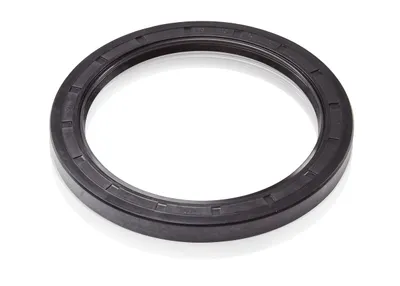

| 3HAB4409-1 | SEALING | 40169300 | 0.1 kg kg | 0.1 kg kg | SEALING |

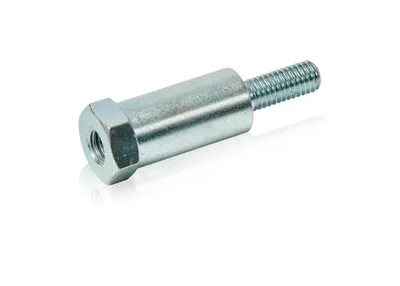

| 3HAC043036-001 | Distance screw with flange | 84799070 | 0.03 kg kg | 0.03 kg kg | Distance screw with flange |

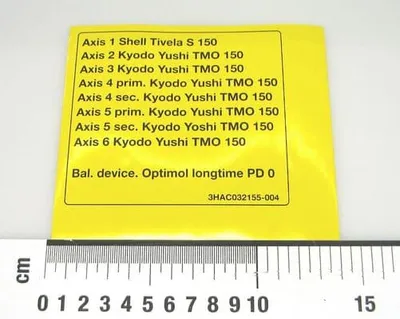

| 3HAC032155-004 | Label IRB 7600 | 39199080 | 0.002 kg kg | 0.002 kg kg | Label IRB 7600 |

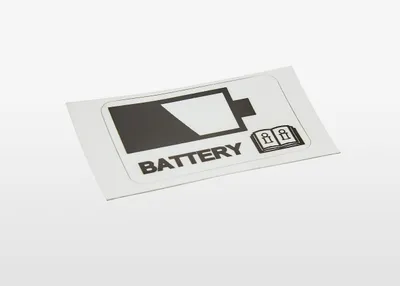

| 3HAC055008-001 | Label, battery | 39199080 | 0.002 kg kg | 0.002 kg kg | Label, battery |

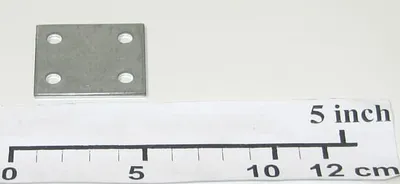

| 3HAC4609-1 | Rail bracket axis 3 | 84799070 | 0.032 kg kg | 0.032 kg kg | Rail bracket axis 3 |

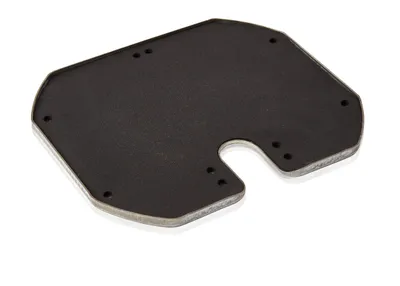

| 3HAC4405-1 | Cover | 84799070 | 0.191 kg kg | 0.191 kg kg | Cover |

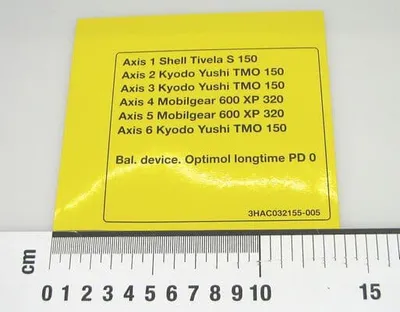

| 3HAC032155-005 | Label IRB 6600 | 39199080 | 0.002 kg kg | 0.002 kg kg | Label IRB 6600 |

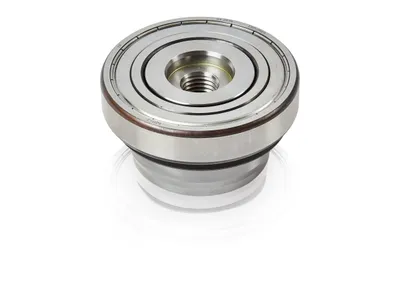

| 3HAC052444-003 | Groove ball bearing complete | 84799070 | 1.92 kg kg | 1.92 kg kg | Groove ball bearing complete |

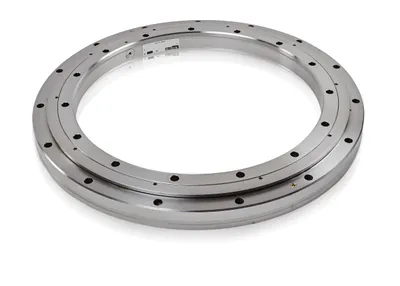

| 3HAC7504-1 | BEARING | 84828000 | 40 kg kg | 40 kg kg | BEARING |
| 3HAC029580-004 | Servo power cable,axis 2-6 | 85444290 | 0.86 kg kg | 0.86 kg kg | Servo power cable,axis 2-6 |

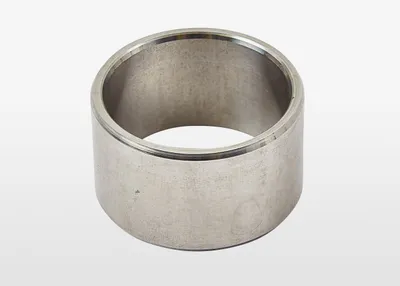

| 3HAC024001-001 | Distance | 84799070 | 0.039 kg kg | 0.039 kg kg | Distance |
| 3HNA003258-001 | HOSEKIT ROBOBEL,SPARE UNIVERSAL | 85389099 | 0 kg kg | 0 kg kg | HOSEKIT ROBOBEL,SPARE UNIVERSAL |
| 3HNA015573-002 | CABLE X1/2 - PIB.X2/MIB.X13 15M | 85444290 | 5 kg kg | 6 kg kg | CABLE X1/2 - PIB.X2/MIB.X13 15M |
| 3HAC081484-001 | Main harness ML,Basic+C1+C2+Air,CR | 85444290 | 1.25 kg kg | 1.5 kg kg | Main harness ML,Basic+C1+C2+Air,CR |
| 3HNA010754-003 | COVER VERTICALARM | 84799070 | 0 kg kg | 0 kg kg | COVER VERTICALARM |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| WEEE Category | Product Not in WEEE Scope |
