Food Safe three phase motors Parts

ABB

CFSWDM3613T-E

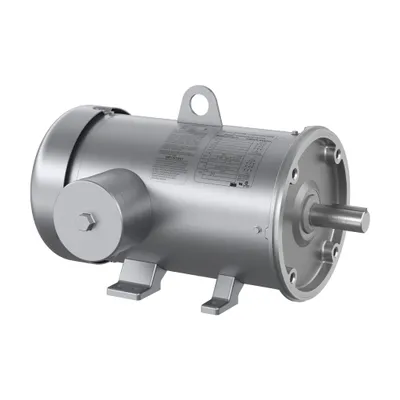

5HP,3500RPM,3PH,60HZ,184TC,3634M,TE

ABB

VFSWDM3543-E

.75HP,1170RPM,3PH,60HZ,56C,3530M,TE

ABB

FSWDM3542-E

.75HP,1765RPM,3PH,60HZ,56,3514M,TEN

ABB

FSWDM3546-E

1HP,1770RPM,3PH,60HZ,56,3522M,TENV

ABB

VFSWDM3554T-5E

1.5HP,1770RPM,3PH,60HZ,143TC,3524M

ABB

CFSWDM3554T-5E

1.5HP,1770RPM,3PH,60HZ,145TC,3526M

ABB

CFSWDM3615T-5E

5HP,1750RPM,3PH,60HZ,184TC,3646M,TE

ABB

VFSWDM3558T-E

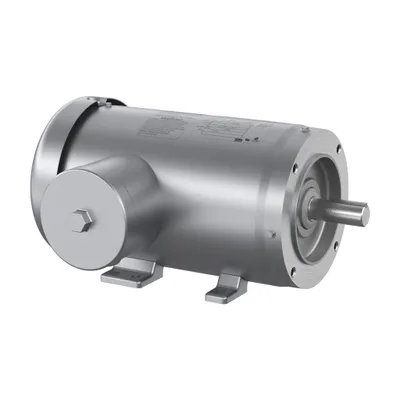

2HP,1760RPM,3PH,60HZ,145TC,3532M,TE

ABB

CFSWDM3558T-E

2HP,1760RPM,3PH,60HZ,145TC,3532M,TE

ABB

VFSWDM3537-E

.5HP,3500RPM,3PH,60HZ,56C,3516M,TEN

ABB

CFSWDM3558T-5E

2HP,1765RPM,3PH,60HZ,145TC,3528M,TE

ABB

VFSWDM3613T-E

5HP,3500RPM,3PH,60HZ,184TC,3634M,TE

ABB

VFSWDM3554T-E

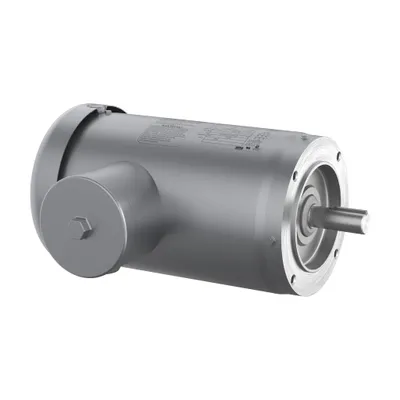

1.5HP,1770RPM,3PH,60HZ,145TC,3526M

ABB

CFSWDM3554T-E

1.5HP,1770RPM,3PH,60HZ,145TC,3526M

ABB

CFSWDM3546T-5E

1HP,1770RPM,3PH,60HZ,143TC,3522M,TE

ABB

VFSWDM3558T-5E

2HP,1765RPM,3PH,60HZ,143TC,3528M,TE

ABB

VFSWDM3546T-5E

1HP,1770RPM,3PH,60HZ,143TC,3522M,TE

ABB

CFSWDM3709T-E

7.5HP,3500RPM,3PH,60HZ,213TC,3734M

ABB

VFSWDM3713T-E

15HP,3500RPM,3PH,60HZ,215TC,3756M,T

ABB

VFSWDM3709T-E

7.5HP,3500RPM,3PH,60HZ,213TC,3734M

ABB

CFSWDM3546-E

1HP,1770RPM,3PH,60HZ,56C,3522M,TENV

ABB

CFSWDM3556-E

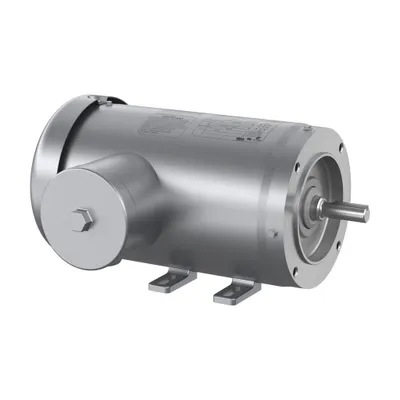

1HP,1170RPM,3PH,60HZ,56C,3532M,TEFC

ABB

CFSWDM23994T-E

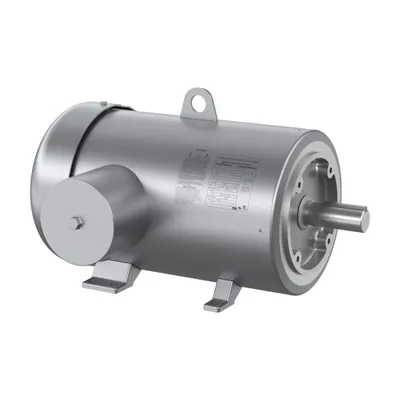

15HP,3540RPM,3PH,60HZ,254TC,TEFC,F1

ABB

CFSWDM3559T-E

3HP,3470RPM,3PH,60HZ,145TC,3546M,TE

Compare Food Safe three phase motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Output Power	Product Net Weight	Dimension Diagram
CFSWDM3613T-E	CFSWDM3613T-E	95 %	5 Hp	84 lb	36LYR552
VFSWDM3543-E	VFSWDM3543-E	64 %	0.750.000 Hp	45 lb	35LYE4656
FSWDM3542-E	FSWDM3542-E	70 %	0.750.000 Hp	37 lb	35LYE4927
FSWDM3546-E	FSWDM3546-E	66 %	1 Hp	41 lb	35LYE4927
VFSWDM3554T-5E	VFSWDM3554T-5E	73 %	1.5 Hp	48 lb	35LYE4709
CFSWDM3554T-5E	CFSWDM3554T-5E	75 %	1.5 Hp	45 lb	35LYE4743
CFSWDM3615T-5E	CFSWDM3615T-5E	82 %	5 Hp	121 lb	36LYR552
VFSWDM3558T-E	VFSWDM3558T-E	81 %	2 Hp	63 lb	35LYE4709
CFSWDM3558T-E	CFSWDM3558T-E	81 %	2 Hp	45 lb	35LYE4743
VFSWDM3537-E	VFSWDM3537-E	84 %	0.5 Hp	35 lb	35LYE4656
CFSWDM3558T-5E	CFSWDM3558T-5E	75 %	2 Hp	45 lb	35LYE4743
VFSWDM3613T-E	VFSWDM3613T-E	95 %	5 Hp	81 lb	36LYR533
VFSWDM3554T-E	VFSWDM3554T-E	75 %	1.5 Hp	45 lb	35LYE4709
CFSWDM3554T-E	CFSWDM3554T-E	75 %	1.5 Hp	48 lb	35LYE4743
CFSWDM3546T-5E	CFSWDM3546T-5E	67 %	1 Hp	43 lb	35LYE4742
VFSWDM3558T-5E	VFSWDM3558T-5E	81 %	2 Hp	56 lb	35LYE4709
VFSWDM3546T-5E	VFSWDM3546T-5E	67 %	1 Hp	39 lb	35LYE4717
CFSWDM3709T-E	CFSWDM3709T-E	93 %	7.5 Hp	129 lb	37LYQ242
VFSWDM3713T-E	VFSWDM3713T-E	90 %	15 Hp	187 lb	37LYQ227
VFSWDM3709T-E	VFSWDM3709T-E	93 %	7.5 Hp	131 lb	37LYQ227
CFSWDM3546-E	CFSWDM3546-E	66 %	1 Hp	37 lb	35LYE4735
CFSWDM3556-E	CFSWDM3556-E	65 %	1 Hp	45 lb	35LYE4741
CFSWDM23994T-E	CFSWDM23994T-E	90 %	15 Hp	260 lb	39LYE646
CFSWDM3559T-E	CFSWDM3559T-E	91 %	3 Hp	61 lb	35LYE4743

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	H
Number of Phases	3-phase
