Flameproof IEC Low voltage motors Parts
Compare Flameproof IEC Low voltage motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | ABB Type Designation | Invoice Description | Bearing NDE | Product Net Weight | Gross Weight |
|---|---|---|---|---|---|

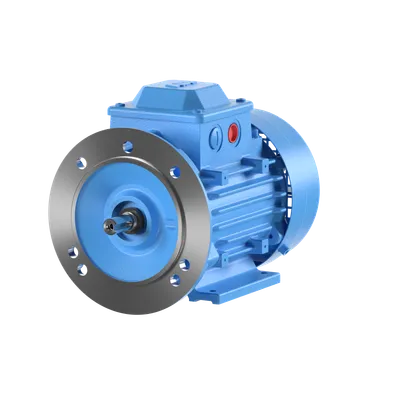

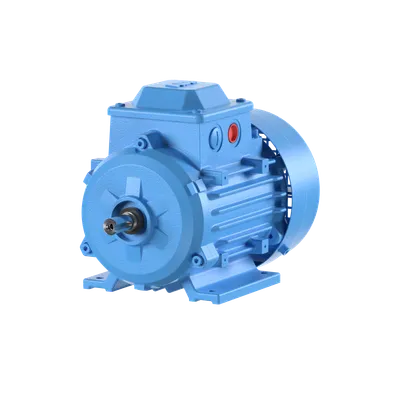

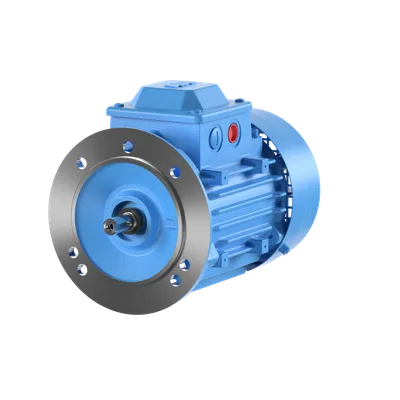

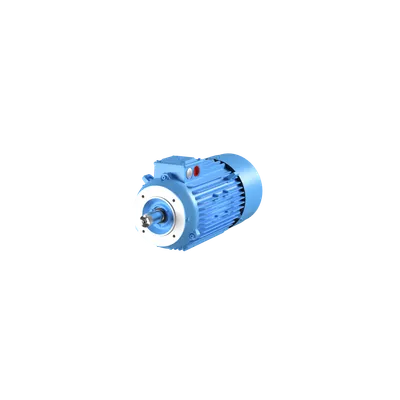

| 3GBA092510-CSC | M2BAX 90LA 4 | M2BAX 90LA4 | 6204-2Z/C3 | 24 kg kg | 27 kg kg |

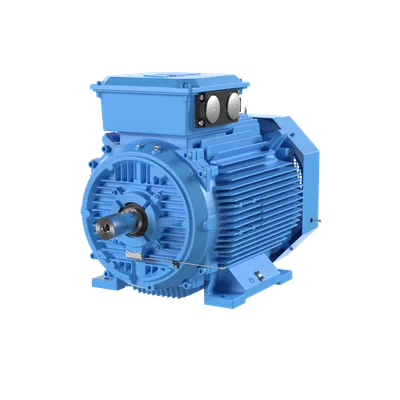

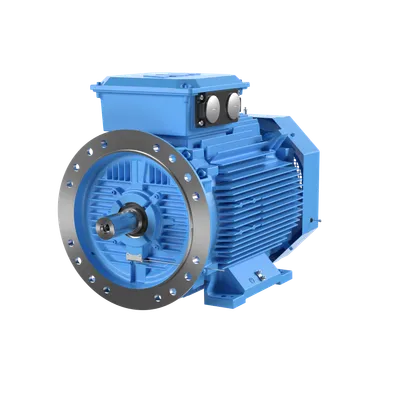

| 3GBL202433-ASB | M3BL 200MLC 4 | M3BL 200MLC 4 | 6210-2Z/C3 | 304 kg kg | 314 kg kg |

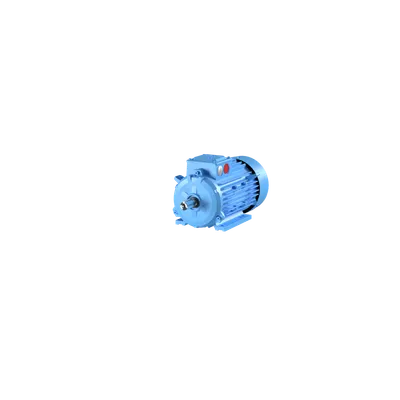

| 3GBA083420-ASN | M2BAX 80MLB 6 | M2BAX 80MLB 6 | 6204-2Z/C3 | 23 kg kg | 26 kg kg |
| 3GJM201410-BEL | M3JM 200MLA 2 | M3JM 200MLA 2 | 6310M/C3 | 343 kg kg | 353 kg kg |

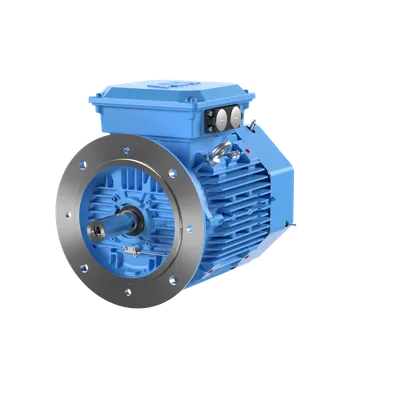

| 3GGP181410-ASD | M3GP 180MLA 2 | M3GP 180MLA 2 | 6209/C3 | 199 kg kg | 209 kg kg |
| 3GJM181410-BSL | M3JM 180MLA 2 | M3JM 180MLA 2 | 6310/C3 | 291 kg kg | 301 kg kg |
| 3GGP181410-BSL | M3GP 180MLA 2 | M3GP 180MLA 2 | 6209/C3 | 205 kg kg | 215 kg kg |

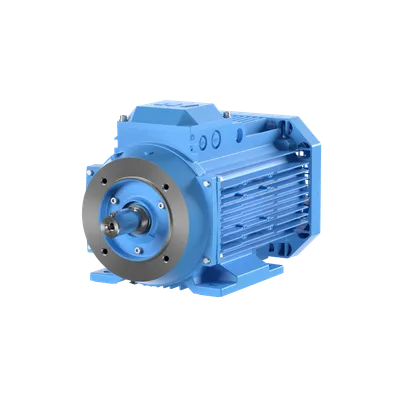

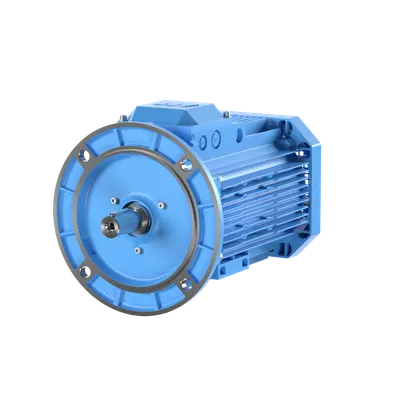

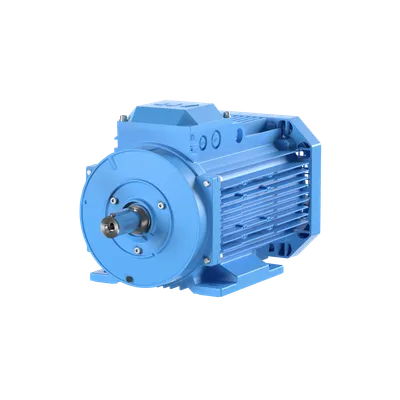

| 3GAA103550-JFK | M3AA 100LE 6 | M3AA 100LE 6 | 6205-2Z/C3 | 35 kg kg | 40 kg kg |
| 3GAA103550-AFK | M3AA 100LE 6 | M3AA 100LE 6 | 6205-2Z/C3 | 35 kg kg | 40 kg kg |

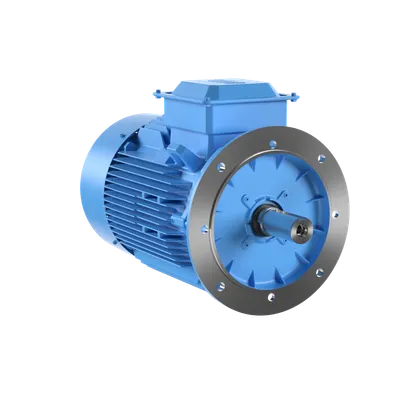

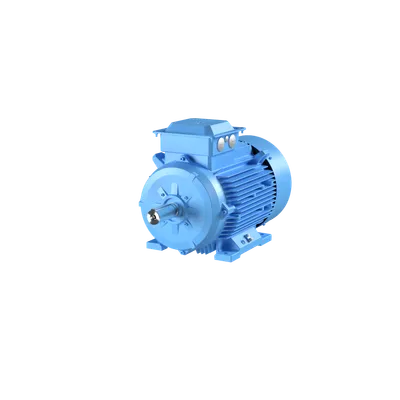

| 3GBA203410-BDCCN | M2BAX 200MLA 6 | M2BAX 200MLA 6 | 6309-2Z/C3 | 212 kg kg | 222 kg kg |
| 3GAA103550-BFK | M3AA 100LE 6 | M3AA 100LE 6 | 6205-2Z/C3 | 35 kg kg | 40 kg kg |

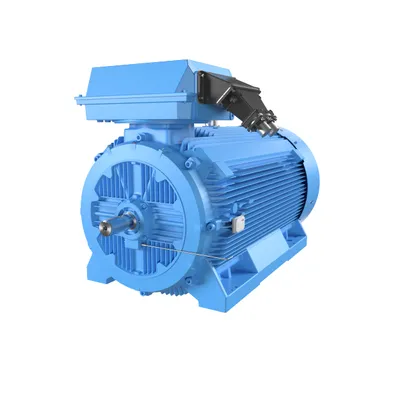

| 3GBP406530-BXG | M3BP 400LC 12 | M3BP 400LC 12 | 6319/C3 | 3400 kg kg | 3440 kg kg |
| 3GBA203410-ADNCN | M2BAX 200MLA 6 | M2BAX 200MLA 6 | 6212-2Z/C3 | 244 kg kg | 254 kg kg |
| 3GBA092510-BSC | M2BAX 90LA 4 | M2BAX 90LA 4 | 6204-2Z/C3 | 24 kg kg | 27 kg kg |
| 3GBA092510-BST | M2BAX 90LA 4 | M2BAX 90LA 4 | 6204-2Z/C3 | 23 kg kg | 26 kg kg |
| 3GBA092510-ASC | M2BAX 90LA 4 | M2BAX 90LA 4 | 6204-2Z/C3 | 24 kg kg | 27 kg kg |
| 3GBL202433-BSB | M3BL 200MLC 4 | M3BL 200MLC 4 | 6210-2Z/C3 | 304 kg kg | 314 kg kg |
| 3GBL202433-HSB | M3BL 200MLC 4 | M3BL 200MLC 4 | 6210-2Z/C3 | 304 kg kg | 314 kg kg |

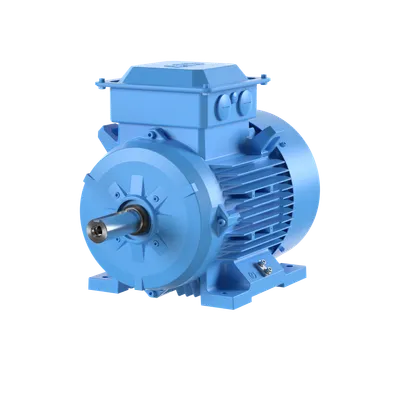

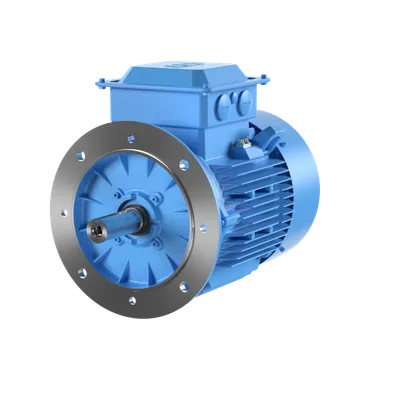

| 3GBA181410-ADPIN | M2BAX 180MLA 2 | M2BAX 180MLA 2 | 6210-2Z/C3 | 181 kg kg | 191 kg kg |
| 3GBP359238-BDG | M3BP 355SMC 2/4 | M3BP 355SMC 2/4 | 6316M/C3 | 1750 kg kg | 1780 kg kg |

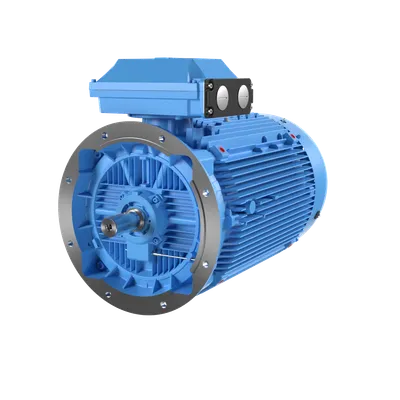

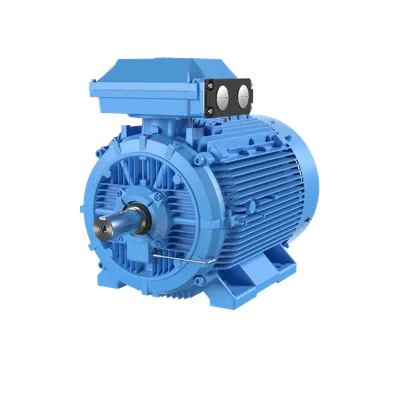

| 3GGP352410-BDM | M3GP 355MLA 4 | M3GP 355MLA 4 | 6316/C3 | 2140 kg kg | 2170 kg kg |
| 3GGP352410-ADK | M3GP 355MLA 4 | M3GP 355MLA 4 | 6316/C3 | 2140 kg kg | 2170 kg kg |
| 3GGP352410-ADG | M3GP 355MLA 4 | M3GP 355MLA 4 | 6316/C3 | 2140 kg kg | 2170 kg kg |
| 3GBA181410-BDNIN | M2BAX 180MLA 2 | M2BAX 180MLA 2 | 6209-2Z/C3 | 199 kg kg | 209 kg kg |
Common to all listed parts
| Altitude | 1000 m m |
| IC Class | IC411 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
