Flameproof IEC Low voltage motors Parts
Compare Flameproof IEC Low voltage motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | ABB Type Designation | Output Power | Product Net Depth / Length | Product Net Weight | Gross Weight |
|---|---|---|---|---|---|

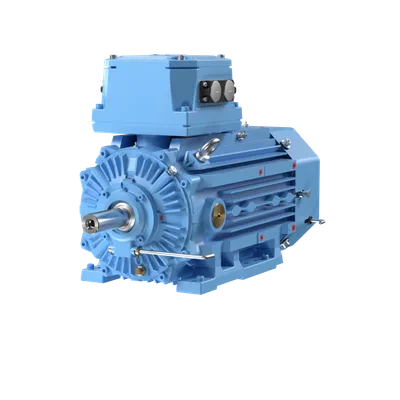

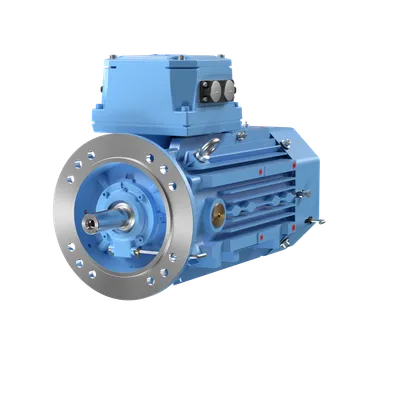

| 3GKP164410-AFK | M3KP 160MLA 8 | 4 kW kW | 808 mm mm | 212 kg kg | 222 kg kg |
| 3GKP164410-BFK | M3KP 160MLA 8 | 4 kW kW | 808 mm mm | 212 kg kg | 222 kg kg |

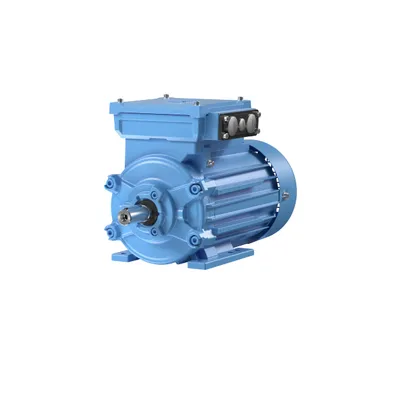

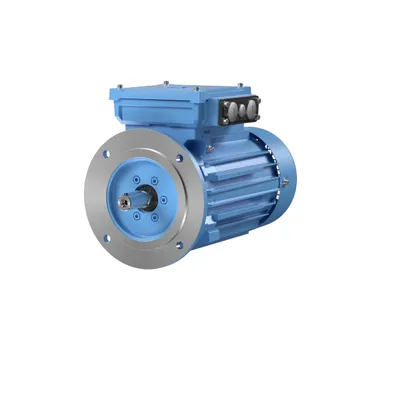

| 3GKP114330-ADK | M3KP 112MC 8 | 1.5 kW kW | 485 mm mm | 72 kg kg | 77 kg kg |
| 3GKP114330-BDK | M3KP 112MC 8 | 1.5 kW kW | 485 mm mm | 72 kg kg | 77 kg kg |

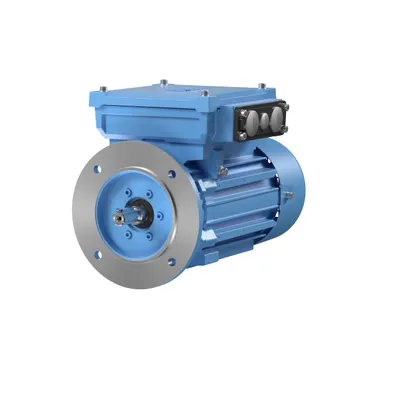

| 3GKP082470-BEK | M3KP 80MLG 4 | 0.75 kW kW | 409 mm mm | 41 kg kg | 44 kg kg |
| 3GKP082470-AEK | M3KP 80MLG 4 | 0.75 kW kW | 409 mm mm | 41 kg kg | 44 kg kg |

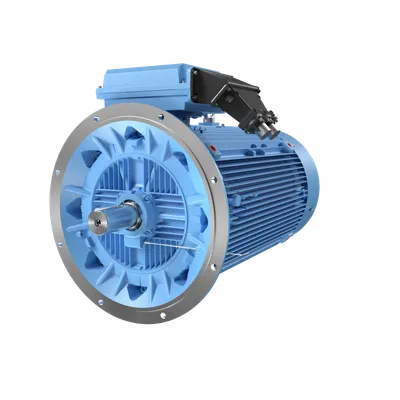

| 3GKP454540-BEK | M3KP 450LD 8 | 600 kW kW | 2073 mm mm | 4896 kg kg | 4936 kg kg |

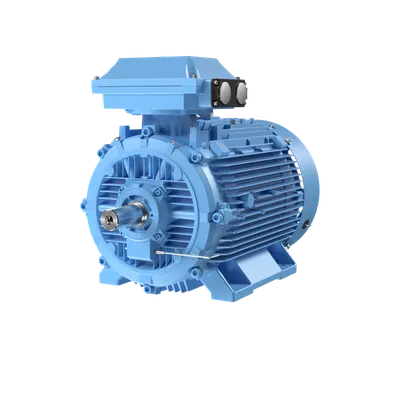

| 3GKP352410-ADK | M3KP 355MLA 4 | 355 kW kW | 1584 mm mm | 2173 kg kg | 2203 kg kg |
| 3GKP352410-BDK | M3KP 355MLA 4 | 355 kW kW | 1584 mm mm | 2187 kg kg | 2217 kg kg |

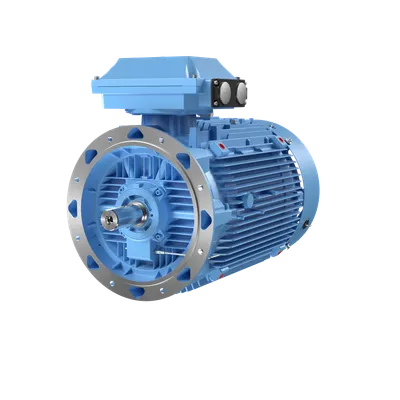

| 3GKP354420-BDK | M3KP 355MLB 8 | 250 kW kW | 1584 mm mm | 2224 kg kg | 2254 kg kg |

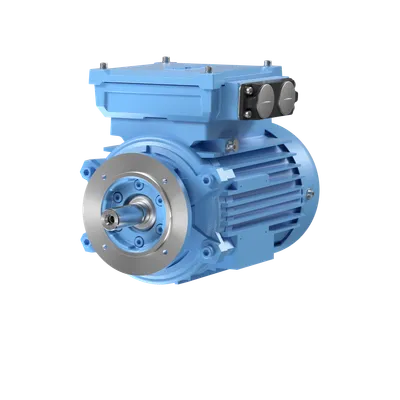

| 3GKP104820-CSK | M3KP 100LKB 8 | 1.1 kW kW | 501 mm mm | 68 kg kg | 73 kg kg |
| 3GKP104820-BSK | M3KP 100LKB 8 | 1.1 kW kW | 501 mm mm | 68 kg kg | 73 kg kg |
| 3GKP104820-ASK | M3KP 100LKB 8 | 1.1 kW kW | 501 mm mm | 68 kg kg | 73 kg kg |
| 3GBP202430-ASG | M3BP 200MLC 4 | 45 kW kW | 822 mm mm | 319 kg kg | 329 kg kg |

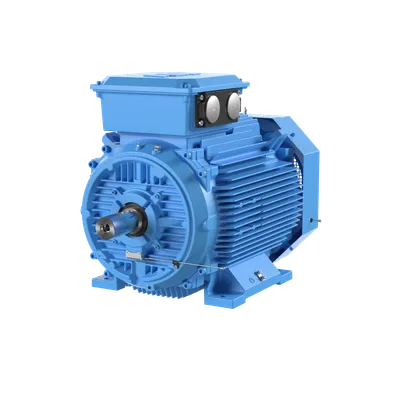

| 3GBP222230-AEG | M3BP 225SMC 4 | 55 kW kW | 879 mm mm | 370 kg kg | 380 kg kg |
| 3GBP222230-ASG | M3BP 225SMC 4 | 55 kW kW | 879 mm mm | 370 kg kg | 380 kg kg |
| 3GBP222230-ADG | M3BP 225SMC 4 | 55 kW kW | 879 mm mm | 370 kg kg | 380 kg kg |
| 3GAA051312-ASF | M3AA 56B 2 | 0.12 kW kW | 183 mm mm | 2.9 kg kg | 3.9 kg kg |
| 3GAA051312-BSF | M3AA 56B 2 | 0.12 kW kW | 183 mm mm | 2.9 kg kg | 3.9 kg kg |
| 3GBP202430-AEG | M3BP 200MLC 4 | 45 kW kW | 822 mm mm | 319 kg kg | 329 kg kg |
| 3GBP202430-ADG | M3BP 200MLC 4 | 45 kW kW | 822 mm mm | 319 kg kg | 329 kg kg |

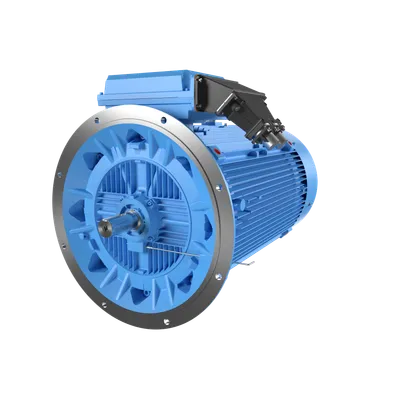

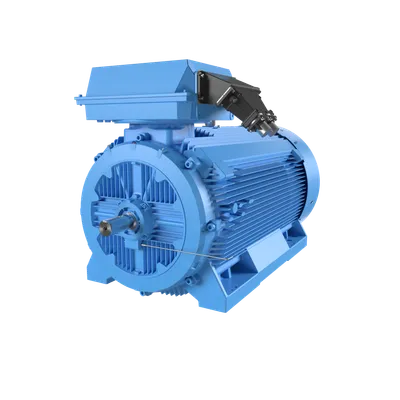

| 3GBP451510-ADR | M3BP 450LA 2 | 800 kW kW | 2147 mm mm | 4000 kg kg | 4040 kg kg |
| 3GBP451510-BDR | M3BP 450LA 2 | 800 kW kW | 2147 mm mm | 4000 kg kg | 4040 kg kg |

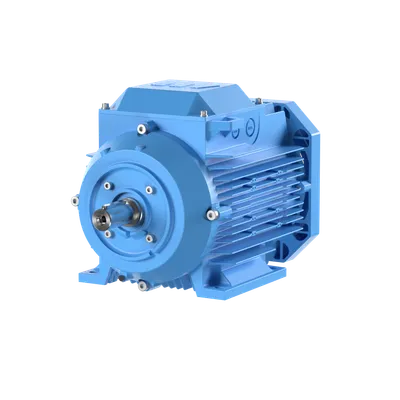

| 3GAA114360-ASE | M3AA 112MF 8 | 2 kW kW | 393 mm mm | 32 kg kg | 37 kg kg |
Common to all listed parts
| Product Name | 3-Phase squirrel cage motor |
| Frequency (f) | 50 Hz Hz |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Two Speed Motor | No |
