PanelSeT for outdoors operation​ Parts

Showing 73–83 of 83 parts
Schneider Electric NSYTLCUHD – PanelSeT S3HD outdoor heavy duty - aluminium cable gland plate W140xD130
Schneider Electric
NSYTLCUHD

PanelSeT S3HD outdoor heavy duty - aluminium cable gland plate W140xD130

Schneider Electric NSYTLAUHD – PanelSeT S3HD outdoor heavy duty - aluminium cable gland plate W140xD80
Schneider Electric
NSYTLAUHD

PanelSeT S3HD outdoor heavy duty - aluminium cable gland plate W140xD80

Schneider Electric NSYAPFXWM – PanelSeT - plinth fixing kit stainless steel 304L
Schneider Electric
NSYAPFXWM

PanelSeT - plinth fixing kit stainless steel 304L

Schneider Electric NSYSPLVX6200 – PanelSeT S3HD - outdoor heavy duty - side ventilated plinth - H200 D600 IP55
Schneider Electric
NSYSPLVX6200

PanelSeT S3HD - outdoor heavy duty - side ventilated plinth - H200 D600 IP55

Schneider Electric NSYSPSX4200 – PanelSeT S3HD - outdoor heavy duty - side plinth - H100 D400 IP55
Schneider Electric
NSYSPSX4200

PanelSeT S3HD - outdoor heavy duty - side plinth - H100 D400 IP55

Schneider Electric NSYSPSX3200 – PanelSeT S3HD - outdoor heavy duty - side plinth - H200 D300 IP55
Schneider Electric
NSYSPSX3200

PanelSeT S3HD - outdoor heavy duty - side plinth - H200 D300 IP55

Schneider Electric NSYSPLVX6200SF – PanelSeT SFHD - outdoor heavy duty - side ventilated plinth - H200 D600 IP55
Schneider Electric
NSYSPLVX6200SF

PanelSeT SFHD - outdoor heavy duty - side ventilated plinth - H200 D600 IP55

Schneider Electric NSYSPLVX4200SF – PanelSeT SFHD - outdoor heavy duty - side ventilated plinth - H200 D400 IP55
Schneider Electric
NSYSPLVX4200SF

PanelSeT SFHD - outdoor heavy duty - side ventilated plinth - H200 D400 IP55

Schneider Electric NSYSPFVX12200 – PanelSeT SFHD - outdoor heavy duty - front ventilated plinth - H200 W600 IP55
Schneider Electric
NSYSPFVX12200

PanelSeT SFHD - outdoor heavy duty - front ventilated plinth - H200 W600 IP55

Schneider Electric NSYSPFVX8200 – PanelSeT S3HD SFHD - outdoor heavy duty - front ventilated plinth- H200 W800 IP55
Schneider Electric
NSYSPFVX8200

PanelSeT S3HD SFHD - outdoor heavy duty - front ventilated plinth- H200 W800 IP55

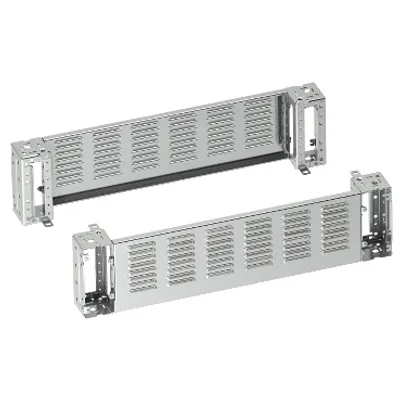

Schneider Electric NSYSPFVX6200 – PanelSeT S3HD SFHD - outdoor heavy duty - front ventilated plinth- H200 W600 IP55
Schneider Electric
NSYSPFVX6200

PanelSeT S3HD SFHD - outdoor heavy duty - front ventilated plinth- H200 W600 IP55

Compare PanelSeT for outdoors operation​

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNProduct or component typeAccessory / separate part categorySurface finishDepthNet weight
NSYTLCUHDCable gland plateCable management accessoryBrushed finishNominal : 130 mm, Real : 245 mm0.272 kg
NSYTLAUHDCable gland plateCable management accessoryBrushed finishNominal : 80 mm0.1 kg
NSYAPFXWMFixing kitFixing accessory——0.75 kg
NSYSPLVX6200Ventilated plinth side panelEnclosure accessoryUntreatedNominal : 600 mm3.63 kg
NSYSPSX4200Plinth side panelEnclosure accessoryUntreatedNominal : 400 mm2.096 kg
NSYSPSX3200Plinth side panelEnclosure accessoryUntreatedNominal : 300 mm1.399 kg
NSYSPLVX6200SFVentilated plinth side panelEnclosure accessoryUntreatedNominal : 600 mm3.63 kg
NSYSPLVX4200SFVentilated plinth side panelEnclosure accessoryUntreatedNominal : 400 mm2.096 kg
NSYSPFVX12200Ventilated front plinthEnclosure accessoryUntreated—13.908 kg
NSYSPFVX8200Ventilated front plinthEnclosure accessoryUntreated—9 kg
NSYSPFVX6200Ventilated front plinthEnclosure accessoryUntreated—7.52 kg

Common to all listed parts

RangePanelSeT
ApplicationMulti-purpose
