Carrying plates Parts
























Compare Carrying plates
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Workpiece pallet length [lWT] [mm] | Plate weight [mPL] [kg] | Flatness [mm] | Workpiece pallet width [bWT] [mm] | Weight [kg] |
|---|---|---|---|---|---|
| 3842524608 | 800 | 21.7 | 1 | 800 | 21.7 |
| 3842524609 | 1040 | 28.2 | 1.2 | 800 | 28.2 |

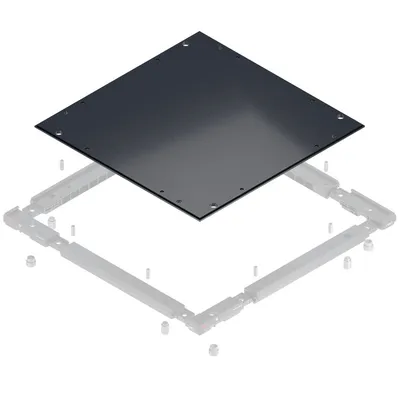

| 3842524606 | 800 | 17.3 | 1 | 640 | 17.3 |
| 3842524605 | 640 | 8.7 | 1 | 640 | 8.7 |
| 3842538312 | 640 | 13.8 | 1 | 640 | 13.8 |
| 3842538311 | 640 | 10.3 | 1 | 480 | 10.3 |
| 3842538310 | 640 | 8.6 | 0.8 | 400 | 8.6 |
| 3842524607 | 1040 | 22.5 | 1.2 | 640 | 22.8 |
| 3842524604 | 800 | 12.9 | 1 | 480 | 12.9 |
| 3842524603 | 640 | 6.5 | 1 | 480 | 6.5 |
| 3842524602 | 480 | 4.9 | 0.8 | 480 | 4.9 |
| 3842538309 | 480 | 7.7 | 0.8 | 480 | 7.7 |
| 3842538308 | 480 | 6.4 | 0.6 | 400 | 6.4 |
| 3842538346 | 480 | 5.1 | 0.6 | 320 | 5.1 |
| 3842524601 | 800 | 10.8 | 1 | 400 | 10.8 |
| 3842524600 | 640 | 5.4 | 0.8 | 400 | 5.4 |
| 3842524599 | 480 | 4 | 0.6 | 400 | 4 |
| 3842524598 | 400 | 3.4 | 0.6 | 400 | 3.4 |
| 3842538307 | 400 | 5.3 | 0.6 | 400 | 5.3 |
| 3842524597 | 480 | 3.7 | 0.6 | 320 | 3.2 |
| 3842524596 | 400 | 3.7 | 0.6 | 320 | 2.7 |
| 3842524595 | 320 | 2.1 | 0.5 | 320 | 2.1 |
| 3842524594 | 400 | 2 | 0.5 | 240 | 2 |
| 3842548684 | 1200 | 36 | 1.2 | 800 | 32.6 |
Common to all listed parts
| Workpiece pallet total weight [mG] [kg] | 100 |
| Material | Aluminum |
