Bosch Rexroth 3842538308

CARRYING PLATE 480X400X12,7 ALU

MPN: 3842538308
Category: Carrying plates

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842538308?

Carrying plate WT 2, AL 12.7 400/480

For self-assembly of workpiece pallets for product support

Completely drilled and ready for assembly

15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating

10 standard sizes in aluminum, 8 mm thick

13 standard sizes in aluminum, 12.7 mm thick

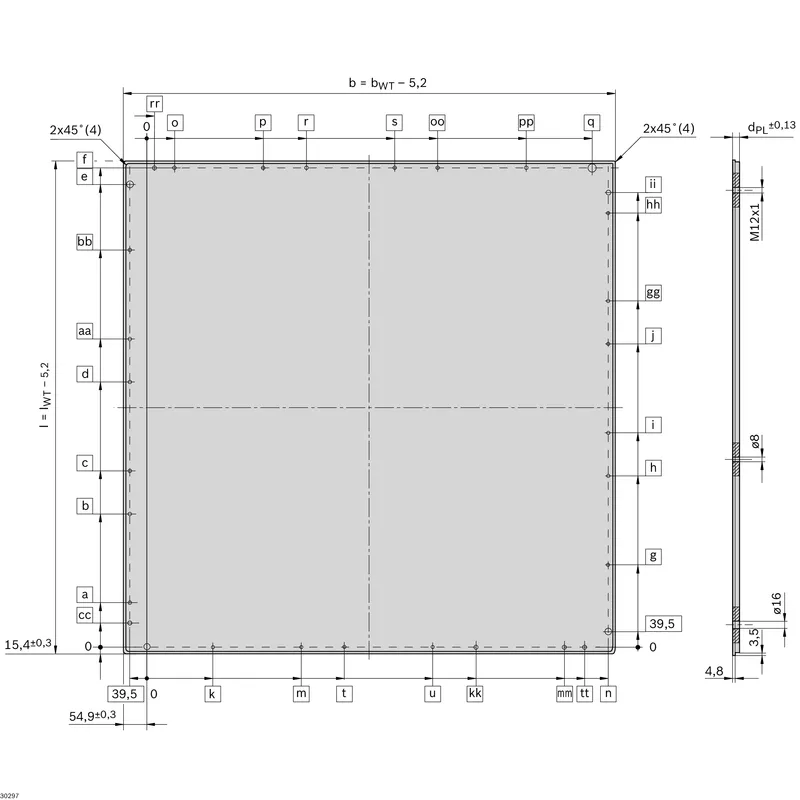

You will find drilling plans for identification and data storage systems in the RFID systems catalog

Can be combined with frame modules of WT 2 workpiece pallets

Specifications

Dimension [a] [mm]	108.5
Plate thickness [dPL] [mm]	12.7
Workpiece pallet total weight [mG] [kg]	100
Dimension b [mm]	323.5
Workpiece pallet length [lWT] [mm]	480
Plate weight [mPL] [kg]	6.4
Flatness [mm]	0.6
Notice	with four threaded holes for reinforcing bolts
Material	Aluminum
Workpiece pallet width [bWT] [mm]	400
Weight [kg]	6.4
