Bracket Parts
Compare Bracket
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Profile slot | Dimensions | Bending moment 1 [Nm] | Bending moment 2 [Nm] | Weight [kg] |
|---|---|---|---|---|---|

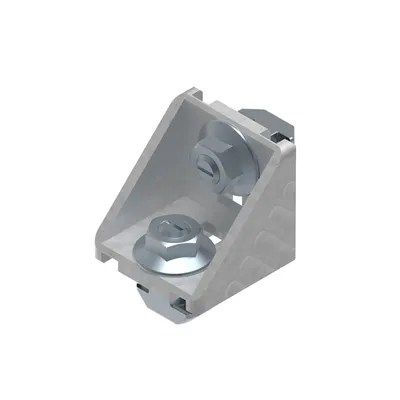

| 3842523561 | 10 | 45x45 | 60.0 | 160.0 | 0.11 |
| 3842523558 | 10 | 45x45 | 60.0 | 160.0 | 0.06 |

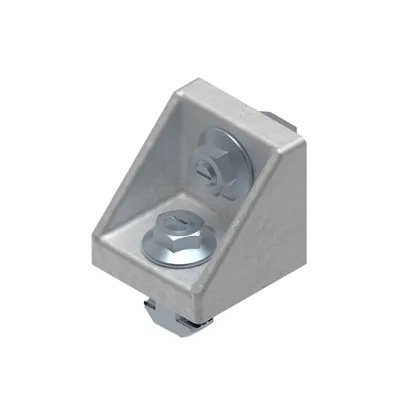

| 3842352009 | 10 | 43x42 | — | 160.0 | 0.12 |
| 3842348526 | 10 | 43x42 | — | 160.0 | 0.06 |

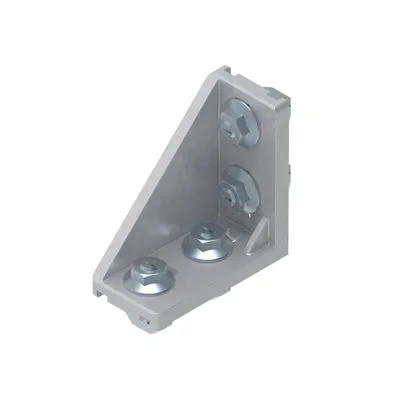

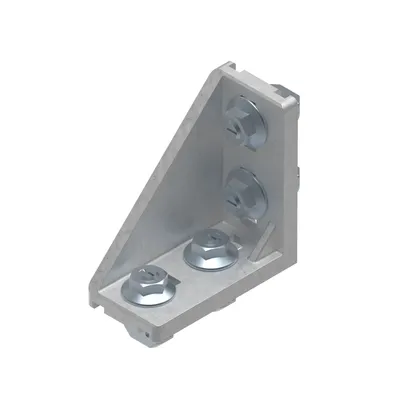

| 3842551604 | 10 | 40x80 | 180.0 | 400.0 | 0.22 |
| 3842529386 | 10 | 40x80 | 180.0 | 400.0 | 0.22 |
| 3842529005 | 10 | 40x80 | 180.0 | 400.0 | 0.12 |

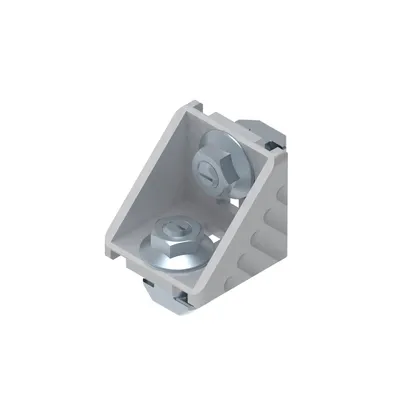

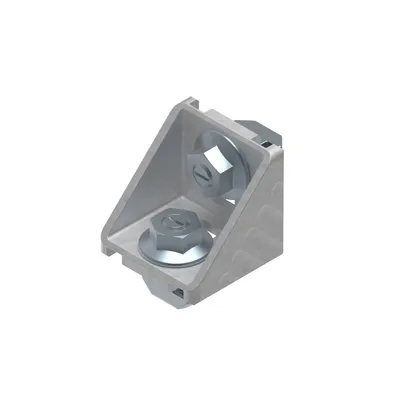

| 3842551603 | 10 | 40x40 | 55.0 | 145.0 | 0.09 |
| 3842529383 | 10 | 40x40 | 55.0 | 145.0 | 0.08 |
| 3842528967 | 10 | 40x40 | 55.0 | 145.0 | 0.04 |

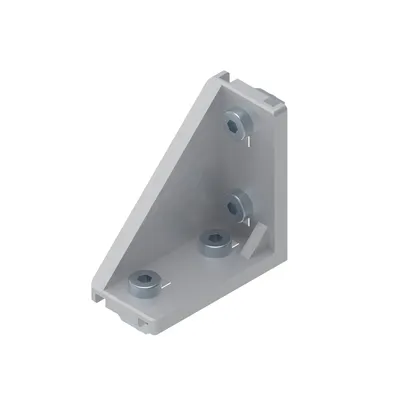

| 3842551601 | 8 | 30x60 | 100.0 | 170.0 | 0.1 |

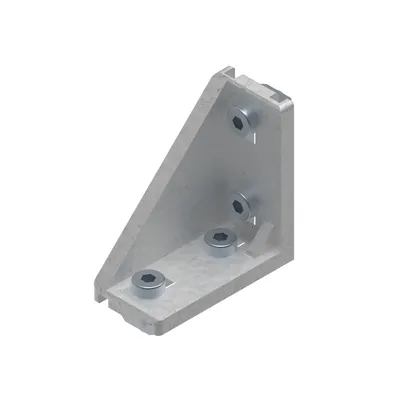

| 3842523541 | 8 | 30x60 | 100.0 | 170.0 | 0.1 |
| 3842523538 | 8 | 30x60 | 100.0 | 170.0 | 0.06 |

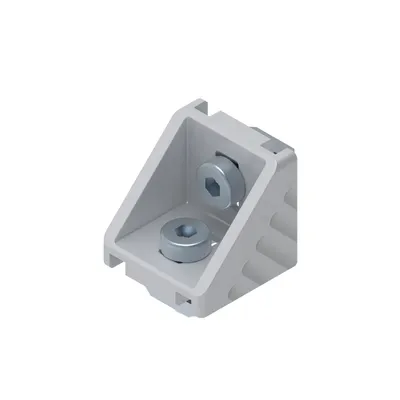

| 3842551598 | 8 | 30x30 | 25.0 | 75.0 | 0.04 |

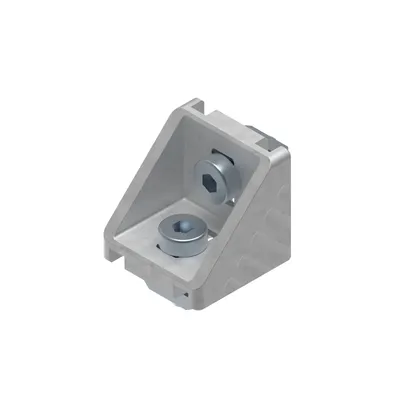

| 3842523528 | 8 | 30x30 | 25.0 | 75.0 | 0.04 |

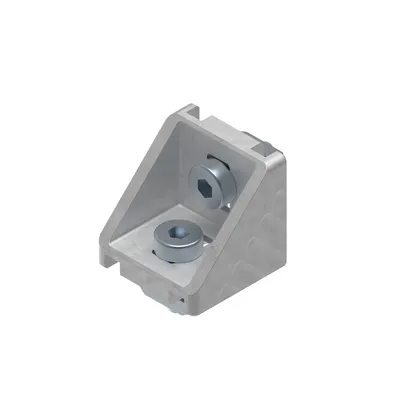

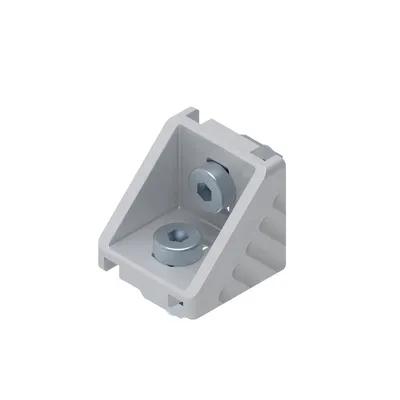

| 3842551600 | 10; 8 | 30x30 | 25.0 | 75.0 | 0.05 |
| 3842523530 | 10; 8 | 30x30 | 25.0 | 75.0 | 0.05 |

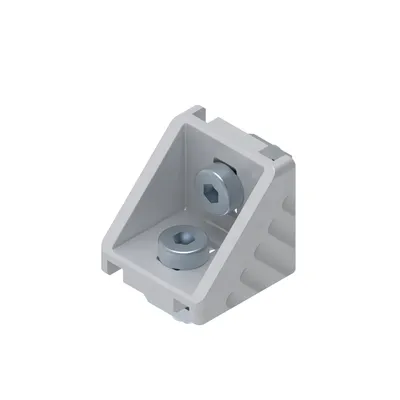

| 3842551599 | 10 | 30x30 | 25.0 | 75.0 | 0.05 |

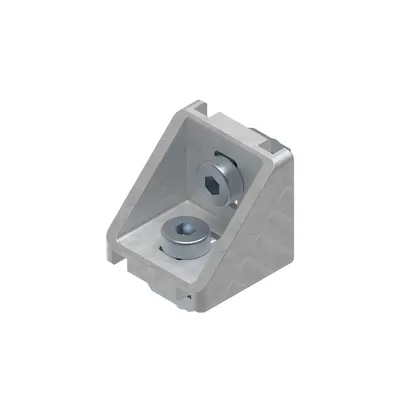

| 3842523532 | 10 | 30x30 | 25.0 | 75.0 | 0.05 |
| 3842523525 | 8 | 30x30 | 25.0 | 75.0 | 0.03 |

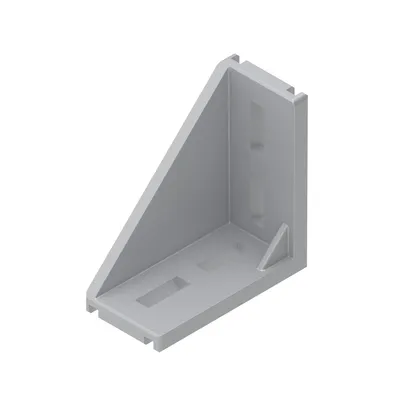

| 3842551597 | 6 | 20x40 | 15.0 | 50.0 | 0.03 |

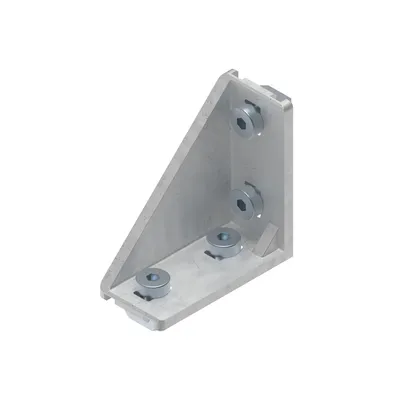

| 3842523520 | 6 | 20x40 | 15.0 | 50.0 | 0.03 |
| 3842523517 | 6 | 20x40 | 15.0 | 50.0 | 0.02 |

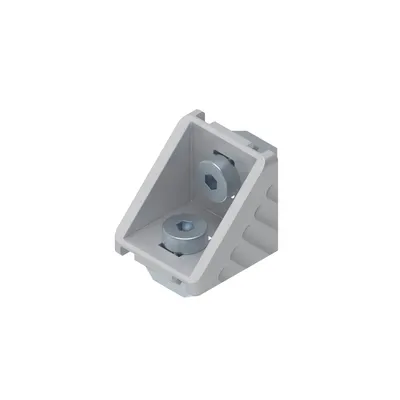

| 3842551596 | 6 | 20x20 | 6.0 | 25.0 | 0.02 |
Common to all listed parts
| ESD | Yes |
