Home / Bosch Rexroth / Bracket / Bosch Rexroth 3842551597

Bosch Rexroth

Bosch Rexroth 3842551597

GUSSET 20X40 SILVER SET

MPN: 3842551597
Category: Bracket

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842551597?

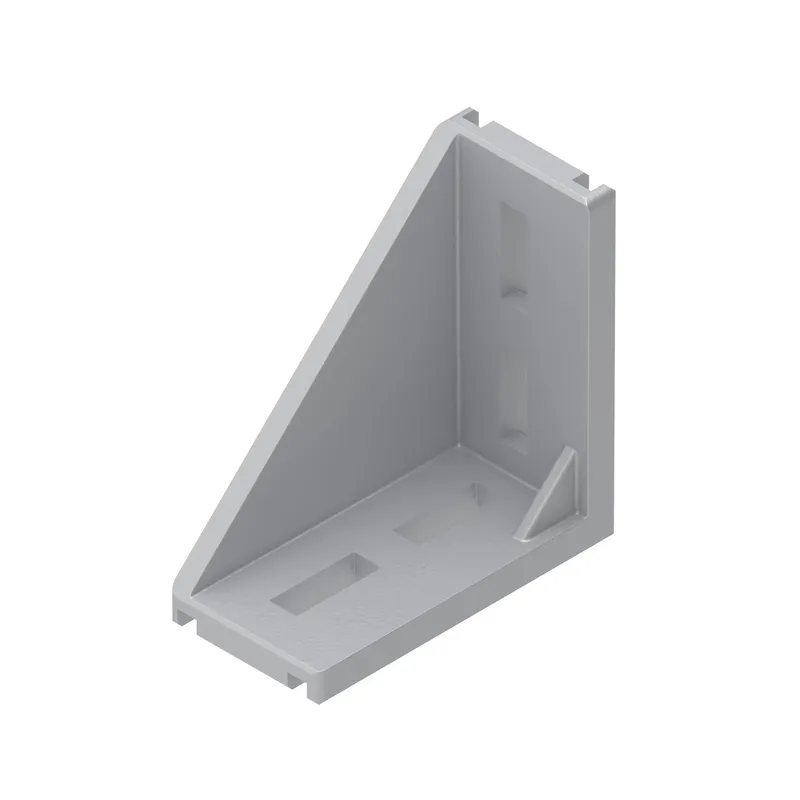

Bracket 20x40 set designLINE

Brackets with centering lugs for rapid, precise assembly with protection against turning

Centering lugs can be easily broken off for assembly on plates or at right angles to the slot

Version designLINE with special silver paint (RAL 9006) for an especially high-quality design

Intermediate element for positioning brackets in the next largest slot

Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005)

Profile finishing: not required

Specifications

Profile slot	6
ESD	Yes

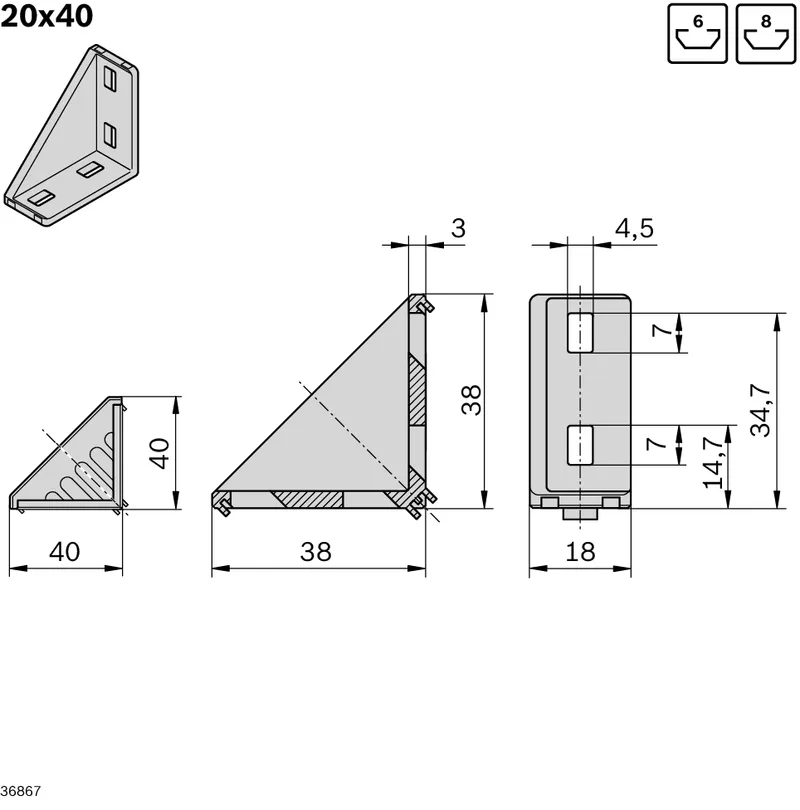

Dimensions	20x40
Color	White aluminum (RAL 9006)
designLINE	Yes
Fastening material included	Yes
Bending moment 1 [Nm]	15.0
Bending moment 2 [Nm]	50.0
Torsional moment [Nm]	8
Scope of delivery	Bracket designLINE; Incl. fastening material (FS)
Material information	Bracket designLINE: Diecast aluminum, vibratory ground, painted; Fastening material: Steel, galvanized
Material	Diecast aluminum, vibratory ground and painted
Fastening material	4x T-nut groove 8 M6; 4x cylinder head screw DIN 7984 M6x12
Recommended accessories	Cover cap for bracket 20x40, black (3842548845); Cover cap for bracket 20x40, signal gray (3842548844); Intermediate element for 8 mm slot (3842523516)
Weight [kg]	0.03
