Multi-axis systems Parts
Compare Multi-axis systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Maximum payload mex max [kg] | Maximum travel range smax y-axis [mm] | X-axis travel range (min. ... max.) | Y-axis travel range (min. ... max.) |
|---|---|---|---|---|---|
| R115855031 | 2HB-31 | 82.0 | 2869.0 | 60 mm ... 3000 mm | 60 mm ... 2869 mm |

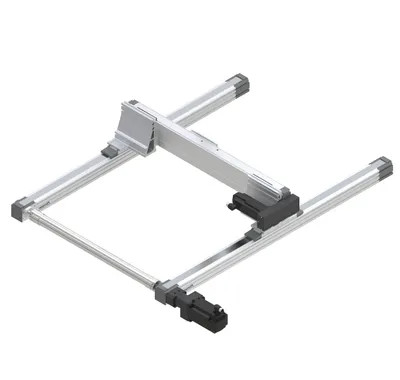

| R115855030 | 2HB-30 | 69.0 | 1523.0 | 60 mm ... 3000 mm | 100 mm ... 1523 mm |
| R115855021 | 2HB-21 | 36.0 | 2869.0 | 60 mm ... 3000 mm | 90 mm ... 2869 mm |
| R115855020 | 2HB-20 | 25.0 | 1219.0 | 60 mm ... 3000 mm | 90 mm ... 1219 mm |
| R115854033 | 2HA-33 | 82.0 | 1200.0 | 80 mm ... 3000 mm | 60 mm ... 1200 mm |
| R115854032 | 2HA-32 | 82.0 | 1200.0 | 80 mm ... 1825 mm | 60 mm ... 1200 mm |
| R115854031 | 2HA-31 | 52.0 | 1050.0 | 60 mm ... 3000 mm | 60 mm ... 1050 mm |
| R115854030 | 2HA-30 | 52.0 | 1050.0 | 60 mm ... 1590 mm | 60 mm ... 1050 mm |
| R115854023 | 2HA-23 | 44.5 | 1050.0 | 60 mm ... 3000 mm | 50 mm ... 1050 mm |

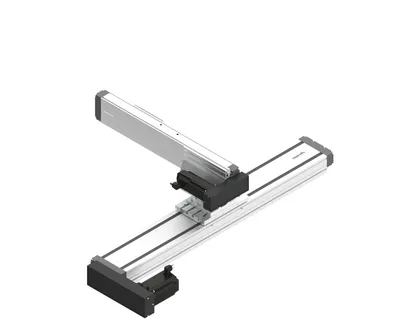

| R115854022 | 2HA-22 | 44.5 | 1050.0 | 60 mm ... 1590 mm | 50 mm ... 1050 mm |
| R115854021 | 2HA-21 | 25.0 | 725.0 | 50 mm ... 3000 mm | 50 mm ... 725 mm |
| R115854020 | 2HA-20 | 25.0 | 725.0 | 50 mm ... 1325 mm | 50 mm ... 725 mm |
| R115854011 | 2HA-11 | 13.0 | 520.0 | 50 mm ... 3000 mm | 70 mm ... 520 mm |
| R115854010 | 2HA-10 | 13.0 | 520.0 | 50 mm ... 1325 mm | 70 mm ... 520 mm |
| R115854009 | 2HA-09 | 5.0 | 485.0 | 40 mm ... 3000 mm | 135 mm ... 485 mm |
| R115854008 | 2HA-08 | 5.0 | 485.0 | 40 mm ... 600 mm | 135 mm ... 485 mm |
| R115858050 | 1HB-50 | 366.0 | — | 80 mm ... 3000 mm | — |
| R115858040 | 1HB-40 | 214.0 | — | 60 mm ... 3000 mm | — |
| R115858030 | 1HB-30 | 118.0 | — | 60 mm ... 3000 mm | — |

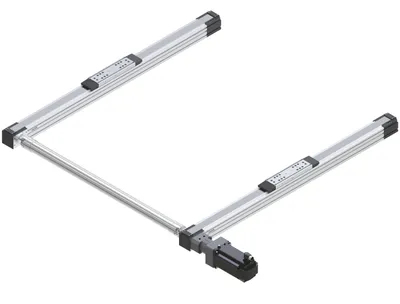

| R115858020 | 1HB-20 | 62.0 | — | 60 mm ... 3000 mm | — |
Common to all listed parts
| Note | Sizing required (LinSelect) |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: maximum permissible speed vmax | The maximum value is dependent on the selected configuration. |
| Weight [kg] | 0 |
