Multi-axis systems Parts
Compare Multi-axis systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Maximum payload mex max [kg] | Minimum travel range smin y-axis [mm] | Maximum travel range smax y-axis [mm] | Y-axis travel range (min. ... max.) |
|---|---|---|---|---|---|
| R115857041 | 2VB-41 | 61.0 | 80.0 | 3000.0 | 80 mm ... 3000 mm |

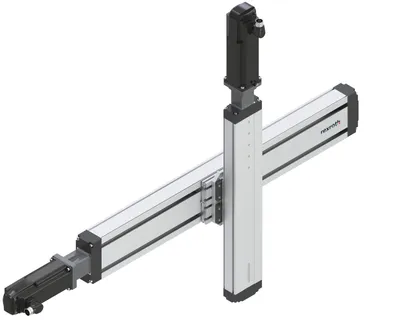

| R115857040 | 2VB-40 | 61.0 | 80.0 | 1825.0 | 80 mm ... 1825 mm |
| R115857033 | 2VB-33 | 61.0 | 60.0 | 3000.0 | 60 mm ... 3000 mm |
| R115857032 | 2VB-32 | 61.0 | 60.0 | 1590.0 | 60 mm ... 1590 mm |
| R115857031 | 2VB-31 | 32.5 | 60.0 | 3000.0 | 60 mm ... 3000 mm |
| R115857030 | 2VB-30 | 32.5 | 60.0 | 1590.0 | 60 mm ... 1590 mm |
| R115857023 | 2VB-23 | 32.5 | 50.0 | 3000.0 | 50 mm ... 3000 mm |
| R115857022 | 2VB-22 | 32.5 | 50.0 | 1325.0 | 50 mm ... 1325 mm |
| R115857021 | 2VB-21 | 7.0 | 50.0 | 3000.0 | 50 mm ... 3000 mm |
| R115857020 | 2VB-20 | 7.0 | 50.0 | 1325.0 | 50 mm ... 1325 mm |
| R115857011 | 2VB-11 | 2.0 | 40.0 | 3000.0 | 40 mm ... 3000 mm |
| R115857010 | 2VB-10 | 2.0 | 40.0 | 600.0 | 40 mm ... 600 mm |
| R115856033 | 2VA-33 | 61.0 | 60.0 | 3000.0 | 60 mm ... 3000 mm |
| R115856032 | 2VA-32 | 61.0 | 60.0 | 1590.0 | 60 mm ... 1590 mm |
| R115856031 | 2VA-31 | 32.5 | 60.0 | 3000.0 | 60 mm ... 3000 mm |
| R115856030 | 2VA-30 | 32.5 | 60.0 | 1590.0 | 60 mm ... 1590 mm |
| R115856023 | 2VA-23 | 32.5 | 50.0 | 3000.0 | 50 mm ... 3000 mm |

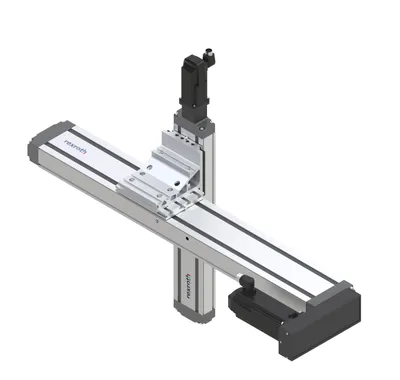

| R115856022 | 2VA-22 | 32.5 | 50.0 | 1325.0 | 50 mm ... 1325 mm |
| R115856021 | 2VA-21 | 10.0 | 50.0 | 3000.0 | 50 mm ... 3000 mm |
| R115856020 | 2VA-20 | 10.0 | 50.0 | 1325.0 | 50 mm ... 1325 mm |
| R115855061 | 2HB-61 | 205.0 | 80.0 | 2500.0 | 80 mm ... 2500 mm |
| R115855050 | 2HB-50 | 195.0 | 80.0 | 1680.0 | 80 mm ... 1680 mm |

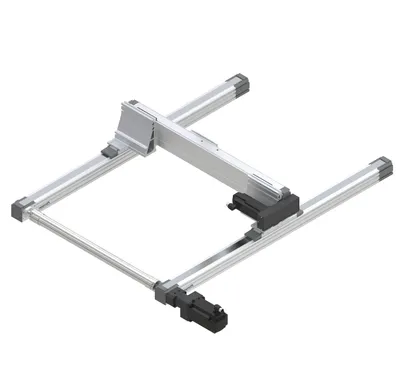

| R115855041 | 2HB-41 | 100.0 | 80.0 | 2869.0 | 80 mm ... 2869 mm |
| R115855040 | 2HB-40 | 100.0 | 130.0 | 1770.0 | 130 mm ... 1770 mm |
Common to all listed parts
| Note | Sizing required (LinSelect) |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: maximum permissible speed vmax | The maximum value is dependent on the selected configuration. |
| Weight [kg] | 0 |
