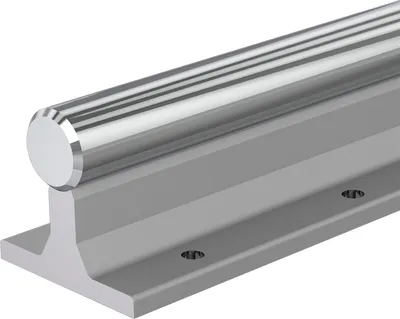

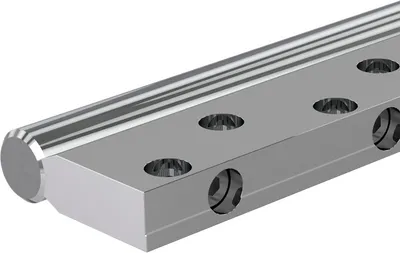

Precision steel shafts with shaft support rails Parts
























Compare Precision steel shafts with shaft support rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Tolerance grade shaft | Mass m (kg/m) [kg/m] | Dimension O1 thread x lead [mm] | Dimension O2 thread diameter | Dimension V [mm] |
|---|---|---|---|---|---|
| R101502060 | h6 | 4.1 | M6x45 | M6x16 | 15 |
| R101502000 | h6 | 4.1 | M6x45 | M6x16 | 15 |
| R102502031 | h7 | 3.8 | M6x25 | M6 | 6 |
| R102502061 | h7 | 3.8 | M6x25 | M6 | 6 |
| R102502001 | h7 | 3.8 | M6x25 | M6 | 6 |
| R102502030 | h6 | 3.8 | M6x25 | M6 | 6 |
| R102502060 | h6 | 3.8 | M6x25 | M6 | 6 |
| R102502000 | h6 | 3.8 | M6x25 | M6 | 6 |
| R101152031 | h7 | 4.1 | M6x30 | M6x16 | 6 |
| R101152061 | h7 | 4.1 | M6x30 | M6x16 | 6 |
| R101152001 | h7 | 4.1 | M6x30 | M6x16 | 6 |
| R101152030 | h6 | 4.1 | M6x30 | M6x16 | 6 |
| R101152060 | h6 | 4.1 | M6x30 | M6x16 | 6 |
| R101152000 | h6 | 4.1 | M6x30 | M6x16 | 6 |
| R101102031 | h7 | 4.1 | M6x30 | M6x16 | 6 |
| R101102061 | h7 | 4.1 | M6x30 | M6x16 | 6 |
| R101102001 | h7 | 4.1 | M6x30 | M6x16 | 6 |
| R101102030 | h6 | 4.1 | M6x30 | M6x16 | 6 |
| R101102060 | h6 | 4.1 | M6x30 | M6x16 | 6 |
| R101102000 | h6 | 4.1 | M6x30 | M6x16 | 6 |
| R101052061 | h7 | 3.8 | M6x25 | M6x16 | 6 |
| R101052031 | h7 | 3.8 | M6x25 | M6x16 | 6 |
| R101052001 | h7 | 3.8 | M6x25 | M6x16 | 6 |
| R101052060 | h6 | 3.8 | M6x25 | M6x16 | 6 |
Common to all listed parts
| Shaft diameter d [mm] | 20.0 |
| Material shaft support rails | Aluminum |
| Weight [kg] | 0 |
| Dimension M [mm] | 8.3 |
| Dimension N [mm] | 11 |
