High precision ball guide rail BSHP Parts
Compare High precision ball guide rail BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Format | Accuracy class | Guide rail cover | Number of sections |
|---|---|---|---|---|---|
| R167635336 | 35/90 | BNS - wide guide rail | H - Highly accurate | With steel caps | 6-piece |
| R167635335 | 35/90 | BNS - wide guide rail | H - Highly accurate | With steel caps | 5-piece |
| R167635334 | 35/90 | BNS - wide guide rail | H - Highly accurate | With steel caps | 4-piece |

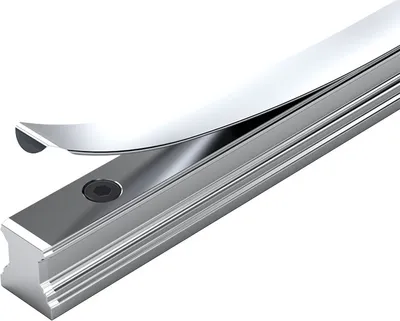

| R167635333 | 35/90 | BNS - wide guide rail | H - Highly accurate | With steel caps | 3-piece |

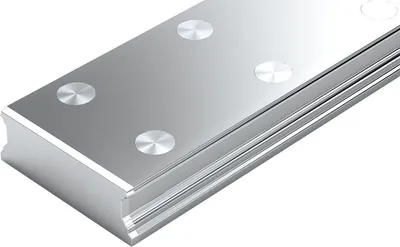

| R167635332 | 35/90 | BNS - wide guide rail | H - Highly accurate | With steel caps | 2-piece |
| R167635331 | 35/90 | BNS - wide guide rail | H - Highly accurate | With steel caps | 1-piece |
| R167530338 | 35/90 | BNS - wide guide rail | H - Highly accurate | Plastic caps | 8-piece |
| R167530337 | 35/90 | BNS - wide guide rail | H - Highly accurate | Plastic caps | 7-piece |
| R167530336 | 35/90 | BNS - wide guide rail | H - Highly accurate | Plastic caps | 6-piece |
| R167530335 | 35/90 | BNS - wide guide rail | H - Highly accurate | Plastic caps | 5-piece |
| R167530334 | 35/90 | BNS - wide guide rail | H - Highly accurate | Plastic caps | 4-piece |
| R167530333 | 35/90 | BNS - wide guide rail | H - Highly accurate | Plastic caps | 3-piece |

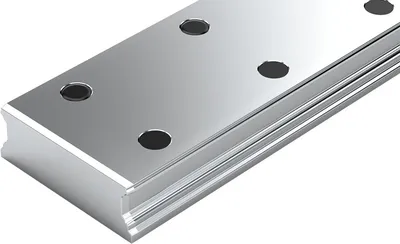

| R167530332 | 35/90 | BNS - wide guide rail | H - Highly accurate | Plastic caps | 2-piece |
| R167530331 | 35/90 | BNS - wide guide rail | H - Highly accurate | Plastic caps | 1-piece |
| R160770938 | 30 | SNS - Standard guide rail | UP - Ultra precise | Without cover strip | 8-piece |
| R160770937 | 30 | SNS - Standard guide rail | UP - Ultra precise | Without cover strip | 7-piece |
| R160770936 | 30 | SNS - Standard guide rail | UP - Ultra precise | Without cover strip | 6-piece |
| R160770935 | 30 | SNS - Standard guide rail | UP - Ultra precise | Without cover strip | 5-piece |
| R160770934 | 30 | SNS - Standard guide rail | UP - Ultra precise | Without cover strip | 4-piece |
| R160770933 | 30 | SNS - Standard guide rail | UP - Ultra precise | Without cover strip | 3-piece |
| R160770932 | 30 | SNS - Standard guide rail | UP - Ultra precise | Without cover strip | 2-piece |

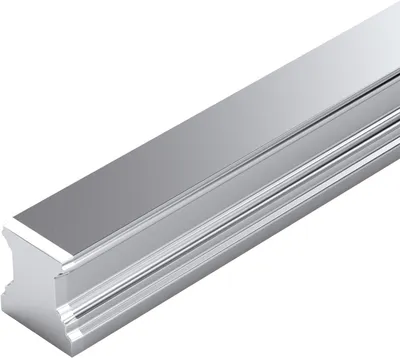

| R160770931 | 30 | SNS - Standard guide rail | UP - Ultra precise | Without cover strip | 1-piece |
| R160573938 | 30 | SNS - Standard guide rail | UP - Ultra precise | With cover strip and strip clamps | 8-piece |
| R160573937 | 30 | SNS - Standard guide rail | UP - Ultra precise | With cover strip and strip clamps | 7-piece |
Common to all listed parts
| Version | Ball rail system |
| Material (profiled rail systems) | Carbon steel |
| Number of holes nB (profiled rail systems) | 48 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 80 |
