High precision ball guide rail BSHP Parts
Compare High precision ball guide rail BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Format | Accuracy class | Guide rail cover | Number of sections |
|---|---|---|---|---|---|
| R16053C234 | 35 | SNO - guide rail without base slot | P - Precise | Plastic caps | 4-piece |
| R16053C233 | 35 | SNO - guide rail without base slot | P - Precise | Plastic caps | 3-piece |
| R16053C232 | 35 | SNO - guide rail without base slot | P - Precise | Plastic caps | 2-piece |
| R16053C231 | 35 | SNO - guide rail without base slot | P - Precise | Plastic caps | 1-piece |
| R16053D262 | 35 | SNO - guide rail without base slot | P - Precise | With cover strip and protective caps | 2-piece |
| R16053D261 | 35 | SNO - guide rail without base slot | P - Precise | With cover strip and protective caps | 1-piece |
| R167530138 | 35/90 | BNS - wide guide rail | SP - Super precise | Plastic caps | 8-piece |
| R167530137 | 35/90 | BNS - wide guide rail | SP - Super precise | Plastic caps | 7-piece |
| R167530136 | 35/90 | BNS - wide guide rail | SP - Super precise | Plastic caps | 6-piece |
| R167530135 | 35/90 | BNS - wide guide rail | SP - Super precise | Plastic caps | 5-piece |
| R167530134 | 35/90 | BNS - wide guide rail | SP - Super precise | Plastic caps | 4-piece |
| R167530133 | 35/90 | BNS - wide guide rail | SP - Super precise | Plastic caps | 3-piece |
| R167530132 | 35/90 | BNS - wide guide rail | SP - Super precise | Plastic caps | 2-piece |
| R167530131 | 35/90 | BNS - wide guide rail | SP - Super precise | Plastic caps | 1-piece |
| R167730238 | 35/90 | BNS - wide guide rail | P - Precise | Without cover strip | 8-piece |
| R167730237 | 35/90 | BNS - wide guide rail | P - Precise | Without cover strip | 7-piece |
| R167730236 | 35/90 | BNS - wide guide rail | P - Precise | Without cover strip | 6-piece |
| R167730235 | 35/90 | BNS - wide guide rail | P - Precise | Without cover strip | 5-piece |
| R167730234 | 35/90 | BNS - wide guide rail | P - Precise | Without cover strip | 4-piece |
| R167730233 | 35/90 | BNS - wide guide rail | P - Precise | Without cover strip | 3-piece |
| R167730232 | 35/90 | BNS - wide guide rail | P - Precise | Without cover strip | 2-piece |

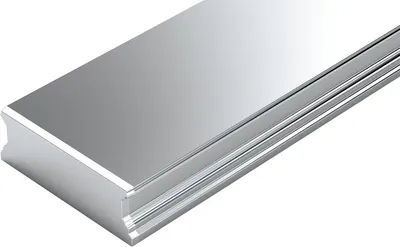

| R167730231 | 35/90 | BNS - wide guide rail | P - Precise | Without cover strip | 1-piece |
| R167635238 | 35/90 | BNS - wide guide rail | P - Precise | With steel caps | 8-piece |
| R167635237 | 35/90 | BNS - wide guide rail | P - Precise | With steel caps | 7-piece |
Common to all listed parts
| Version | Ball rail system |
| Material (profiled rail systems) | Carbon steel |
| Number of holes nB (profiled rail systems) | 48 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 80 |
| Dimension T [mm] | 80 |
