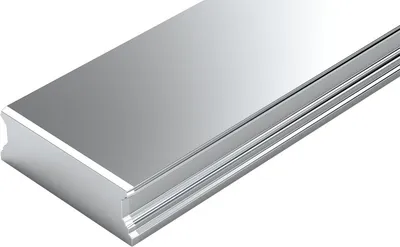

High precision ball guide rail BSHP Parts
Compare High precision ball guide rail BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accuracy class | Guide rail mounting | Guide rail cover | Number of sections | Weight [kg] |
|---|---|---|---|---|---|
| R167750432 | N - Normal | For bolting from below | Without cover strip | 2-piece | 0 |
| R167750431 | N - Normal | For bolting from below | Without cover strip | 1-piece | 0 |
| R167550438 | N - Normal | For bolting from above | Plastic caps | 8-piece | 0 |
| R167550437 | N - Normal | For bolting from above | Plastic caps | 7-piece | 0 |
| R167550436 | N - Normal | For bolting from above | Plastic caps | 6-piece | 0 |
| R167550435 | N - Normal | For bolting from above | Plastic caps | 5-piece | 0 |
| R167550434 | N - Normal | For bolting from above | Plastic caps | 4-piece | 0 |
| R167550433 | N - Normal | For bolting from above | Plastic caps | 3-piece | 0 |
| R167550432 | N - Normal | For bolting from above | Plastic caps | 2-piece | 0 |
| R167550431 | N - Normal | For bolting from above | Plastic caps | 1-piece | 2.2 |
| R167750338 | H - Highly accurate | For bolting from below | Without cover strip | 8-piece | 0 |
| R167750337 | H - Highly accurate | For bolting from below | Without cover strip | 7-piece | 0 |
| R167750336 | H - Highly accurate | For bolting from below | Without cover strip | 6-piece | 0 |
| R167750335 | H - Highly accurate | For bolting from below | Without cover strip | 5-piece | 0 |
| R167750334 | H - Highly accurate | For bolting from below | Without cover strip | 4-piece | 0 |
| R167750333 | H - Highly accurate | For bolting from below | Without cover strip | 3-piece | 0 |
| R167750332 | H - Highly accurate | For bolting from below | Without cover strip | 2-piece | 0 |
| R167750331 | H - Highly accurate | For bolting from below | Without cover strip | 1-piece | 0 |
| R167550338 | H - Highly accurate | For bolting from above | Plastic caps | 8-piece | 0 |
| R167550337 | H - Highly accurate | For bolting from above | Plastic caps | 7-piece | 0 |
| R167550336 | H - Highly accurate | For bolting from above | Plastic caps | 6-piece | 0 |
| R167550335 | H - Highly accurate | For bolting from above | Plastic caps | 5-piece | 0 |
| R167550334 | H - Highly accurate | For bolting from above | Plastic caps | 4-piece | 0 |
| R167550333 | H - Highly accurate | For bolting from above | Plastic caps | 3-piece | 0 |
Common to all listed parts
| Version | Ball rail system |
| Nominal size [mm] | 20/40 |
| Format | BNS - wide guide rail |
| Material (profiled rail systems) | Carbon steel |
| Max. length Lmax [mm] | 3836.0 |
| Minimum length Lmin [mm] | 80.0 |
| Number of holes nB (profiled rail systems) | 64 |
| Mass m (kg/m) [kg/m] | 5.3 |
