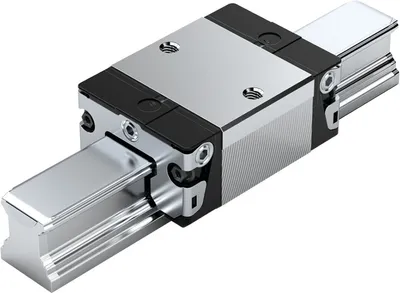

High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] | Dynamic torsional moment load capacity Mt50 [Nm] |
|---|---|---|---|---|---|
| R16667142Z | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R16667142Y | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166671423 | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166671422 | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166671421 | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R166671420 | 0.66 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R16667132Z | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R16667132Y | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166671323 | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166671322 | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166671321 | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R166671320 | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R166679423 | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166679422 | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166679421 | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R166679420 | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R166679323 | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166679322 | 0.6 | 30700.0 | 24400.0 | 26900.0 | 530.0 |
| R166679321 | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R166679320 | 0.6 | 32300.0 | 25600.0 | 28900.0 | 550.0 |
| R16517382Z | 1.1 | 46000.0 | 36500.0 | 48100.0 | 790.0 |
| R16517382Y | 1.1 | 43800.0 | 34800.0 | 44700.0 | 760.0 |
| R165173822 | 1.14 | 43800.0 | 34800.0 | 44700.0 | 760.0 |
| R165173820 | 1.1 | 46000.0 | 36500.0 | 48100.0 | 790.0 |
Common to all listed parts
| Version | Ball rail system |
| Nominal size [mm] | 30 |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Height of runner block [mm] | 35.35 |
| Height runner block with guide rail [mm] | 42.0 |
| Lubrication | Pre-lubricated, preserved |
