High-precision ball runner block BSHP Parts

Bosch Rexroth R162471823 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-X-1

Bosch Rexroth R162471822 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-X-1

Bosch Rexroth R162471821 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-X-1

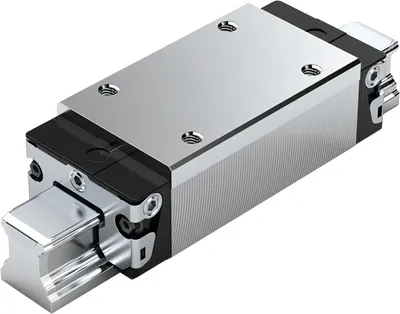

Bosch Rexroth R162471820 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-X-1

Bosch Rexroth R16247122Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-P-1

Bosch Rexroth R16247122Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-P-1

Bosch Rexroth R162471222 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-P-1

Bosch Rexroth R162471220 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-P-1

Bosch Rexroth R16247142Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth R16247142Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth R162471423 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth R162471422 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth R162471421 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth R162471420 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-N-1

Bosch Rexroth R16247132Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth R16247132Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth R162471323 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth R162471322 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth R162471321 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth R162471320 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C1-H-1

Bosch Rexroth R162479422 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C0-N-1

Bosch Rexroth R162479420 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C0-N-1

Bosch Rexroth R162479322 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C0-H-1

Bosch Rexroth R162479320 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SLH-C0-H-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Preload class	Accuracy class	Seal	Ball chain	Weight [kg]
R162471823	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	With ball chain	1.2
R162471822	C1 - Low preload	XP - Extra precise	SS - Standard seal	With ball chain	1.2
R162471821	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	Without ball chain (standard)	1.2
R162471820	C1 - Low preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	1.2
R16247122Z	C1 - Low preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	1.29
R16247122Y	C1 - Low preload	P - Precise	DS - Double-lip seal	With ball chain	1.2
R162471222	C1 - Low preload	P - Precise	SS - Standard seal	With ball chain	1.2
R162471220	C1 - Low preload	P - Precise	SS - Standard seal	Without ball chain (standard)	1.28
R16247142Z	C1 - Low preload	N - Normal	DS - Double-lip seal	Without ball chain (standard)	1.29
R16247142Y	C1 - Low preload	N - Normal	DS - Double-lip seal	With ball chain	1.2
R162471423	C1 - Low preload	N - Normal	LS - Low-friction seal	With ball chain	1.2
R162471422	C1 - Low preload	N - Normal	SS - Standard seal	With ball chain	1.27
R162471421	C1 - Low preload	N - Normal	LS - Low-friction seal	Without ball chain (standard)	1.2
R162471420	C1 - Low preload	N - Normal	SS - Standard seal	Without ball chain (standard)	1.28
R16247132Z	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	Without ball chain (standard)	1.2
R16247132Y	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	With ball chain	1.2
R162471323	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	With ball chain	1.2
R162471322	C1 - Low preload	H - Highly accurate	SS - Standard seal	With ball chain	1.2
R162471321	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	Without ball chain (standard)	1.2
R162471320	C1 - Low preload	H - Highly accurate	SS - Standard seal	Without ball chain (standard)	1.28
R162479422	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	With ball chain	1.2
R162479420	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	Without ball chain (standard)	1.29
R162479322	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	With ball chain	1.28
R162479320	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	Without ball chain (standard)	1.29

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	30
Format	SLH - slimline, long, high
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	60.0
Length of runner block [mm]	119.7
