High-precision ball runner block BSHP Parts

Bosch Rexroth

R166631320

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C1-H-1

Bosch Rexroth

R166639423

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C0-N-1

Bosch Rexroth

R166639422

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C0-N-1

Bosch Rexroth

R166639421

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C0-N-1

Bosch Rexroth

R166639420

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C0-N-1

Bosch Rexroth

R166639323

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C0-H-1

Bosch Rexroth

R166639322

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C0-H-1

Bosch Rexroth

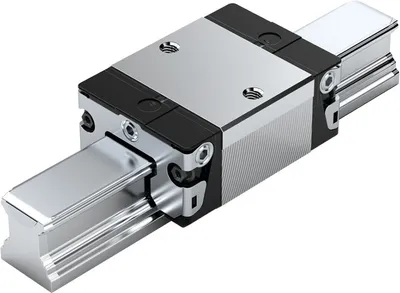

R166639321

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C0-H-1

Bosch Rexroth

R166639320

BALL RUNNER BLOCK CARBON STEEL KWD-035-SKS-C0-H-1

Bosch Rexroth

R16513382Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-X-1

Bosch Rexroth

R16513382Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-X-1

Bosch Rexroth

R165133822

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-X-1

Bosch Rexroth

R165133820

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-X-1

Bosch Rexroth

R16513392Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-U-1

Bosch Rexroth

R16513392Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-U-1

Bosch Rexroth

R165133922

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-U-1

Bosch Rexroth

R165133920

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-U-1

Bosch Rexroth

R16513312Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-S-1

Bosch Rexroth

R16513312Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-S-1

Bosch Rexroth

R165133122

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-S-1

Bosch Rexroth

R165133120

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C3-S-1

Bosch Rexroth

R16513282Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C2-X-1

Bosch Rexroth

R16513282Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C2-X-1

Bosch Rexroth

R165132822

BALL RUNNER BLOCK CARBON STEEL KWD-035-FNS-C2-X-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Preload class	Accuracy class	Weight [kg]	Dynamic load capacity C50 [N]	Dynamic load capacity C100 [N]
R166631320	C1 - Low preload	H - Highly accurate	1.01	46100.0	36600.0
R166639423	C0 - Without preload (clearance)	N - Normal	0.9	44000.0	34900.0
R166639422	C0 - Without preload (clearance)	N - Normal	0.9	44000.0	34900.0
R166639421	C0 - Without preload (clearance)	N - Normal	1.01	46100.0	36600.0
R166639420	C0 - Without preload (clearance)	N - Normal	0.9	46100.0	36600.0
R166639323	C0 - Without preload (clearance)	H - Highly accurate	0.9	44000.0	34900.0
R166639322	C0 - Without preload (clearance)	H - Highly accurate	0.9	44000.0	34900.0
R166639321	C0 - Without preload (clearance)	H - Highly accurate	0.9	46100.0	36600.0
R166639320	C0 - Without preload (clearance)	H - Highly accurate	1	46100.0	36600.0
R16513382Z	C3 - High preload	XP - Extra precise	1.7	65300.0	51800.0
R16513382Y	C3 - High preload	XP - Extra precise	1.6	62200.0	49400.0
R165133822	C3 - High preload	XP - Extra precise	1.6	62200.0	49400.0
R165133820	C3 - High preload	XP - Extra precise	1.7	65300.0	51800.0
R16513392Z	C3 - High preload	UP - Ultra precise	1.6	65300.0	51800.0
R16513392Y	C3 - High preload	UP - Ultra precise	1.6	62200.0	49400.0
R165133922	C3 - High preload	UP - Ultra precise	1.7	62200.0	49400.0
R165133920	C3 - High preload	UP - Ultra precise	1.6	65300.0	51800.0
R16513312Z	C3 - High preload	SP - Super precise	1.6	65300.0	51800.0
R16513312Y	C3 - High preload	SP - Super precise	1.6	62200.0	49400.0
R165133122	C3 - High preload	SP - Super precise	1.6	62200.0	49400.0
R165133120	C3 - High preload	SP - Super precise	1.7	65300.0	51800.0
R16513282Z	C2 - Medium preload	XP - Extra precise	1.6	65300.0	51800.0
R16513282Y	C2 - Medium preload	XP - Extra precise	1.6	62200.0	49400.0
R165132822	C2 - Medium preload	XP - Extra precise	1.6	62200.0	49400.0

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	35
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Height of runner block [mm]	40.4
Height runner block with guide rail [mm]	48.0
Lubrication	Pre-lubricated, preserved
