High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] | Dynamic torsional moment load capacity Mt50 [Nm] |
|---|---|---|---|---|---|
| R162431423 | 2.1 | 80100.0 | 63600.0 | 108000.0 | 1730.0 |
| R162431422 | 2.19 | 80100.0 | 63600.0 | 108000.0 | 1730.0 |
| R162431421 | 2.1 | 84000.0 | 66700.0 | 116000.0 | 1810.0 |
| R162431420 | 2.19 | 84000.0 | 66700.0 | 116000.0 | 1810.0 |
| R16243132Z | 2.1 | 84000.0 | 66700.0 | 116000.0 | 1810.0 |
| R16243132Y | 2.1 | 80100.0 | 63600.0 | 108000.0 | 1730.0 |
| R162431323 | 2.1 | 80100.0 | 63600.0 | 108000.0 | 1730.0 |

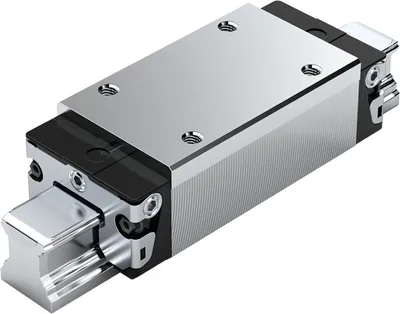

| R162431322 | 2.16 | 80100.0 | 63600.0 | 108000.0 | 1730.0 |
| R162431321 | 2.1 | 84000.0 | 66700.0 | 116000.0 | 1810.0 |
| R162431320 | 2.18 | 84000.0 | 66700.0 | 116000.0 | 1810.0 |
| R162439422 | 2.18 | 80100.0 | 63600.0 | 108000.0 | 1730.0 |
| R162439420 | 2.23 | 84000.0 | 66700.0 | 116000.0 | 1810.0 |
| R162439320 | 2.1 | 84000.0 | 66700.0 | 116000.0 | 1810.0 |
| R16663142Z | 0.9 | 46100.0 | 36600.0 | 49300.0 | 1000.0 |
| R16663142Y | 0.9 | 44000.0 | 34900.0 | 45800.0 | 950.0 |

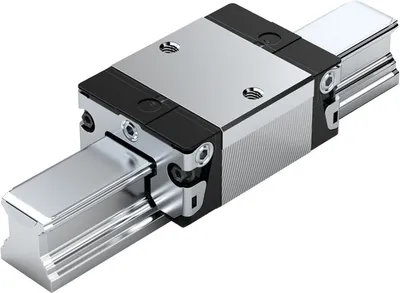

| R166631423 | 0.9 | 44000.0 | 34900.0 | 45800.0 | 950.0 |
| R166631422 | 0.9 | 44000.0 | 34900.0 | 45800.0 | 950.0 |
| R166631421 | 0.9 | 46100.0 | 36600.0 | 49300.0 | 1000.0 |
| R166631420 | 0.9 | 46100.0 | 36600.0 | 49300.0 | 1000.0 |
| R16663132Z | 0.9 | 46100.0 | 36600.0 | 49300.0 | 1000.0 |
| R16663132Y | 0.9 | 44000.0 | 34900.0 | 45800.0 | 950.0 |
| R166631323 | 0.9 | 44000.0 | 34900.0 | 45800.0 | 950.0 |
| R166631322 | 0.9 | 44000.0 | 34900.0 | 45800.0 | 950.0 |
| R166631321 | 0.9 | 46100.0 | 36600.0 | 49300.0 | 1000.0 |
Common to all listed parts
| Version | Ball rail system |
| Nominal size [mm] | 35 |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 70.0 |
| Lubrication | Pre-lubricated, preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
